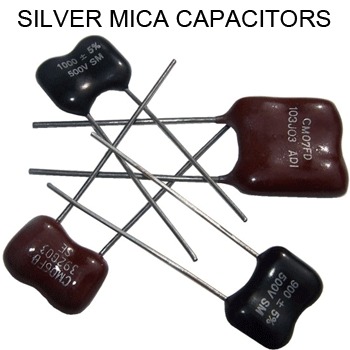

  Silver Mica Capacitors

Silver Mica Capacitors

Manufactured from selected Indian ruby muscovite having optimum electrical characteristics. Copper-clad steel leads finished with a solder coating for excellent solderability. Epoxy dipped for superior heat, moisture, vibration and solvent resistance. These capacitors work well in the signal position, also feedback networks, RIAA networks and tone control networks. Used heavily in guitars and guitar amps too. High reliability and capacitance stability. Meets specifications of MIL-C-5 and RS-153 and ISO 9002 certified. .

Capacitance Values: 1pF - 10000pF
Voltage Values: 500Vdc


Technical specifications:
temperature range: -55 to +150C degrees C
capacitance tolerance: +/- 5%


to the shop

Silver Mica Capacitors
click for bigger product piccode: SMC-...
Order Code capacitance / voltage body dimension D * H * W(mm) pitch / lead diameter(mm) Price exc. vat
CAPACITOR TYPE - Silver Mica
SMC-010 1pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-020 2pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-030 3pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-040 5pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-050 10pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-060 12pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-070 15pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-080 18pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-090 20pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-100 22pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-110 25pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-120 27pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-130 30pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-140 33pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-150 39pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-160 40pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-170 47pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-180 50pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-190 56pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-200 68pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-210 70pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-220 82pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-230 100pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-240 110pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-250 120pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-260 150pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-270 180pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-280 200pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-290 220pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-300 250pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-310 270pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-320 300pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-330 330pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-340 350pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-350 360pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-360 390pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-370 400pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-380 470pF / 500V 4 * 8 * 11 6 / 0.6 £2.00
SMC-390 500pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-400 510pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-410 560pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-420 600pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-430 620pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-440 680pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-450 700pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-460 750pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-470 800pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-480 820pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-490 900pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-500 910pF / 500V 5 * 13 * 16 8 / 0.6 £2.00
SMC-510 1000pF / 500V 5 * 13 * 16 8/ 0.6 £2.00
SMC-520 1200pF / 500V 6 * 12 * 17 9 / 0.6 £2.00
SMC-530 1350pF / 500V 6 * 12 * 17 9/ 0.6 £2.00
SMC-540 1500pF / 500V 6 * 12 * 17 9 / 0.6 £2.00
SMC-550 1970pF / 500V 6 * 12 * 17 9/ 0.6 £2.00
SMC-560 2000pF / 500V 6 * 12 * 17 9 / 0.6 £2.00
SMC-570 2200pF / 500V 6 * 12 * 17 9/ 0.6 £2.00
SMC-580 2400pF / 500V 6 * 12 * 17 9 / 0.6 £2.00
SMC-590 2500pF / 500V 6 * 12 * 17 9/ 0.6 £2.00
SMC-600 3000pF / 500V 6 * 12 * 17 9 / 0.6 £2.00
SMC-610 3600pF / 500V 6 * 12 * 17 9/ 0.6 £2.00
SMC-620 3900pF / 500V 6 * 12 * 17 9 / 0.6 £2.00
SMC-630 4000pF / 500V 6 * 12 * 17 9/ 0.6 £2.09
SMC-640 4700pF / 500V 6 * 12 * 17 9 / 0.6 £3.84
SMC-650 5000pF / 500V 6 * 12 * 17 9/ 0.6 £3.93
SMC-660 10000pF / 500V 8 * 22 * 20 9 / 0.6 NO STOCK
