Allen Bradley logo   Allen Bradley Carbon Composite Resistors

After a long search we have finally acquired huge stocks of Allen Bradley resistors. So hificollective are proud to offer you a broad range of values of the 0.5 watt, 1 watt and 2 watts.

For many many years these carbon composite resistors from the States have been held in high regard for hi-fi and for guitar amp use. Their natural organic tone is truely sublime. Unfortunately, production stopped in the 1990s and ever since then the stocks have been diminishing fast.

These "hot-molded carbon" resistors offer the simpliest of concepts for a resistor design. They ffectively consist of a solid cylindrical carbon resistive element with leads embedded at each end. Making them incredibly rugged and highly reliable, together with their non-magnetic and non-inductive characteristics these little gems are remarkable in performance and sound.

If you pay close attention to the "Explaination of Part Numbers" diagram below you will see that there are various parts numbers employed for these resistors - engineers love their part numbers!. Firstly we have the Allen Bradley code (industrial type designation), consisting of 6 digits, this is what we use as the basis for our coding. The 0.5 watt codes start with EB, the 1 watt with GB and the 2 watts with HB. These have their equivalent Military type designation that start with RC and then you have the Military Grade-S designation, that start with RCR. These are the creme de creme of the Allen Bradleys, pls note we have ended our part number with R to denote this type. You also need to know that they have two resistive tolerances, 5% and 10%. Please note that these are NOS resistors and the actual true tolerances will be slightly more - please read the "special treatment" paragraph below on this.

Follow this sequence when purchasing if you have a choice, the best resistor are at the top of the list. The RCR code that has a "*" at the end means it is not a true RCR type. The partial code is given for those who are searching with part numbers.

  • HB1805R: 18R 2W Allen Bradley 5%, RC42GF180J, RCR42G180JS
  • HB1805: 18R 2W Allen Bradley 5%, RC42GF180J, RCR42G180J*
  • HB1801R: 18R 2W Allen Bradley 10%, RC42GF180K, RCR42G180KS
  • HB1801: 18R 2W Allen Bradley 10%, RC42GF180K, RCR42G180K*



Allen Bradley 3 original boxes
click for bigger product piccode: EB..... (0.5w)  GB..... (1w)  HB..... (2w)

Allen Bradley resistors
click for bigger product piccode: EB..... (0.5w)  GB..... (1w)  HB..... (2w)
to the shop

read the data sheet EXPLANATION OF PART NUMBERS & RESISTOR COLOUR
CODE CONVERSION TABLE


read the data sheet ALLEN BRADLEY CHARACTERISTICS


Allen Bradley Carbon Composite
2 Watt Resistors: HB, RC42 & RCR42 Range -

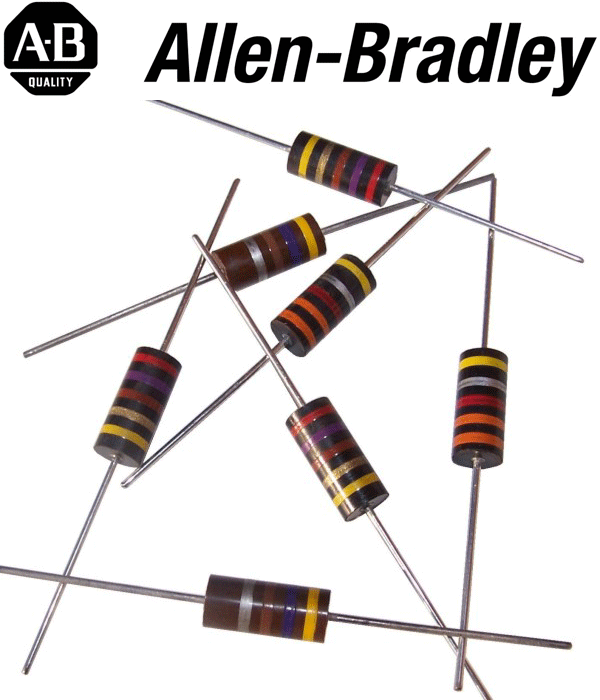

Allen Bradley 2 watt resistors
click for bigger product picHB..... (2w)

DIMENSIONS:
  BODY: diameter: 8mm, length: 18mm
  LEAD: diameter: 1mm, length: 38mm


   price (1 off): £1.48 + vat

to the shop




Allen Bradley 2 watt resistors
click for bigger product picHB..... (2w)

Order Code Resistance Order Code Resistance Order Code Resistance Order Code Resistance
ALLEN BRADLEY - HB, RC42, RCR42 TYPE, 2W carbon composite resistors - (2R2=2.2ohm, 1K2=1200ohms, 1M=1000000ohms)
HB1001R 10R HB3615 360R HB8221 8K2 HB7545 750K
HB1205 12R HB3915 390R HB8225 8K2 HB8245 820K
HB1305 13R HB4315 430R HB9125 9K1 HB9145 910K
HB1501 15R HB4711 470R HB1031 10K HB1055R 1M
HB1501R 15R HB4711R 470R HB1035R 10K HB1155 1M1
HB1605R 16R HB4715 470R HB1031R 10K HB1251 1M2
HB1801 18R HB5115R 510R HB1135 11K HB1255 1M2
HB1805 18R HB1615 560R HB1231 12K HB1255 1M2
HB1805R 18R HB5611 560R HB1235 12K HB1355 1M3
HB2201 22R HB6215 620R HB2035 20K HB1551 1M5
HB2205 22R HB7515 750R HB2235 22K HB1555 1M5
HB2405R 24R HB8215 820R HB2435 24K HB1555R 1M5
HB2701 27R HB9115 910R HB2735 27K HB1655 1M6
HB2705 27R HB1021 1K HB3035 30K HB1851 1M8
HB3005 30R HB1125 1K1 HB3045 30K HB1855 1M8
HB3301 33R HB1125R 1K1 HB3335 33K HB2055 2M2
HB3305 33R HB1221 1K2 HB3335R 33K HB2251 2M2
HB3305R 33R HB1225 1K2 HB3931 39K HB2255 2M2
HB3605 36R HB1225R 1K2 HB3935 39K HB2455 2M4
HB3605R 36R HB1325 1K3 HB4731 47K HB2755 2M7
HB3901 39R HB1521 1K5 HB5635 56K HB2755R 2M7
HB3905 39R HB1525 1K5 HB6235 62K HB3055 3M3
HB4305 43R HB1525R 1K5 HB6835 68K HB3355 3M3
HB5105 51R HB1625 1K6 HB8235 82K HB3655 3M6
HB5601 56R HB1821 1K8 HB1041 100K HB3951 3M9
HB5605 56R HB1825 1K8 HB1145 110K HB3955 3M9
HB6205 62R HB2025 2K HB1241 120K HB4355 4M3
HB6801 68R HB2025R 2K HB1345 130K HB4751 4M7
HB6805 68R HB2221 2K2 HB1541 150K HB5155 5M1
HB6805R 68R HB2225 2K2 HB1645 160K HB5651 5M6
HB7505 75R HB2721 2K7 HB1841 180K HB5655 5M6
HB7505R 75R HB2725 2K7 HB1845R 180K HB6255 6M2
HB8205 82R HB3025 3K HB2241 220K HB6851 6M8
HB9105 91R HB3321R 3K3 HB2241R 220K HB6855 6M8
HB1015R 100R HB3325 3K3 HB2445 240K HB7555 7M5
HB1115 110R HB3625 3K6 HB2745 270K HB7555R 7M5
HB1205 12R HB3921 3K9 HB3341 330K HB8251 8M2
HB1215 120R HB3925 3K9 HB3345R 330K HB8255 8M2
HB1315 130R HB4325 4K3 HB3645 360K HB9155 9M1
HB1515R 150R HB4721 4K7 HB3941 390K HB1061 10M
HB1815 180R HB4721R 4K7 HB3945 390K HB1061R 10M
HB2015 200R HB4725 4K7 HB4145 410K HB1265 12M
HB2211 220R HB5621 5K6 HB4745 470K HB1565 15M
HB2215 220R HB5625 5K6 HB5145 510K HB1665 16M
HB2415 240R HB5625R 5K6 HB5641 560K HB1865 18M
HB2711 270R HB6225 6K2 HB5645 560K HB2065 20M
HB2715 270R HB6821 6K8 HB6245 620K HB3365 33M
HB2715R 270R HB6825 6K8 HB6841 680K HB5165 51M
HB3015 300R HB7525 7K5 HB6845R 680K HB5265 51M
HB3315 330R




Allen Bradley Carbon Composite
1 Watt Resistors: GB, RC32 & RCR32 Range -


Allen Bradley 1 watt resistors
click for bigger product picGB..... (1w)

DIMENSIONS:
  BODY: diameter: 6mm, length: 15mm
  LEAD: diameter: 0.8mm, length: 38mm


   price (1 off): £0.90 + vat

to the shop




Allen Bradley 1 watt resistors
click for bigger product picGB..... (1w)

Order Code Resistance Order Code Resistance Order Code Resistance Order Code Resistance
ALLEN BRADLEY - GB, RC32, RCR32 TYPE, 1W carbon composite resistors - (2R2=2.2ohm, 1K2=1200ohms, 1M=1000000ohms)
GB12G1 1R2 GB1115R 110R GB5621 5K6 GB3045 300K
GB18G5 1R8 GB1211 120R GB5625 5K6 GB3045R 300K
GB20G5 2R GB1215 120R GB5625R 5K6 GB3341 330K
GB22G5 2R2 GB1215R 120R GB6225 6K2 GB3345 330K
GB27G5 2R7 GB1515 150R GB6821 6K8 GB3645 360K
GB30G5 3R GB1615 160R GB6825 6K8 GB3645R 360K
GB33G5 3R3 GB1615R 160R GB7525 7K5 GB3941 390K
GB36G5 3R6 GB1811 180R GB8221 8K3 GB3945 390K
GB39G5 3R9 GB1815 180R GB8225 8K2 GB4345 430K
GB43G5 4R3 GB1815R 180R GB8225R 8K2 GB4741 470K
GB47G1 4R7 GB2015 200R GB9125 9K1 GB4745 470K
GB47G1R 4R7 GB2211 220R GB9125R 9K1 GB5145 510K
GB47G5 4R7 GB2215 220R GB1035 10K GB5641 560K
GB56G5 5R6 GB2415 240R GB1135 11K GB5645 560K
GB56G5R 5R6 GB2415R 240R GB1231 12K GB5645R 560K
GB62G5 6R2 GB2711 270R GB1235R 12K GB6245R 620K
GB68G1 6R8 GB2715 270R GB1335 13K GB7545 750K
GB68G5 6R8 GB2715R 270R GB1531 15K GB8241 820K
GB68G5R 6R8 GB3015 300R GB1535 15K GB8245R 820K
GB75G5 7R5 GB3311 330R GB1635 16K GB9145 910K
GB82G1 8R2 GB3315 330R GB1831 18K GB1065 1M
GB82G5 8R2 GB3315R 330R GB1835 18K GB1155 1M1
GB91G5 9R1 GB3615 360R GB2035 20K GB1165 1M1
GB1005 10R GB3915 390R GB2231 22K GB1251 1M2
GB1005R 10R GB3915R 390R GB2231R 22K GB1255 1M2
GB1105 11R GB4315 430R GB2235 22K GB1551 1M5
GB1201 12R GB5115 510R GB2731 27K GB1555 1M5
GB1205 12R GB5615 560R GB2735 27K GB1555R 1M5
GB1205R 12R GB5615R 560R GB3035 30K GB1565 1M5
GB1505 15R GB6215 620R GB3331 33K GB1655 1M6
GB1505R 15R GB6215R 620R GB3335 33K GB1855 1M8
GB1605 16R GB6811 680R GB3635 36K GB2255 2M2
GB1801 18R GB6811R 680R GB3935 39K GB2251 2M2
GB1805R 18R GB6815 680R GB4335 43K GB2755 2M2
GB1805 18R GB7515 750R GB4731 47K GB2455 2M4
GB2201 22R GB8211 820R GB4735 47K GB2751 2M7
GB2205 22R GB8215 820R GB5135 51K GB3055 3M
GB2205R 22R GB8215R 820R GB5631 56K GB3351 3M3
GB2405 24R GB9115 910R GB5635 56K GB3355 3M3
GB2701 27R GB1021 1K GB6235 62K GB3655 3M6
GB2705 27R GB1025 1K GB6235R 62K GB3955 3M9
GB2705R 27R GB1125 1K1 GB6831 68K GB4355 4M3
GB3005 30R GB1221 1K2 GB7535 75K GB4751 4M7
GB3301 33R GB1325 1K3 GB7535R 75K GB4755 4M7
GB3305 33R GB1325 1K3 GB8231 82K GB5155 5M1
GB3305R 33R GB1521 1K5 GB8235 82K GB5655 5M6
GB3605 36R GB1525 1K5 GB8235R 82K GB6255 5M2
GB3905 39R GB1625 1K6 GB9135 91K GB6851 6M8
GB3905R 39R GB1821 1K8 GB1041 100K GB6855 6M8
GB4305 43R GB1825 1K8 GB1045 100K GB7555 7M5
GB4701 47R GB1825 1K8 GB1045R 100K GB8251 8M2
GB4705 47R GB2025 2K GB1145 110K GB8255 8M2
GB4705R 47R GB2221 2K2 GB1241 120K GB9155 9M1
GB5105 51R GB2225 2K2 GB1245 120K GB1061 10M
GB5601 56R GB2225R 2K2 GB1345 130K GB1065 10M
GB5605R 56R GB2425 2K4 GB1645R 160K GB1065R 10M
GB6205 62R GB2721 2K7 GB1841 180K GB1261 12M
GB6205R 62R GB2725 2K7 GB1845 180K GB1565 15M
GB6801 68R GB2725R 2K7 GB1845R 180K GB1665 16M
GB6805 68R GB3025 3K GB2045 200K GB2065 20M
GB6805R 68R GB3321 3K3 GB2045R 200K GB2065R 20M
GB7505 75R GB3325 3K3 GB2245 220K GB2265 22M
GB8205R 82R GB3625 3K6 GB2245R 220K GB4761 47M
GB9105 91R GB3921 3K9 GB2445 240K GB4765 47M
GB9105R 91R GB3925 3K9 GB2741 270K GB5165 51M
GB1015 100R GB3925R 3K9 GB2745 270K GB1075 100M
GB1115 110R GB4721 4K7 GB2745R 270K




Allen Bradley Carbon Composite
0.5 Watt Resistors: EB, RC20 & RCR20 Range -


Allen Bradley 0.5 watt resistors
click for bigger product picEB..... (0.5w)

DIMENSIONS:
  BODY: diameter: 3.5mm, length: 7mm
  LEAD: diameter: 0.6mm, length: 38mm


  price (1 off): £0.37 + vat

to the shop




Allen Bradley 0.5 watt resistors
click for bigger product picEB..... (0.5w)

Order Code Resistance Order Code Resistance Order Code Resistance Order Code Resistance
ALLEN BRADLEY - EB, RC20, RCR20 TYPE, 0.5W carbon composite resistors - (2R2=2.2ohm, 1K2=1200ohms, 1M=1000000ohms)
EB10G1 1R0 EB1115 110R EB1035 10K EB9145 910K
EB11G5 1R1 EB1215 120R EB1035R 10K EB1051R 1M
EB12G5 1R2 EB1215R 120R EB1135 11K EB1055 1M
EB12G5R 1R2 EB1315 130R EB1235 12K EB1055R 1M
EB13G5 1R3 EB1515R 150R EB1335 13K EB1155 1M1
EB15G5 1R5 EB1615 160R EB1535R 15K EB1255 1M2
EB16G5 1R6 EB1811 180R EB1635 16K EB1355 1M3
EB18G1 1R8 EB2015R 200R EB1835 18K EB1551 1M5
EB22G1R 2R2 EB2211 220R EB2735 27K EB1555 1M5
EB22G1 2R2 EB2215 220R EB3035 30K EB1555R 1M5
EB22G5 2R2 EB2215R 220R EB3331 33K EB1561R 15M
EB24G5 2R4 EB2415 240R EB3335 33K EB1655 1M6
EB27G1 2R7 EB2415R 240R EB3635 36K EB1851 1M8
EB27G5 2R7 EB2711 270R EB3931 39K EB1855 1M8
EB33G5 3R3 EB2715R 270R EB3935 39K EB1855R 1M8
EB33G5R 3R3 EB3015 300R EB4335 43K EB2055 2M
EB36G5 3R6 EB3615 360R EB5135 51K EB2251 2M2
EB39G1 3R9 EB4711 470R EB5631 56K EB2255 2M2
EB39G5 3R9 EB4715 470R EB5635 56K EB2255 2M2
EB43G5 4R3 EB4715R 470R EB6235 62K EB2751 2M7
EB51G5 5R1 EB5115 510R EB6831 68K EB2755 2M7
EB56G5 5R6 EB5615 560R EB6835 68K EB3055 3M
EB62G5 6R2 EB6215 620R EB9135 91K EB3351 3M3
EB68G5 6R8 EB6811 680R EB9135R 91K EB3355 3M3
EB75G5 7R5 EB6815 680R EB1041 100K EB3355R 3M3
EB91G5 9R1 EB6815R 680R EB1045R 100K EB3655 3M6
EB1105 11R EB7515 750R EB1145 110K EB3951 3M9
EB1205 12R EB8211 820R EB1241 120K EB3955 3M9
EB1305 13R EB8215 820R EB1245 120K EB4355 4M3
EB1505 15R EB9115 910R EB1245R 120K EB4751 4M7
EB1605 16R EB1021 1K EB1541 150K EB4755 4M7
EB1805 18R EB1221 1K2 EB1545 150K EB5645R 5M6
EB2005 20R EB1225 1K2 EB1645 160K EB5651 5M6
EB2405 24R EB1325 1K3 EB1845 180K EB5655 5M6
EB2705 27R EB1521 1K5 EB1845R 180K EB6255 6M2
EB2705R 27R EB1525 1K5 EB2045 200K EB6855 6M8
EB3005 30R EB1525R 1K5 EB2241 220K EB7555 7M5
EB3305 33R EB1625 1K6 EB2245 220K EB8251 8M2
EB3305R 33R EB1821 1K8 EB2445 240K EB8255 8M2
EB3605 36R EB1825 1K8 EB2741 270K EB9155 9M1
EB3605R 36R EB3025R 3K EB2745 270K EB1061 10M
EB3905 39R EB3325 3K3 EB3045 300K EB1261 12M
EB3905R 39R EB3625 3K6 EB3341 330K EB1265 12M
EB4305 43R EB3921 3K9 EB3345 330K EB1365 13M
EB4305 43R EB3925 3K9 EB3345R 330K EB1565 15M
EB5105R 51R EB4325 4K3 EB3645 360K EB1665 16M
EB5605 56R EB5125 5K1 EB3941 390K EB1861 18M
EB5605R 56R EB5125R 5K1 EB3945 390K EB1865 18M
EB6205 62R EB5621 5K6 EB4345 430K EB1865R 18M
EB6801 68R EB5625 5K6 EB4745 470K EB2261 22M
EB6805 68R EB6225 6K2 EB6841 680K EB2261R 22M
EB7505 75R EB6821 6K8 EB6845 680K EB2265 22M
EB8201 82R EB6825 6K8 EB6845R 680K EB2765 27M
EB8205 82R EB7525 7K5 EB7545 750K EB3365 33M
EB8205R 82R EB8225 8K2 EB8241 820K EB3965 39M
EB9105 91R EB9125 9K1 EB8245 820K EB5165 51M
EB1011 100R EB1031 10K EB8245R 820K EB6265 62M
