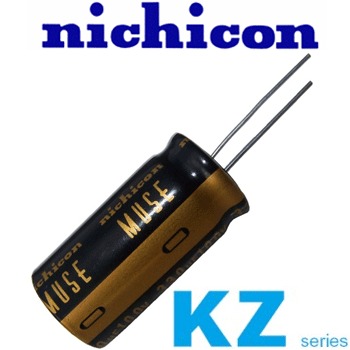

Nichicon KZ type electrolytic capacitors   Nichicon KZ type electrolytic capacitors

The Nichicon Muse KZ type electrolyitc are Nichicon`s premium grade type, specifically designed for audio. Reasonably priced and incredibly popular in the DIY community, a great alternative from Black Gate and Elnas.

Technical specifications:

  • body type: Radial
  • Category Temperature Range: –40 to +85°C
  • Rated Voltage Range: 25 to 100V
  • Rated Capacitance Range: 10 to 1000µF
  • Capacitance Tolerance: ±20% at 120Hz, 20°C

read the data sheet Nichicon KZ type data sheet


to the shop

Nichicon KZ type electrolytic capacitors
click for bigger product piccode: NKZ-...


Order Code Capacitance (μF) /
Voltage (dc)		 Dimensions (mm)
(depth x height)		 Price exc. vat Nichicon code
NICHICON Electrolytic Capacitor - KZ Type
NKZ-020 10uF 100V 8 x 11.5 £0.50 UKZ2A100MPM
NKZ-030 22uF 50V 8 x 11.5 £0.42 UKZ1H220MPM
NKZ-040 22uF 100V 10 x 16 £0.56 UKZ2A220MPM
NKZ-050 33uF 25V 8 x 11.5 £0.18 UKZ1E330MPM
NKZ-060 33uF 50V 10 x 12.5 £0.36 UKZ1H330MPM
NKZ-070 33uF 100V 10 x 20 £0.60 UKZ2A330MPM
NKZ-080 47uF 25V 10 x 12.5 £0.24 UKZ1E470MPM
NKZ-090 47uF 50V 10 x 16 £0.32 UKZ1H470MPM
NKZ-100 47uF 100V 12.5 x 20 £0.67 UKZ2A470MHM
NKZ-110 100uF 25V 10 x 16 £0.33 UKZ1E101MPM
NKZ-120 100uF 50V 12.5 x 20 £0.53 UKZ1H101MHM
NKZ-130 100uF 100V 16 x 25 £0.74 UKZ2A101MHM
NKZ-140 220uF 25V 12.5 x 20 £0.39 UKZ1E221MHM
NKZ-150 220uF 50V 16 x 25 £0.46 UKZ1H221MHM
NKZ-160 220uF 100V 16 x 35.5 £1.09 UKZ2A221MHM
NKZ-170 330uF 25V 12.5 x 25 £0.46 UKZ1E331MHM
NKZ-180 330uF 50V 16 x 31.5 £0.84 UKZ1H331MHM
NKZ-190 330uF 100V 18 x 35.5 £1.59 UKZ2A331MHM
NKZ-200 470uF 25V 16 x 25 £0.60 UKZ1E471MHM
NKZ-210 470uF 50V 16 x 35.5 £0.95 UKZ1H471MHM
NKZ-220 1000 uF 25V 16 x 35.5 £0.95 UKZ1E102MHM
NKZ-230 1000uF 50V 18 x 40 £0.116 UKZ1H102MHM
