Mundorf MCoil AirCore Copper Foil Paper coils, VLCU range
Click to Zoom
MCoil VLCU Paper Copper Film Inductors. Ultra-soft Abacá Esparto special paper as a dielectric medium dip-impregnated with viscoplastic insulation resin.
High mechanical damping of the coil vibrations. Almost free of microphonic effect, even without housing. Extremely calm acoustic pattern and the finest micro-dynamics.
Available in,

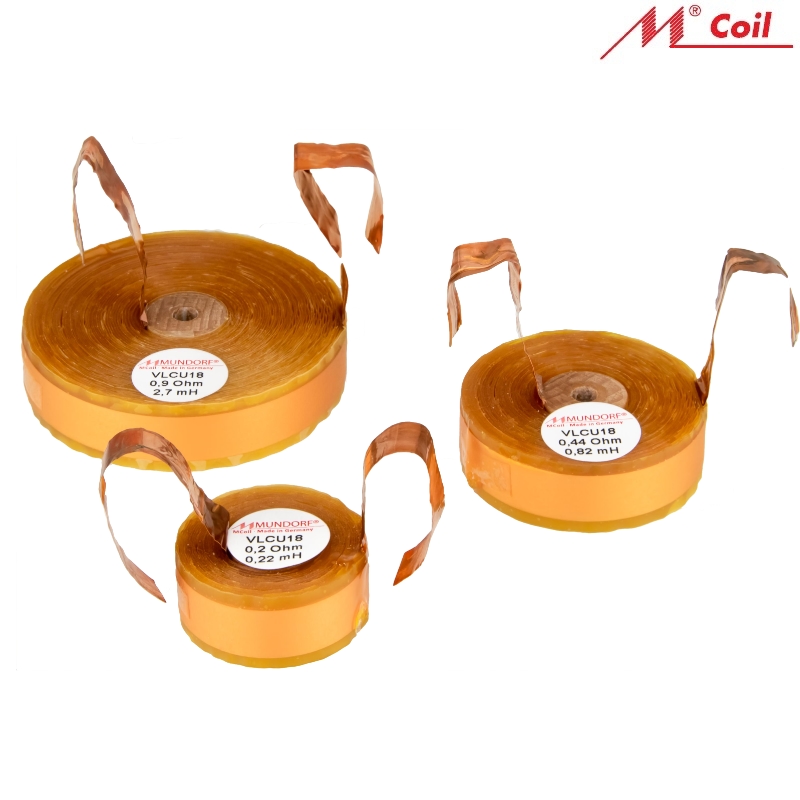

- VLCU18, 0.07mm thickness of foil, overall height 11.5mm
- VLCU15, 0.07mm thickness of foil, overall height 22mm
- VLCU12, 0.07mm thickness of foil, overall height 44mm
- VLCU9, 0.1mm thickness of foil, overall height 70mm
Discontinued Ranges
- Mundorf VLCU14, 0.07mm thickness of foil, overall height 28mm
- Mundorf VLCU10, 0.07mm thickness of foil, overall height 70mm
Please note that due to the large range of values and types of Mundorf coils, they are made to order, so please allow 21 working days for dispatch.
