Glasshouse Ladder Stepped Attenuator (stereo version)

Glasshouse Ladder Stepped Attenuator (stereo version)

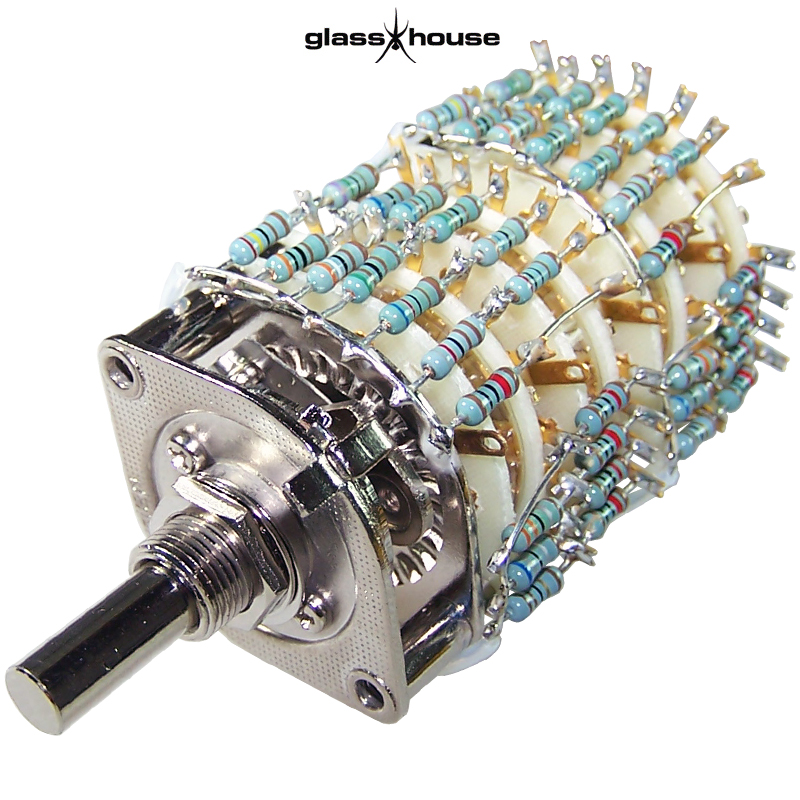

As an alternative to the shunt, series type of stepped attenuator we now offer a ladder type of stepped attenuators. This is where 2 resistor and 2 switch contacts are used per step, making up a unique combination of resistors per step that add up to the impedance of the stepped attenuator you use. Effectively a voltage divider network.

We offer a the stereo version built on either the Seiden, 4 pole 23 way or the Elma 4 pole 24 way switch or the all new Blore Edwards 2 pole 23 way, using either the Takman Metal or Carbon resistors in 0.25W or 0.5W ratings. 10K, 25K, 50K, 100K and 250K available. Built up or in kit form. Although a higher price and with a higher resistor count than the Shunt type, the ladder type provide a constant impedance through out the entire volume range. The down side is you have to use another switch contact.

PRICE (1 off) excluding VAT+P&P
10K, 25K, 50K, 100K, 250K

Blore Edwards switch  + Takman 0.25W carbon resistors - £106.31 (kit) - £166.31 (built)
Blore Edwards  + Takman 0.5W carbon resistors - £120.59 (kit) - £180.59 (built)
Blore Edwards  + Takman 0.25W metal resistors - £112.19 (kit) - £172.19 (built)
Blore Edwards  + Takman 0.5W metal resistors - £128.99 (kit) - £188.99 (built)

Seiden switch  + Takman 0.25W carbon resistors - £156.12 (kit) - £216.12 (built)
Seiden switch  + Takman 0.5W carbon resistors - £170.40 (kit) - £230.40 (built)
Seiden switch  + Takman 0.25W metal resistors - £162.00(kit) - £222.00 (built)
Seiden switch  + Takman 0.5W metal resistors - £178.80(kit) - £238.00 (built)

Elma switch  + Takman 0.25W carbon resistors - £180.64 (kit) - £240.64 (built)
Elma switch  + Takman 0.5W carbon resistors - £195.60 (kit) - £255.60 (built)
Elma switch  + Takman 0.25W metal resistors - £186.60 (kit) - £246.60 (built)
Elma switch  + Takman 0.5W metal resistors - £204.40 (kit) - £264.40 (built)

As part of the kit version, we supply 0.5m of 1mm HGC pure silver wire, 0.2m of 1mm PTFE and 4m of Mundorf 3.8% silver/gold solder.

We do offer the mono version too.
