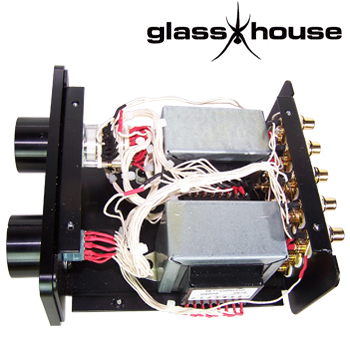

Glasshouse TVC Passive Pre-amplifier MK2

Glasshouse TVC Passive Pre-amplifier No.2 kit
£500.00
Stock:
11
-+


SKU:
TVC-n2648

The all new MK2 version featuring British made TVC transformers is available as a kit or fully build.

Kit contents:

Chassis base, lid and 6mm front panel
2x control knobs
9x red phono sockets (gold plated)
9x black phono sockets (gold plated)
1x earth post
M4x6mm pozi-drive screw x4 Fit 1 x M4 nut as spacer (to fit front panel to chassis base)
M4x6mm pozi-drive screw x4 Fit & M4 x 4 to fit transformers to chassis
M3x6mm countersunk screws x8 (to fit base and lid together)
M3 solder tags x3 for easy soldering of the earth post
Elma 2 pole 6 way selector switch 01-1264
Elma 2 pole 24 way attenuator switch
2x Glasshouse TVC Transformers MK2
11m Jupiter Awg26 copper wire, cotton sleeving, CRYO treated
3.8% Silver/gold Mundorf solder x 5m
Suitable lengths of red and black heat shrink 2.4mm diameter for terminating the wire.
Rubber adhesive feet x 4
Cable ties x 20

For more information on this product please click HERE



Product Weight:
4 kg
