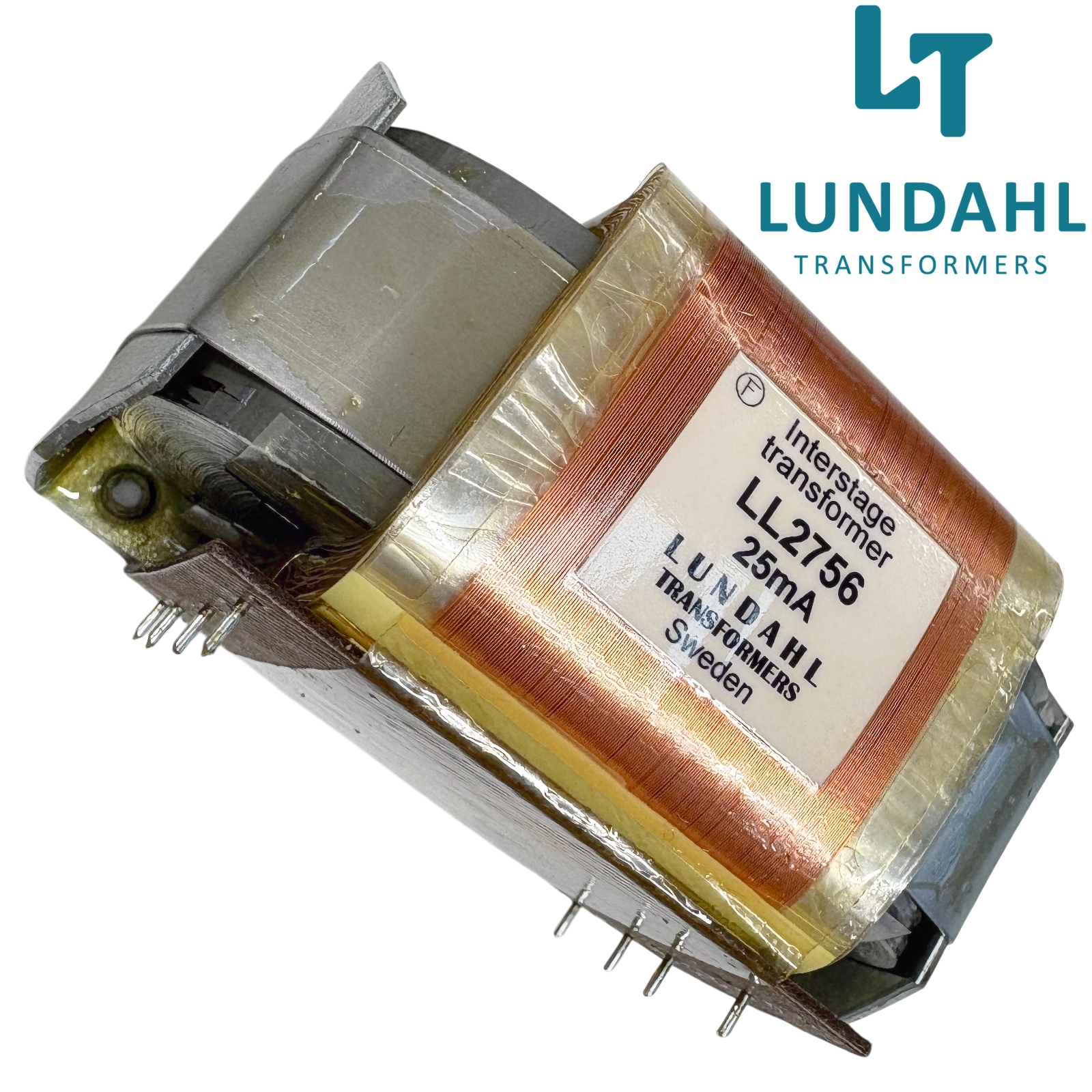

LL2756: Lundahl Interstage Transformer

The LL2756 is ONLY available for single-ended operation. (The air-gap is adjusted during manufacture to suit)

• 25mA Single-ended

(N.B. The purpose of the airgap is to accept the DC current of the output valve without saturating the core, leaving enough headroom for the sound signal)

There are further 2 versions depending on what C-core material you require.

• Silicon-iron (STANDARD)
• Amorphous-iron (AM)

Turns ratio

• 1 + 1  : 1 + 1

For more information on this product, please click HERE
