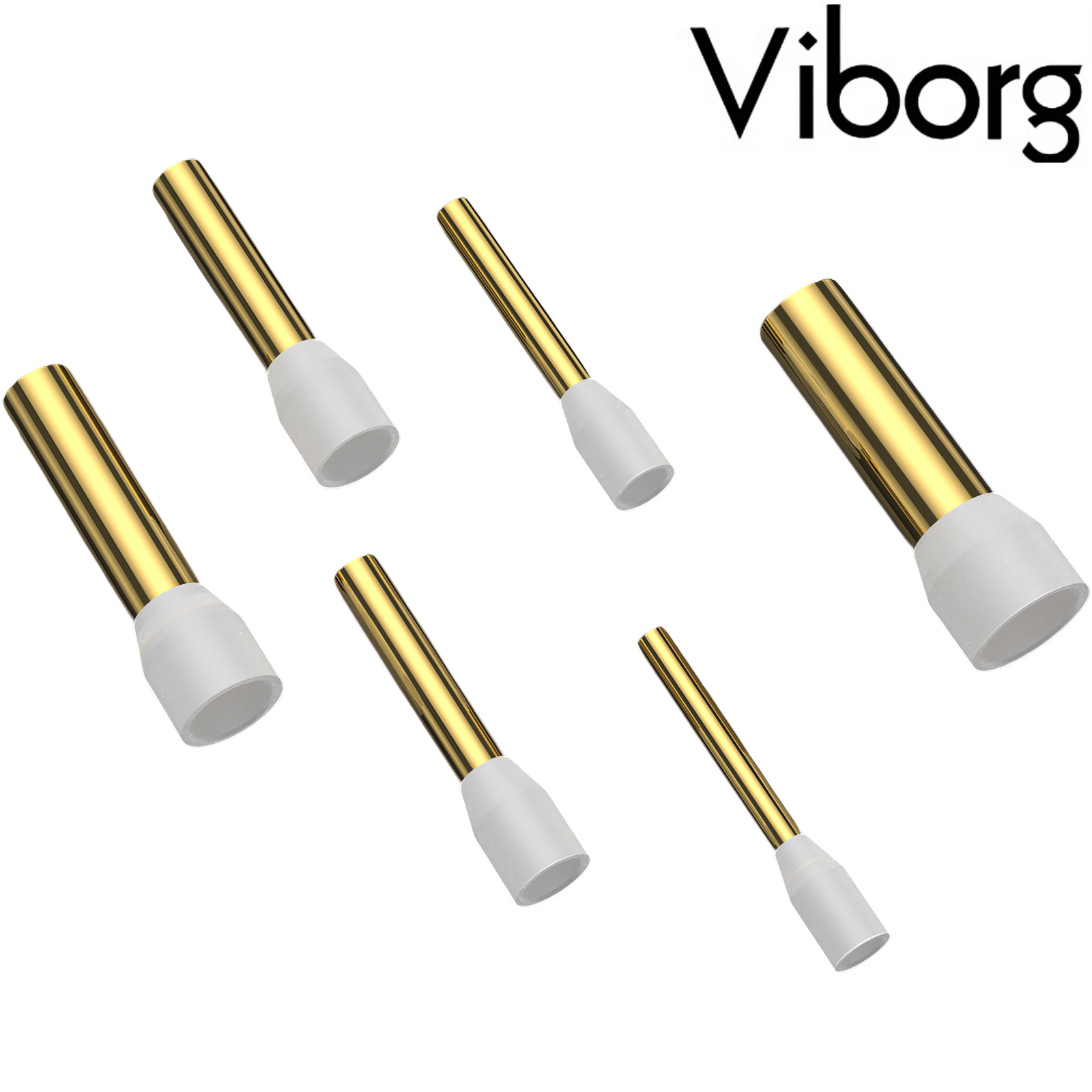

Viborg Copper Cable End Sleeve with Insulation

Gold and Rhodium-plated Copper Cable End Sleeves, with Insulation. 3 layers of plating, Oxygen Free Copper Plated, then Silver-plate and finally Gold or Rhodium.

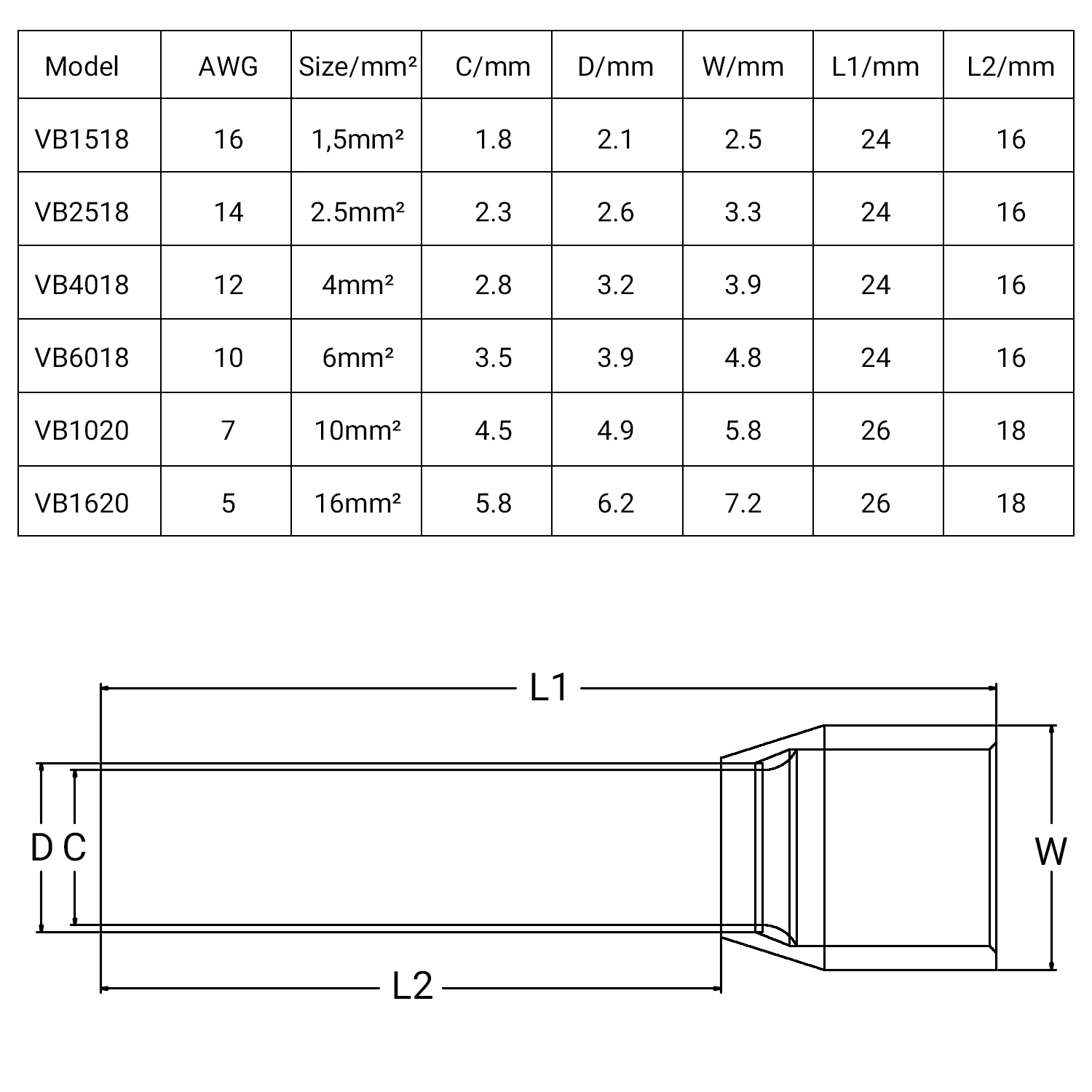

Many sizes available with dimensions listed below, but also consult the datasheet, which contains a drawing with for clarity.

Model AWG Size (mm²) C (mm) D (mm) W (mm) L1 (mm) L2 (mm)
VB1518 16 1.5 1.8 2.1 2.5 24 16
VB2518 14 2.5 2.3 2.6 3.3 24 16
VB4018 12 4 2.8 3.2 3.9 24 16
VB6018 10 6 3.5 3.9 4.8 24 16
VB1020 7 10 4.5 4.9 5.8 26 18
VB1620 5 16 5.8 6.2 7.2 26 18



PRICE Gold (1 off)
£1.40 +vat +p&p

PRICE Rhodium (1 off)
£2.80 +vat +p&p

Big Picture
Viborg Cable Sleeves Datasheet379.47 KB
