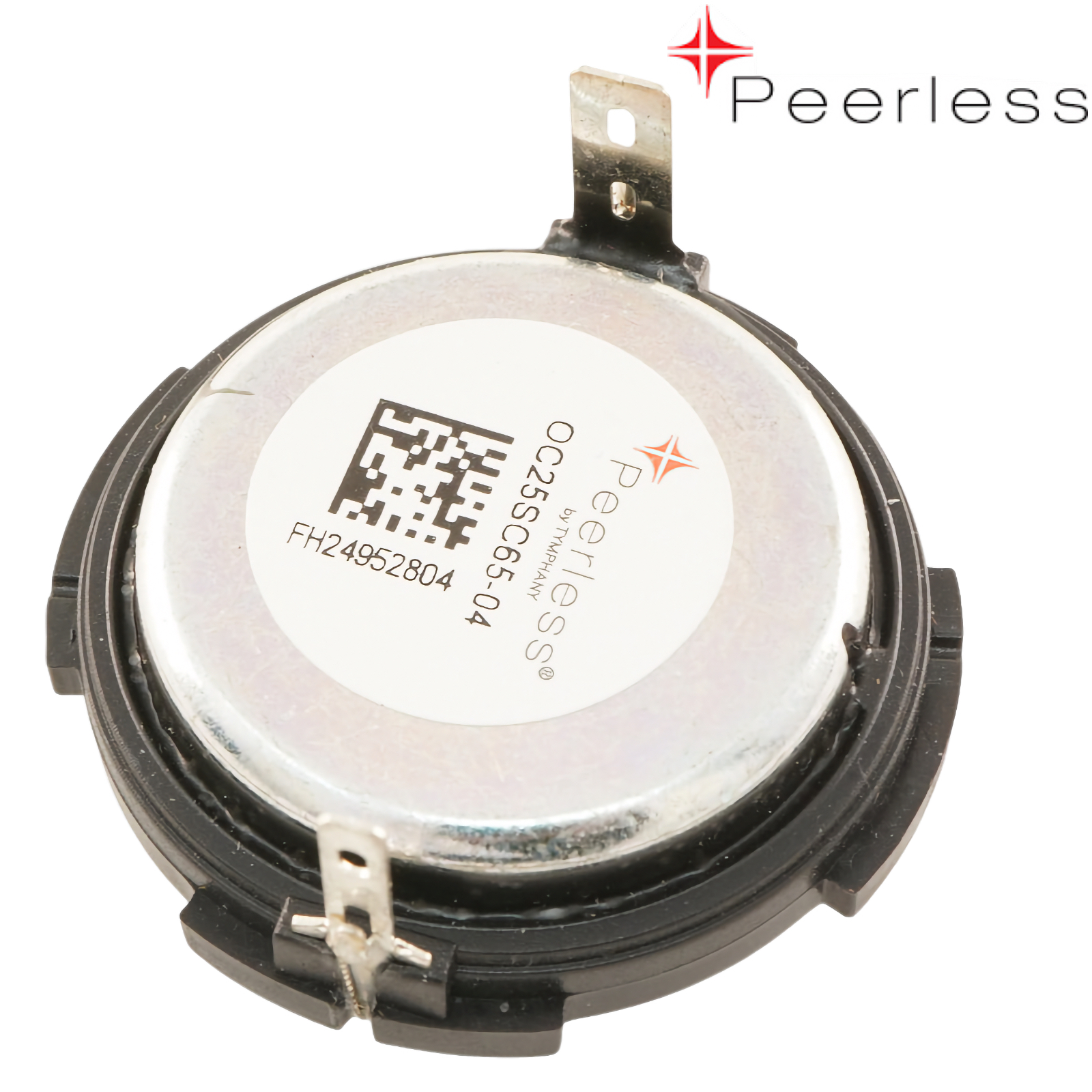

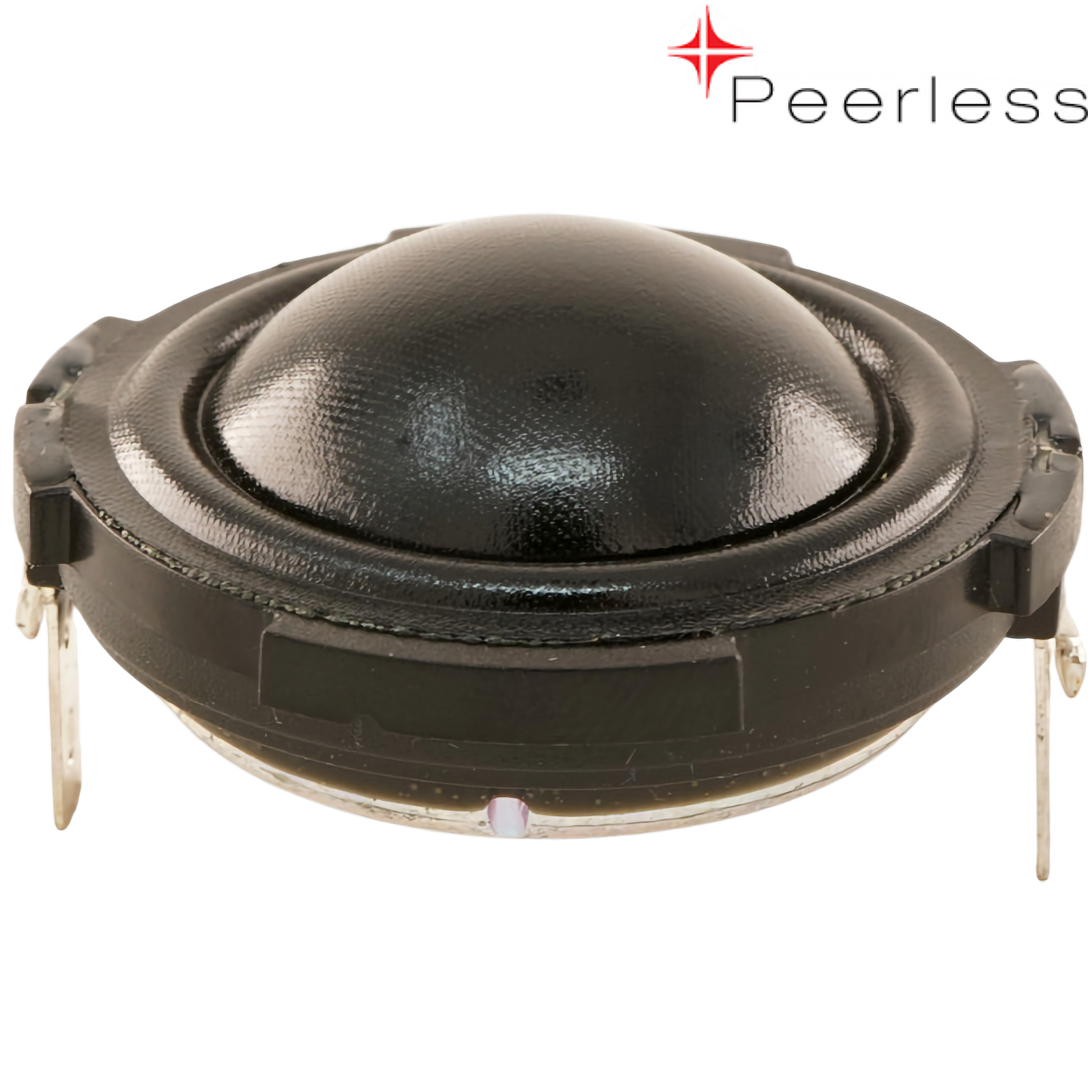

Peerless OC25C65-04, 25mm Dome Tweeter, 4 ohm

The Tymphany Peerless OC25SC65-04 is a compact 1-inch dome tweeter designed for flexible, custom mounting without a faceplate. Its coated silk diaphragm and surround deliver a smooth, extended frequency response with high efficiency. A ferrofluid-cooled voice coil improves thermal control and supports reliable performance at higher output levels. The self-shielding neodymium motor provides strong magnetic performance in a space-saving design.

Specifications:

• Nominal Diameter: 25 mm (0.98 in)
• Impedance: 4 ohms
• Power: 80 W
• Sensitivity: 92.3 dB
• Frequency Range: 2000 - 20000 Hz
• Voice Coil Diameter: 25.4 mm
• Magnetic Gap Depth: 2 mm
• Diaphragm Material: Silk
• Magnet Material: Neodymium
• DC Resistance (Re) - 3 Ohm
• Resonance (Fs) - 1400 Hz
• Diaphragm Area (Sd) - 6.93 cm2
• Moving Mass - System (Mms) - 0.289 g
• Force Factor (BL) - 2.02 Tm
• Maximum Linear Excursion (Xmax) - 0.667 mm
• Voice Coil Inductance (Le) - 0.026 mH
• Mechanical Q (Qms) - 3.58
• Electrical Q (Qes) - 1.83
• Total Q (Qts) - 1.2
• Compliance (Cms) - 46 μm/N
• Compliance Equivalent Volume (Vas) - 0.003 L

PRICE (1 off)
£21.16 +vat +p&p
