Lundahl L-Brackets

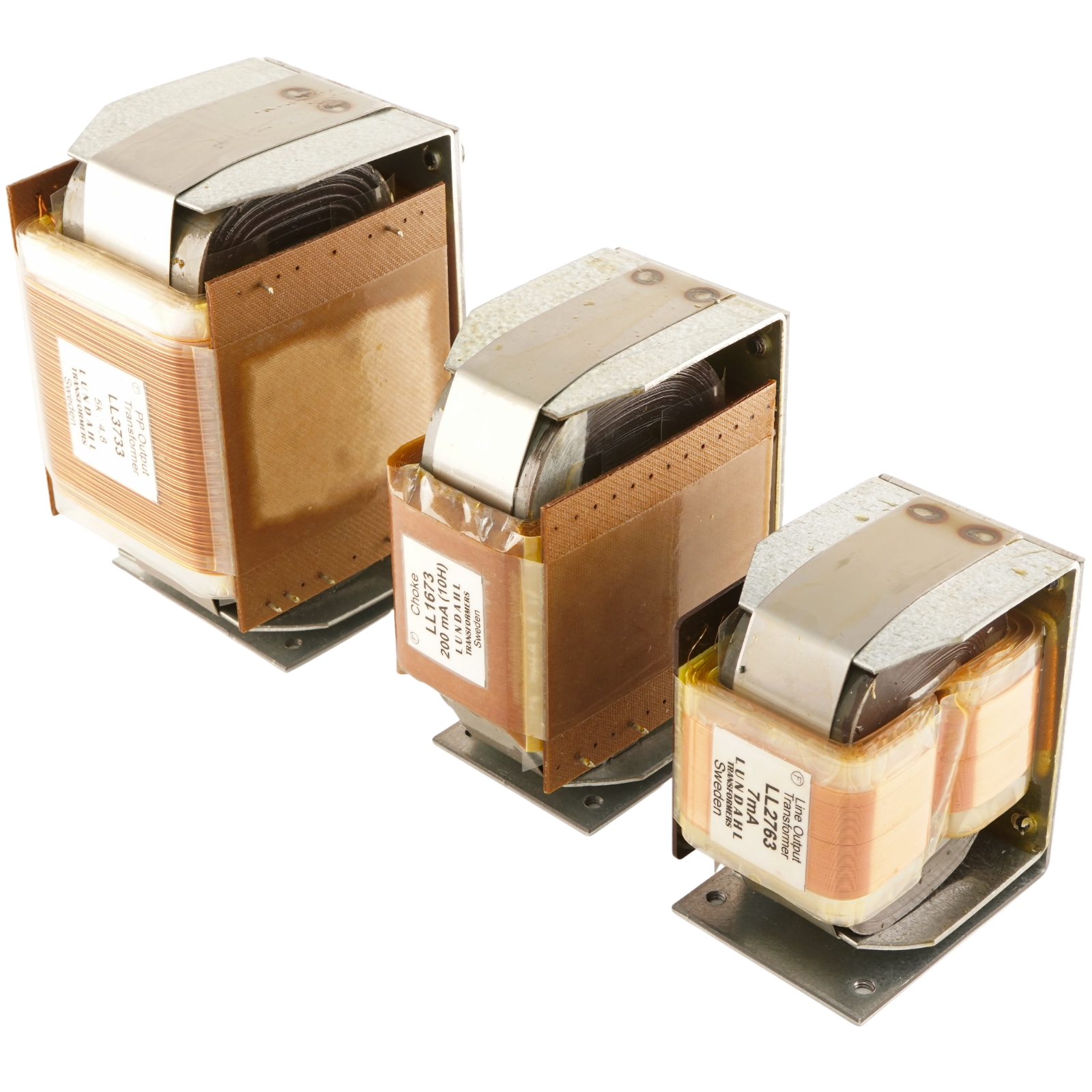

We have worked closely with Lundahl to create a solution for the vertical mounting of Lundahl transformers in the form of the Lundahl L-Bracket.

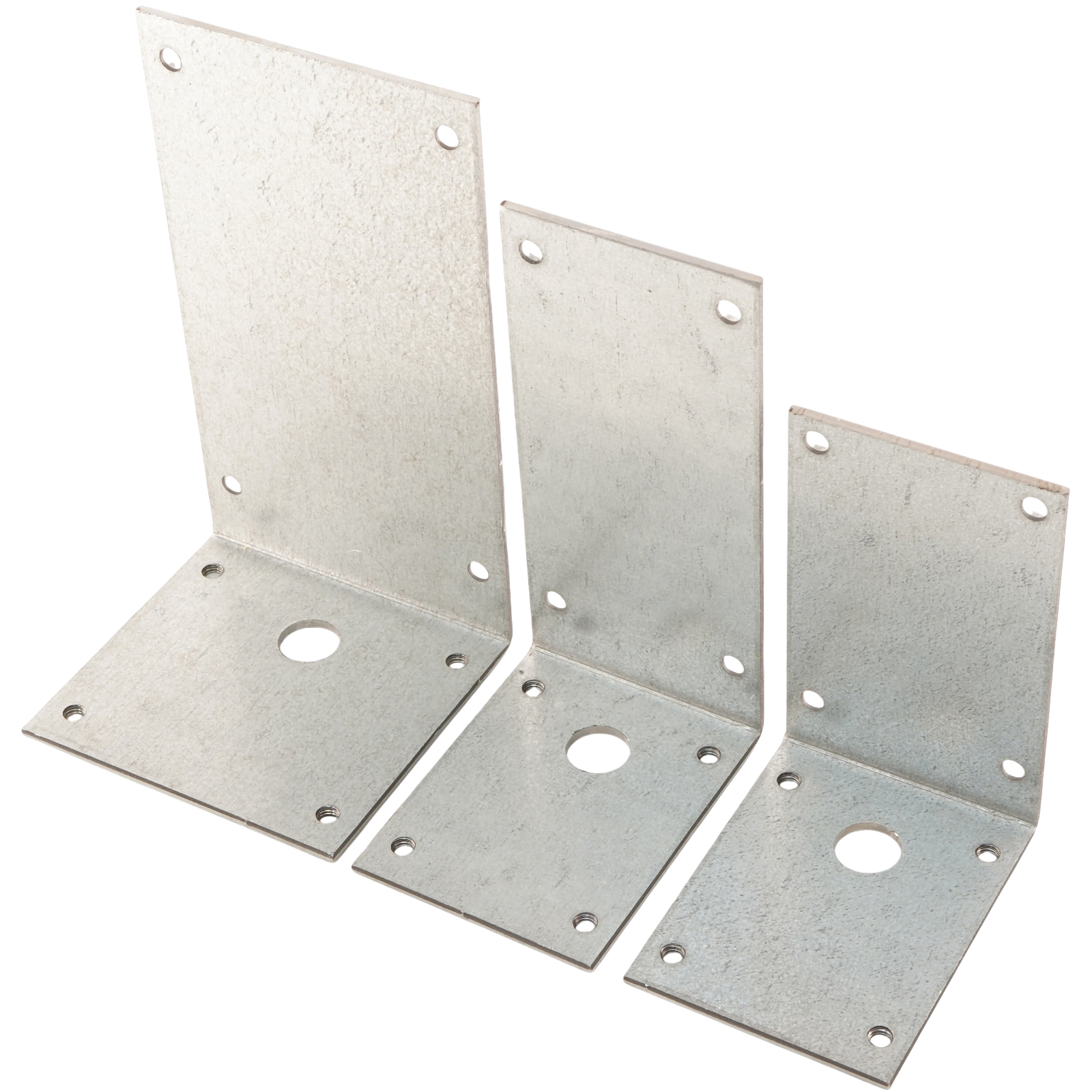

Lundahl offers seven sizes of transformers, and we now have stock of three L-bracket sizes for the most popular models.
How do you choose which L-Bracket to use?
Refer to the datasheet associated with the transformer on the content page. Check the publish weights.

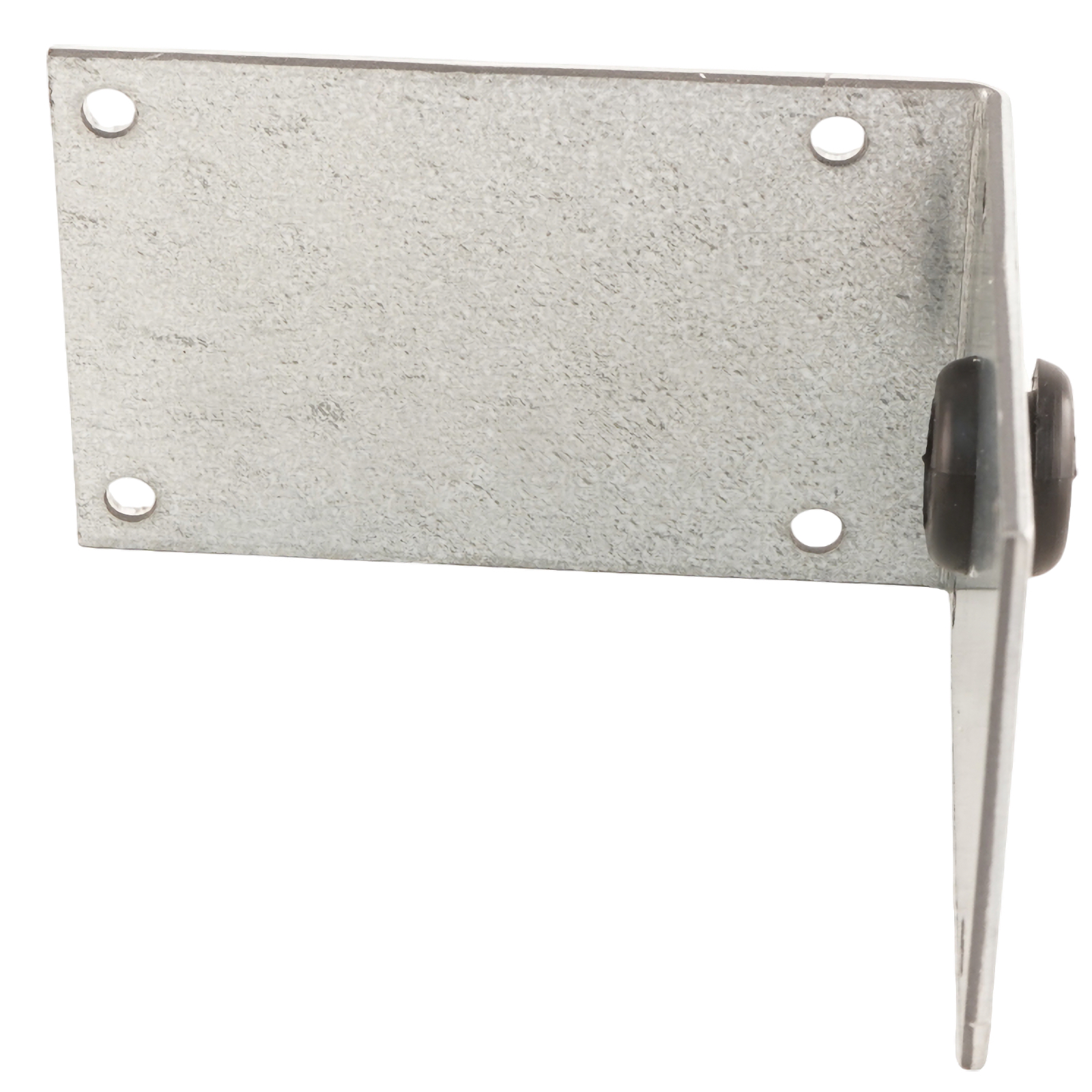

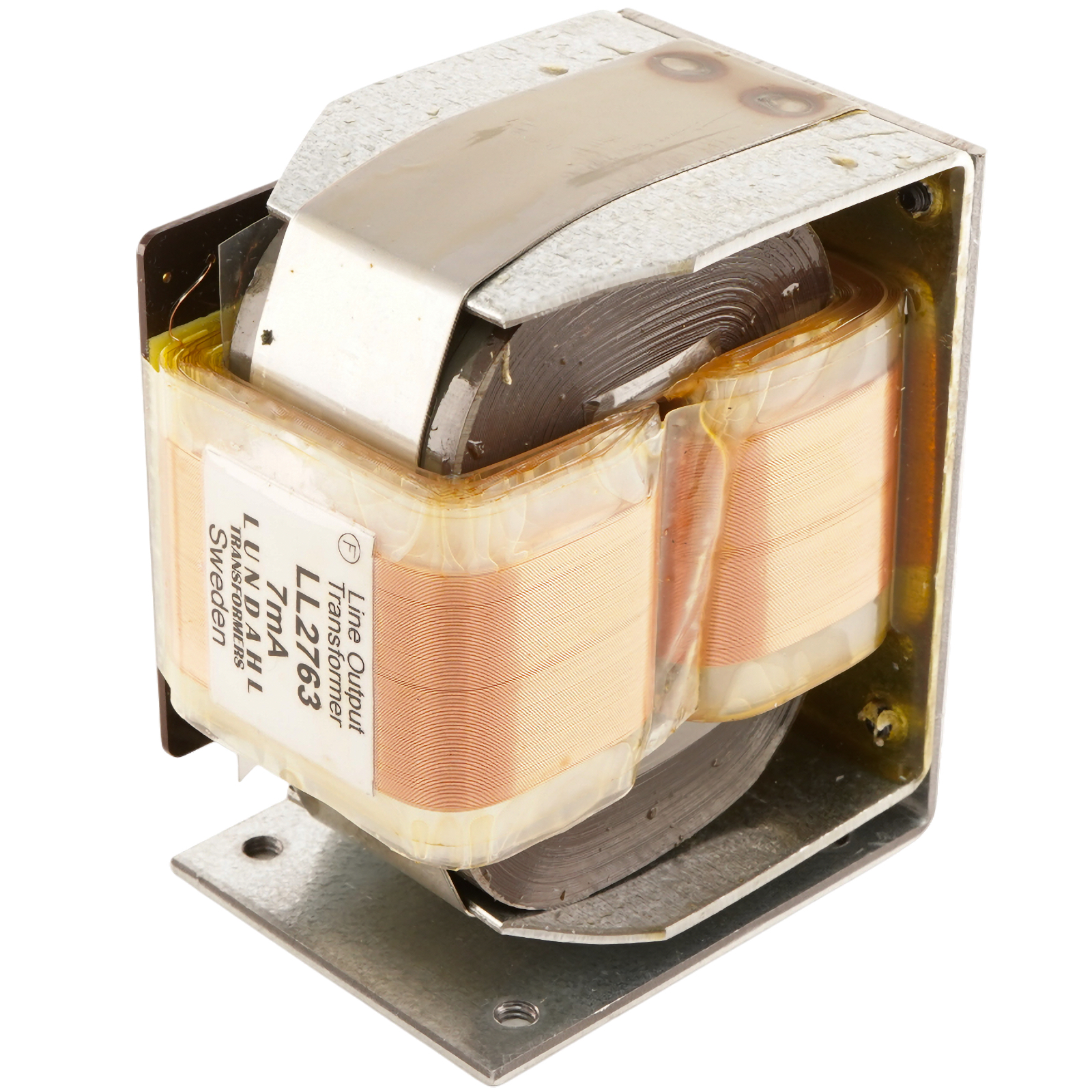

- L_Bracket_1660 for 0.75kg transformers

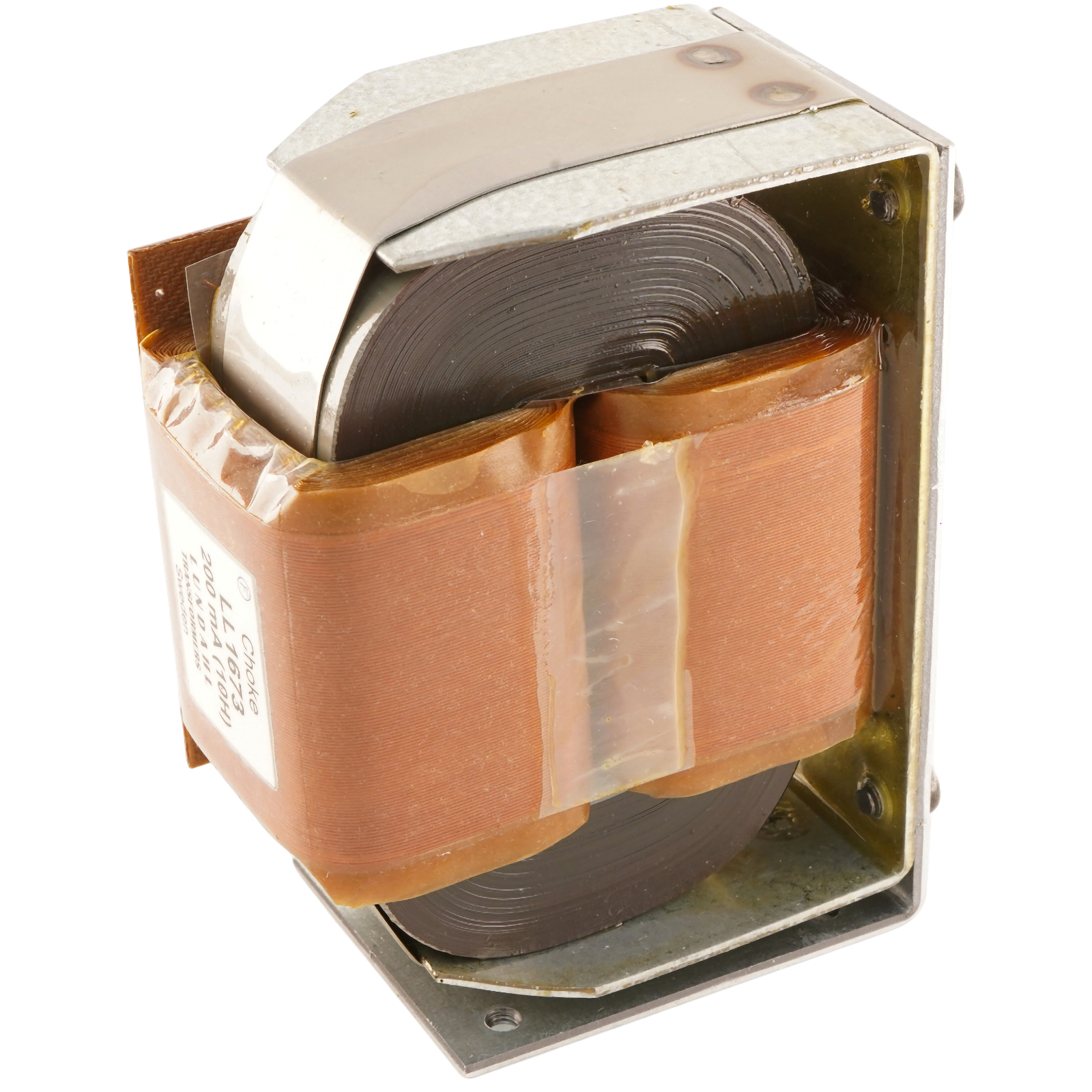

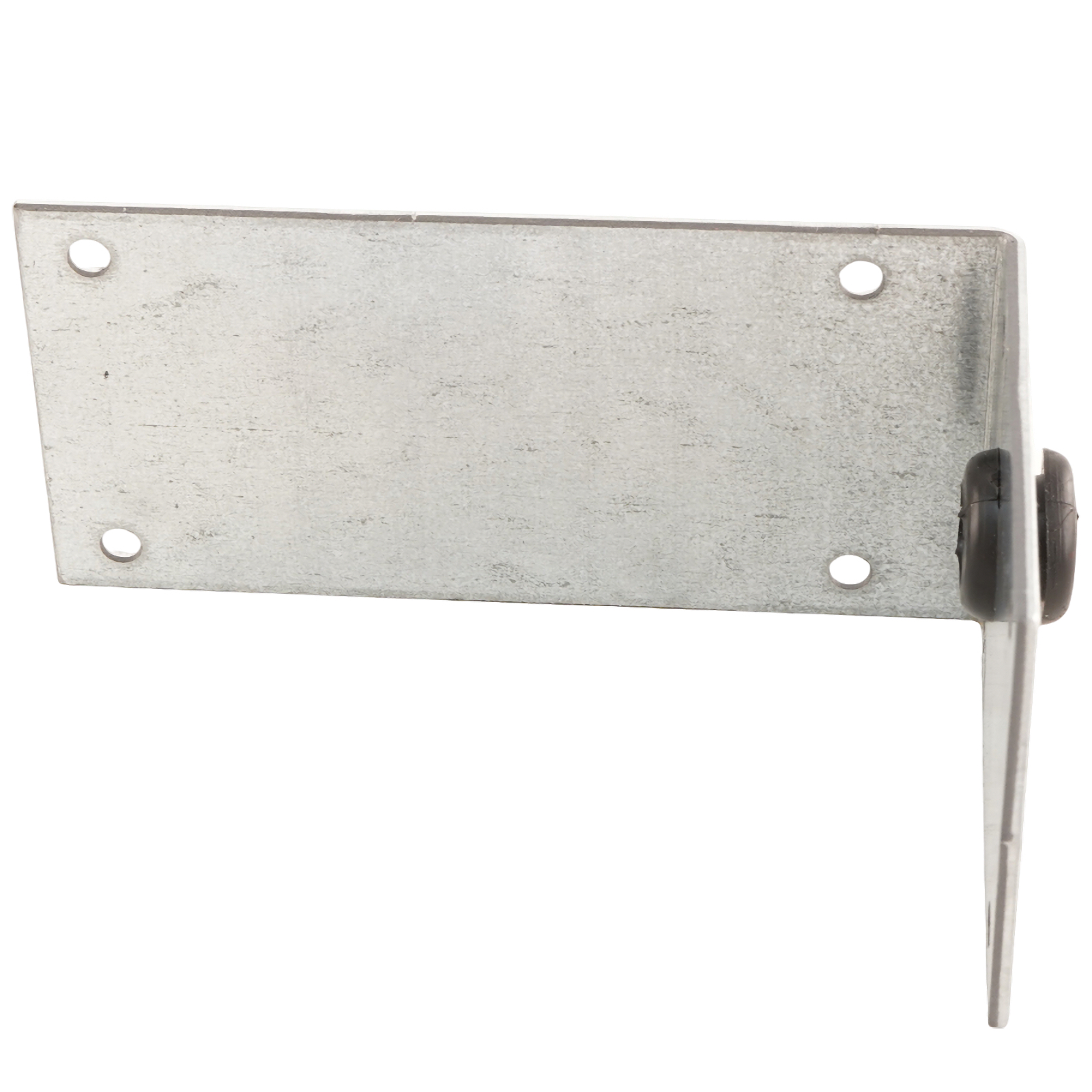

- L_Bracket_1638 for 1.35kg transformers

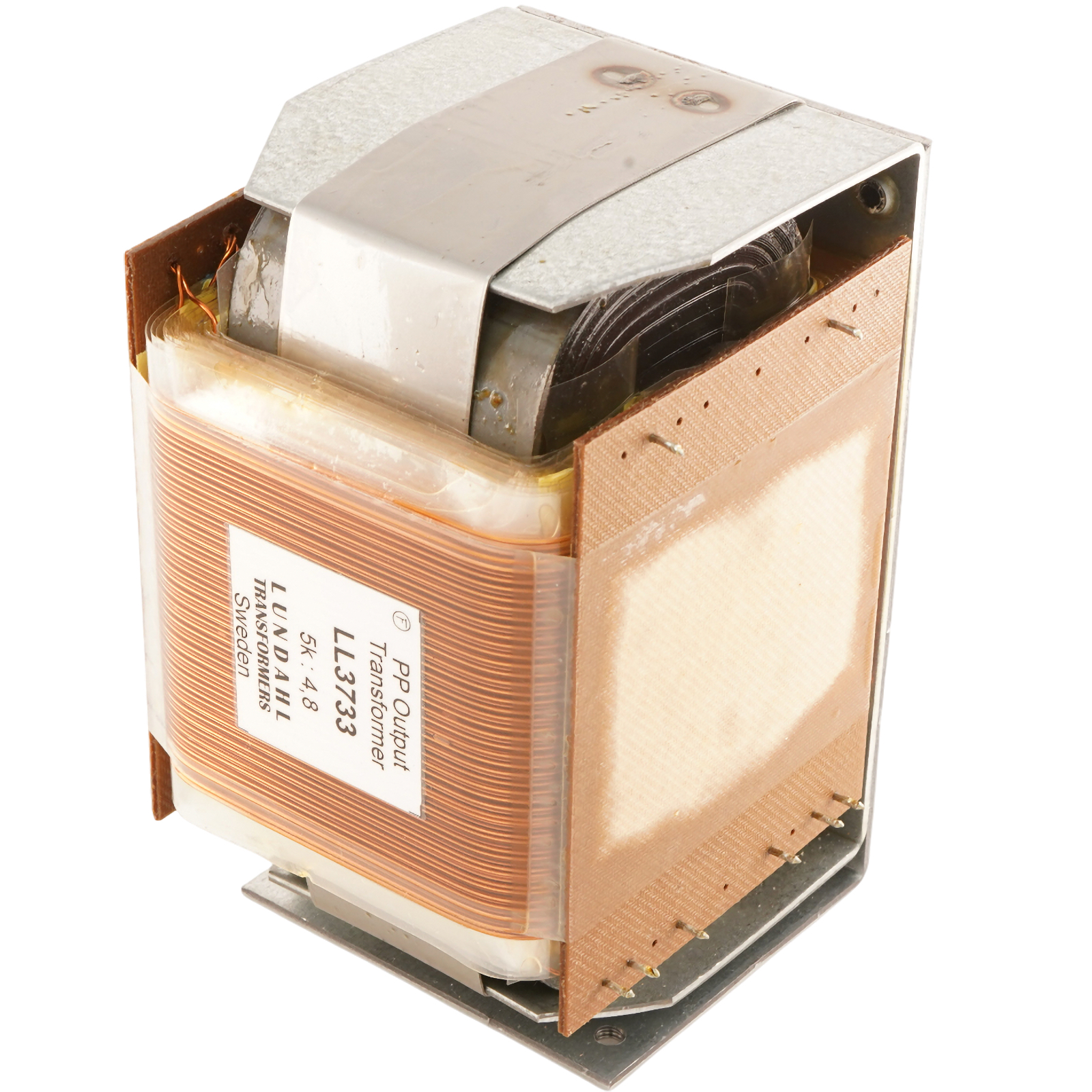

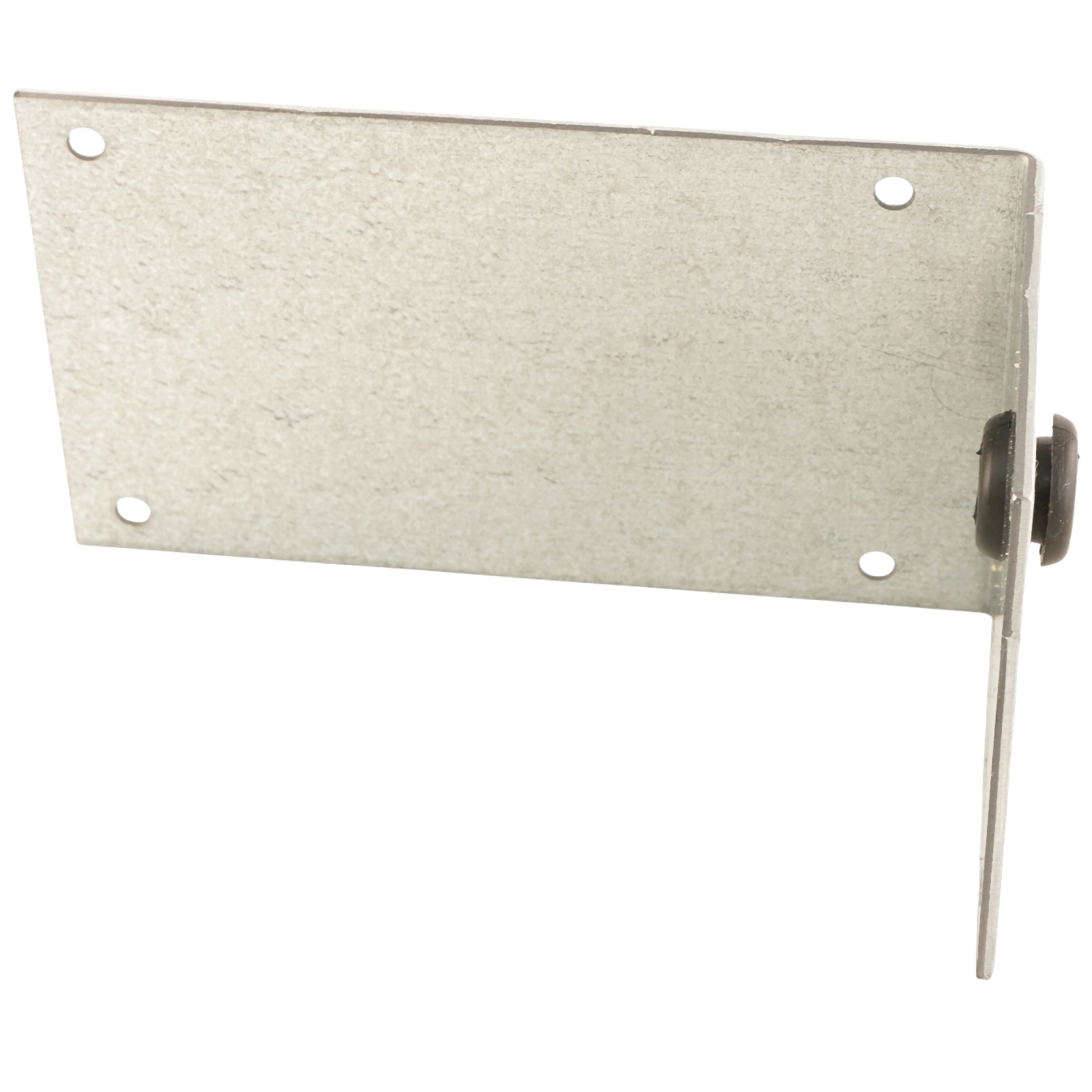

- L_Bracket_1620 for 2.5kg transformers
You can also cross-reference this with the technical drawings I've included below, specifically looking over the spacing of the fixing holes on the vertical part; these should align with the transformer data sheet.
The L-Brackets work well with transformer covers. We currently do not stock these, but we intend to. You can source here.
All L-brackets are made of steel and are magnetic, which will improve screening. Each bracket is supplied with a grommet and associated screws.
Dimensions, including solder pins :
- L_Bracket_1660: 50mm(w) x 65mm (d) x 76mm (h)
- L_Bracket_1638: 55mm(w) x 80mm (d) x 100mm (h)
- L_Bracket_1660: 85mm(w) x 80mm (d) x 115mm (h)
PRICE (1 off)
£13.00 +vat +p&p
