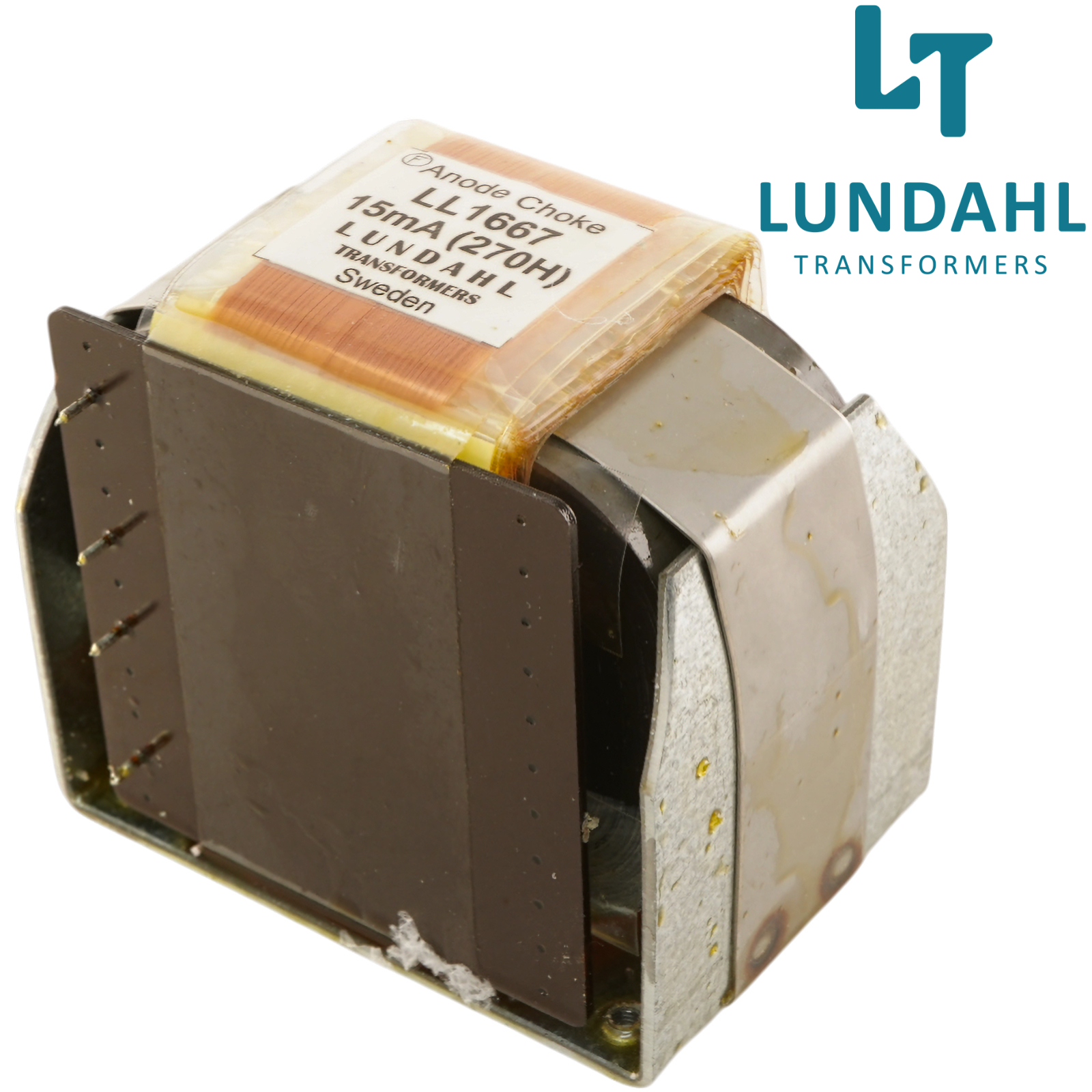

LL1667: Lundahl Anode Choke

The LL1667 is an anode choke for tube amplifiers. It is built with two coils and uses our own special audio C-core. The coils are made using a low-capacitance coil winding technique. The two-coil structure greatly reduces the risk of picking up hum caused by external magnetic fields from, e.g., mains transformers. The LL1667 is available with different core airgaps, resulting in different inductance-DC current combinations on request.

The LL1667 is available in 6 versions. (The air-gap is adjusted during manufacture to suit)

  • 800H, 5mA
  • 540H, 7mA
  • 480H, 8mA
  • 450H, 9mA
  • 420H, 10mA
  • 270H, 15mA

Specifications:

  • Dimensions - 73mm x 63mm x 45mm
  • Silicon-iron (STANDARD) core material

PRICE (1 off)
£92.02 +vat +p&p

Non-Stock Item - Please allow 4-6 weeks for dispatch

PDF datasheet
Datasheet231.96 KB
