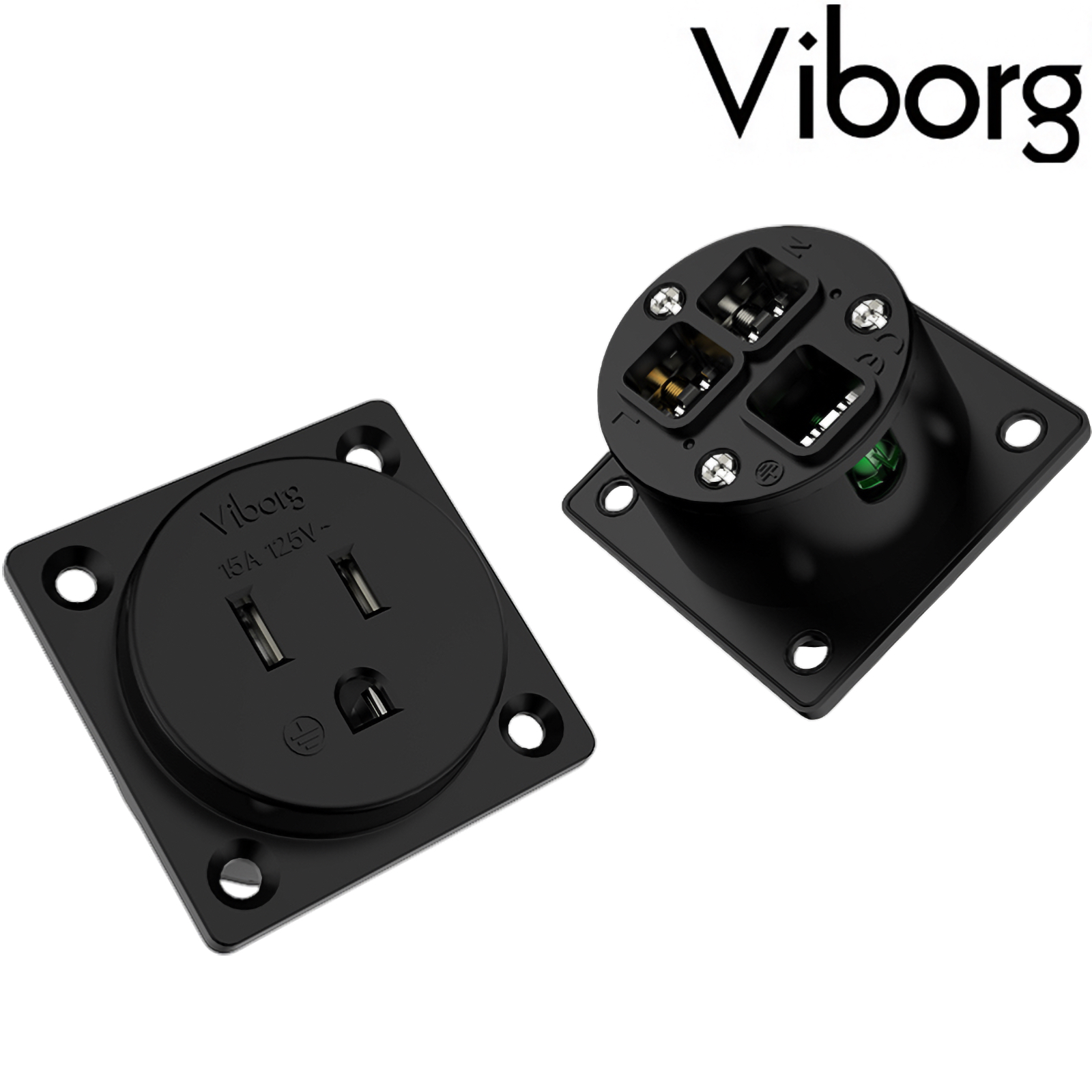

Viborg VM04R US AC inlet socket Pure Copper, Rhodium-plated

The Viborg VM04G is a rhodium-plated US NEMA female wall receptacle engineered to deliver a secure and stable mains connection for high-quality audio systems. High-purity copper conductors are used to maximise current delivery and reduce electrical losses, supporting clean and consistent power transfer.

The contacts feature a triple plating process of copper, silver and then gold plate, providing excellent resistance to oxidation and long-term contact degradation while preserving conductivity. A reinforced PA66 and fibreglass composite housing ensures strong mechanical stability and durability in demanding installations.

Suitable for cables with an outer diameter of up to 8mm.

3-Layer Plated:

1. Oxygen Free Copper Plated
2. Silver Plated
3. Rhodium Plated

Specifications:

• Conductor(L & N): Pure Copper (purity 99.98%)
• Ground Material: Phosphor Bronze
• Rate: 15A-125V
• Panel Material: PA66+45%fiberglass
• Connect: Set Screws(Brass)
• Crimp: Brass+plating

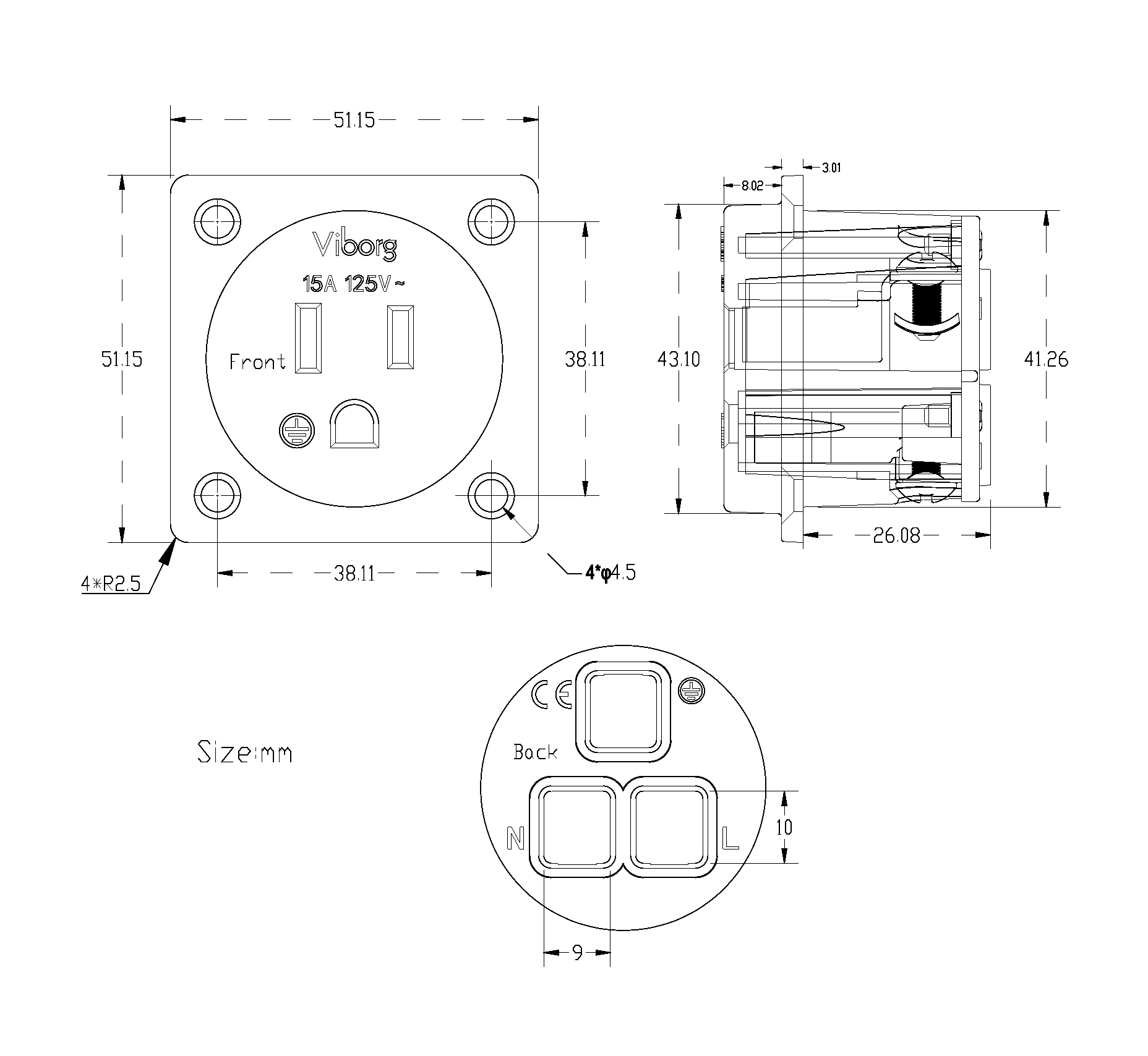

• Dimensions: 37*51*51mm
• Accommodates cable: 8mm approx
• Distance for Panel assembly: 38mm

PRICE (1 off)
£13.78 +vat +p&p
