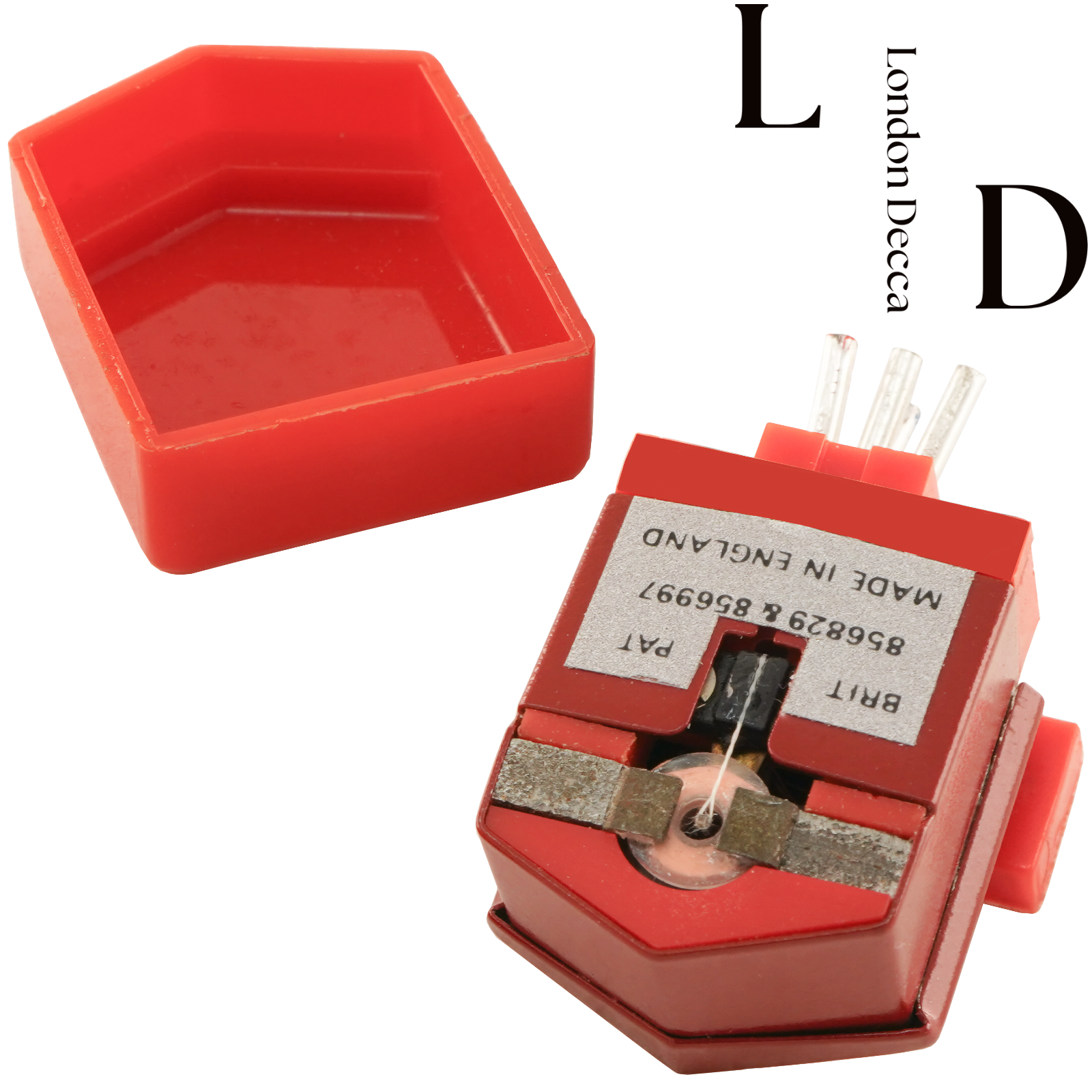

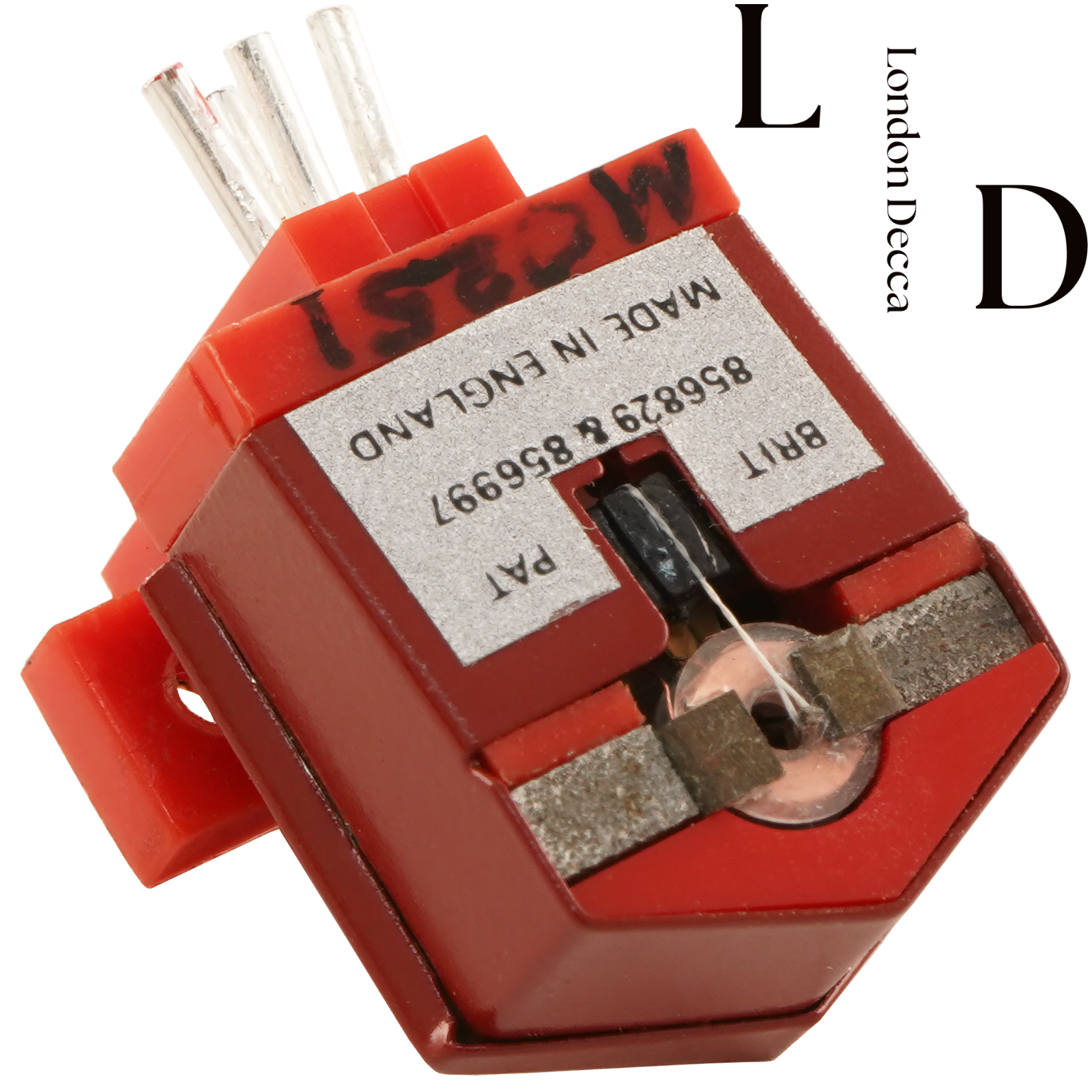

London Decca Maroon Type II Stereo Cartridge
Originally introduced in 1976 by Decca, the newly revised London Decca Maroon, type II version, operates in the classic Decca principle of a sprung steel armature working in a sum/difference circuit. The type II Maroon uses the same classic Conical profiled diamond, grain-oriented and optimally aligned. Mounted in a classic red Decca body with a sliding mounting bracket and a striking Maroon Cerakote finish screening can, the London Decca Maroon type II delivers a robust, dynamic, full sound, elevating any system’s performance.
Magnets
Critical to the sound quality of any cartridge are the magnets. For this new range of London Decca cartridges, they have reverted back to the original design specification of Alnico magnets (Aluminium, Nickel, Cobalt); Alnico 5 to be specific. Alnico magnets deliver a rich and textured output with superb tonality and dynamics.

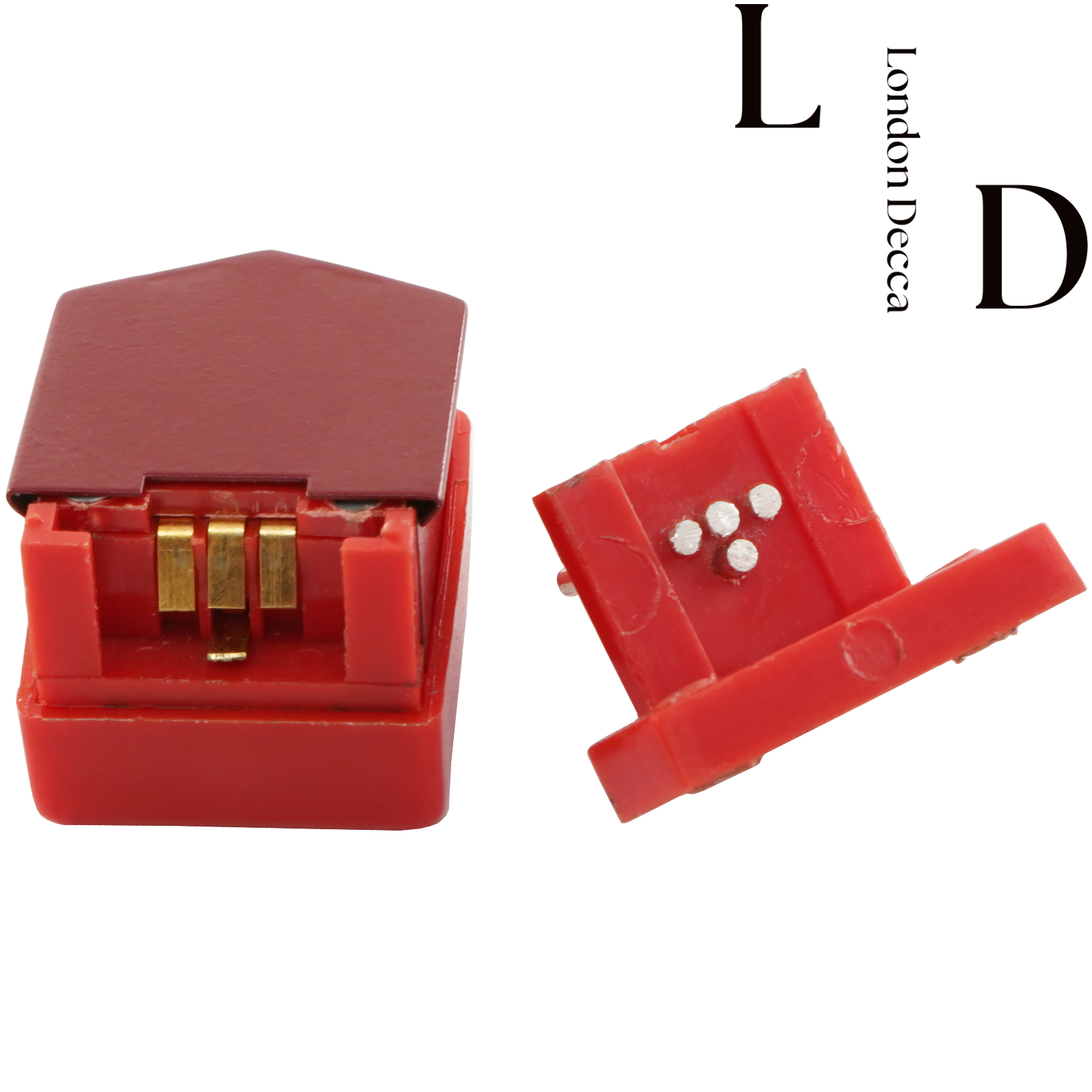

Connections

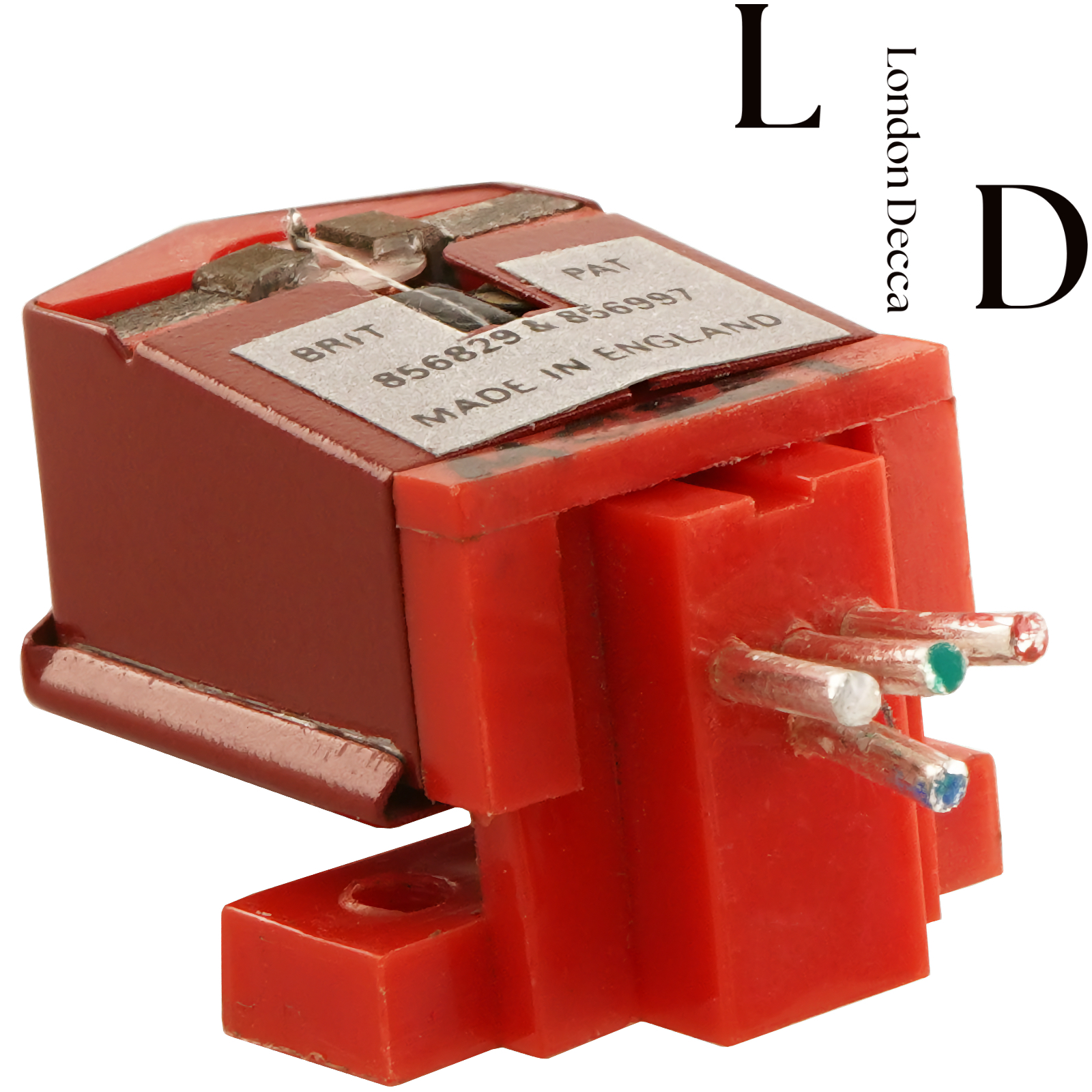

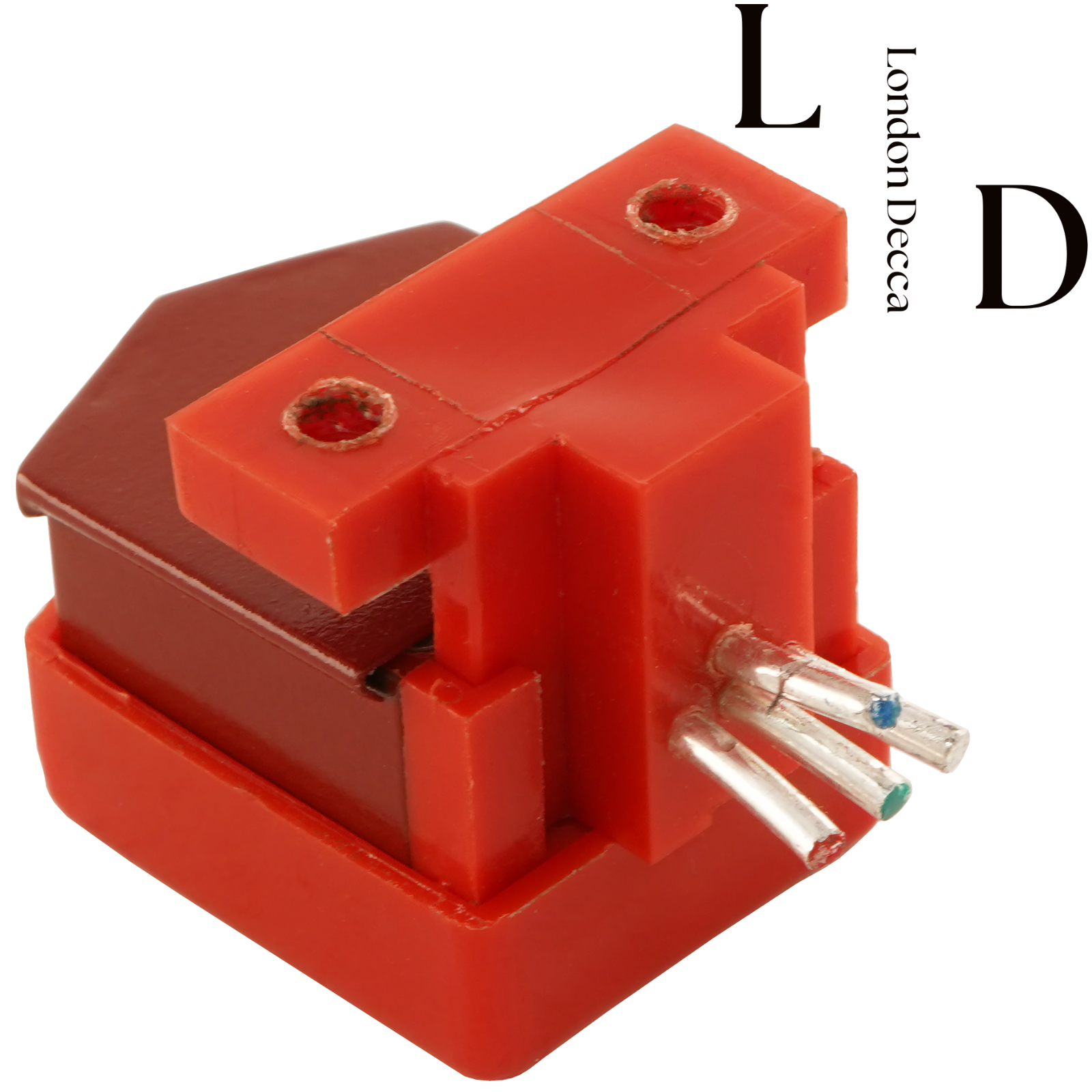

Historically, the MK V DECCA cartridges had three-pin outputs. For the new Maroon, the terminal block has been updated to four-pin, with industry-standard colour coding. All internal solder joints are fabricated with Audiophile grade Silver Solder (6% silver, 91% tin, 2% copper). The Reference has industry-standard four-pin connections, and all solder connections are with Silver Solder.
Body Type and Finishing
The final revision for the Maroon is that of Cerakote finishing on the stainless-steel can. Cerakote is a hard-wearing ceramic coating that not only gives superb visual looks but also stiffens and dampens the screening can for greater focus and dynamic output.
Specifications:
- Type: Moving Armature using Sum/difference principle with common ground
- Stereo
- Stylus: Grain-oriented diamond
- Profile: Spherical
- Magnets: Alnico 5
Body Mounting/Output/Frequency Range

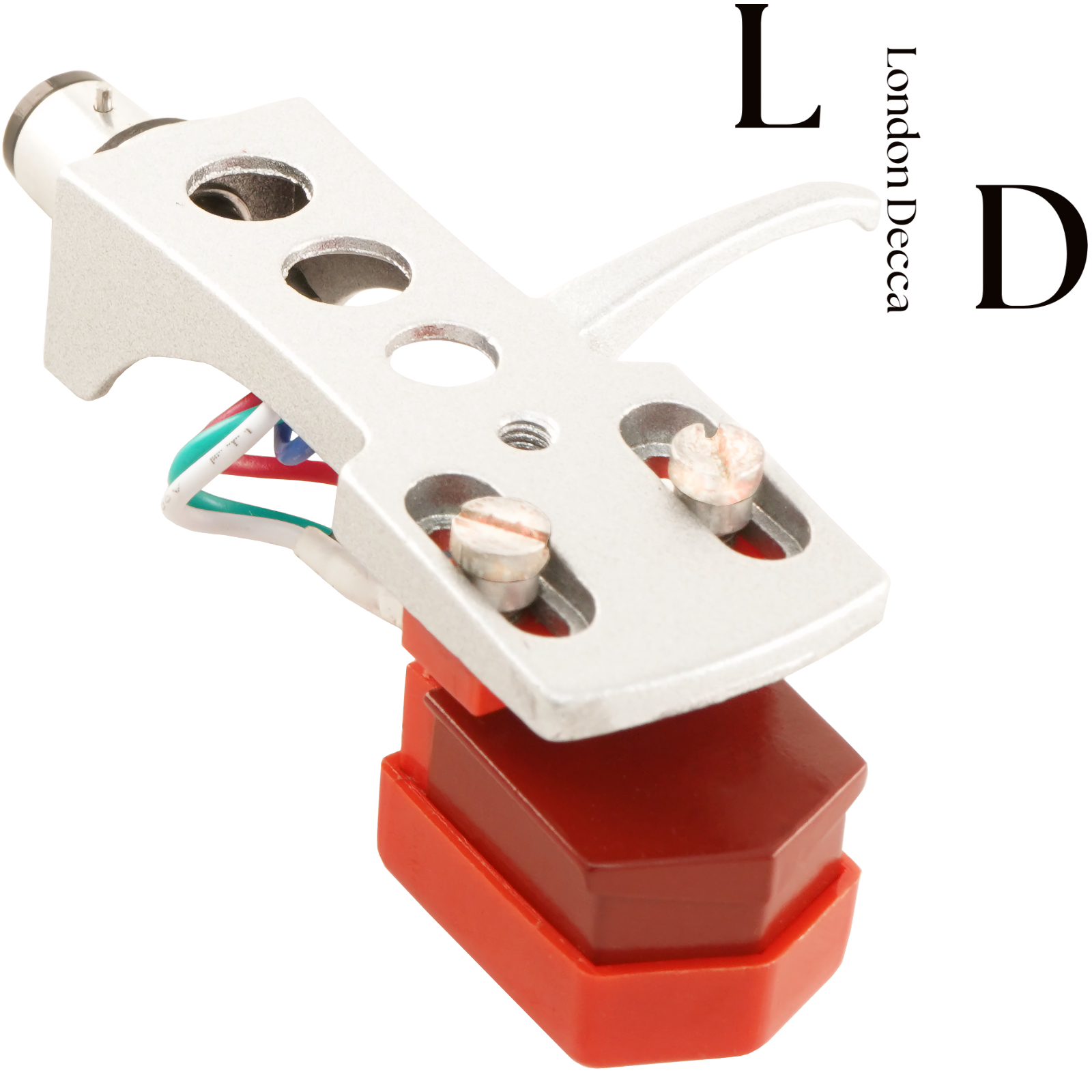

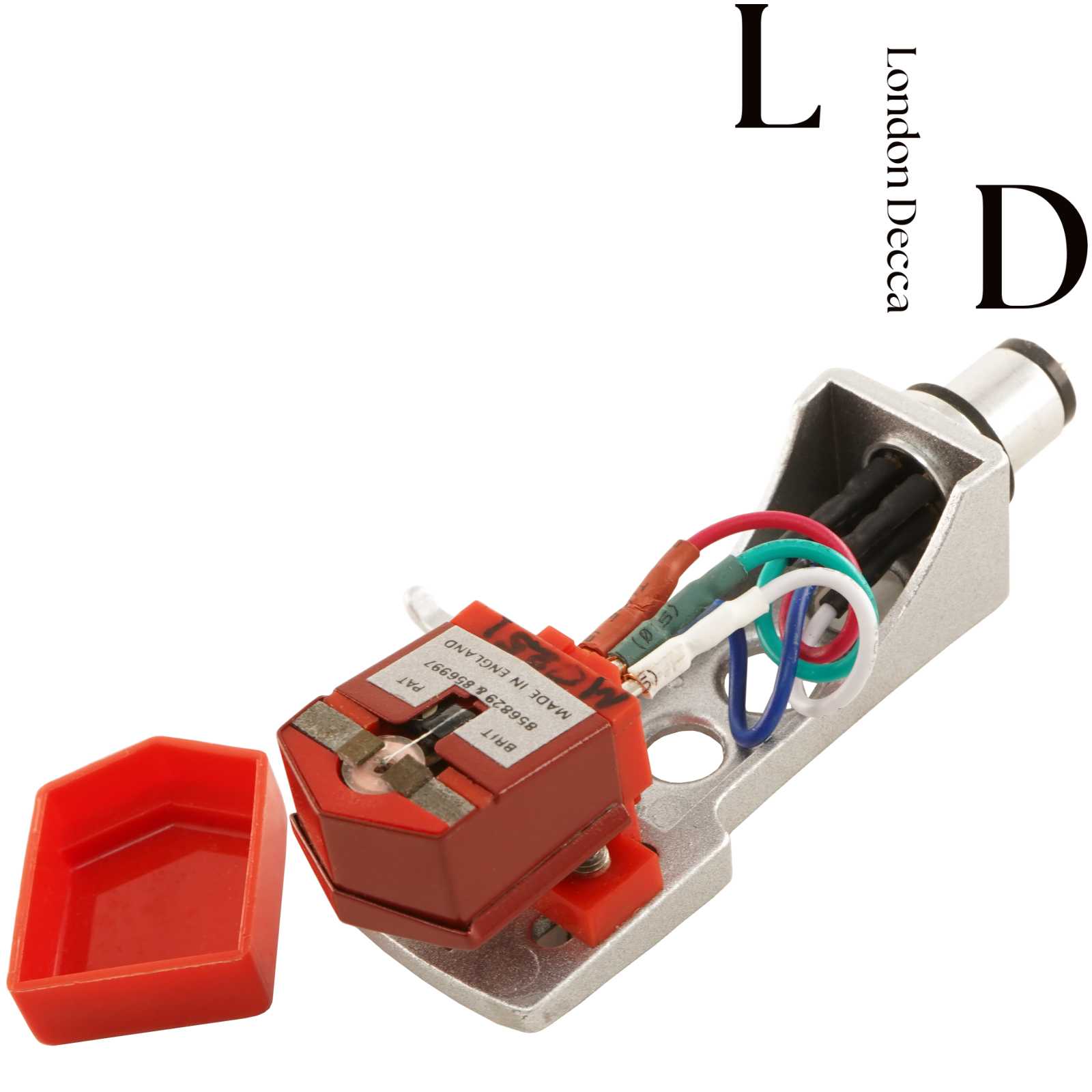

- Sliding mount with Cerakote stainless steel screening body
- Output: 4mV at 5cm/sec
- Frequency range: 20Hz-20KHz +/-3dB
Channel Balance/Channel Separation/Compliance
- Channel balance: 1dB at 1KHz
- Channel separation: 25dB at 1KHz
- Compliance: Lateral 15 x 10-6cm/dyne
Vertical/Inductance/DC Resistance
- Vertical: 10 x 10-6cm/dyne
- Inductance: 130mH per channel
- DC resistance: 2000 Ohms per channel
Input Impedance/Input Capacitance/Playing Weight
- Input impedance: 47K Ohms (optimum 33K Ohms)
- Input capacitance: 100 to 300pF (optimum 220pF )
- Playing weight: 1.8-2.0 grams
The Maroon Type II is handmade to order and will take 4 weeks for dispatch.
PRICE (1 off)
£1300.00 +vat +p&p
