ETI Research Legato US AC Connector, Gold Plated

ETI Research Legato US AC Connector, Gold Plated

ETI Research has developed a new range of AC connectors. The Legato US-style AC power connector is a high-quality power plug, beautifully engineered with an intelligent selection of materials and construction. Made with 1100 series copper that offers a very uniform fine grain structure, with an IACS rating of 102%. Without adverse constraints that brass or other alloys give, you can be assured that the Legato series will be perfect for your AC cables. Designed to protect from EMI/RF it is also designed to be rugged and hold your cable securely. Flawlessly plated, gold plated and rhodium plated version is available.

SPECIFICATION

  • Housing is machined from 6061 Aluminium.
  • Polymer inserts provide protection from any loose wires touching the housing.
  • It can take cables up to 20mm in diameter.
  • Twin thread holes for optional strain relief.
  • Screw Cap machined from 6061 Aluminium.
  • Each contact can receive a conductor up to 5mm in diameter.
  • dimensions: 100m (length) x  42mm (diameter)

PRICE 1 off
£165.00 +vat +p&p

Big Picture

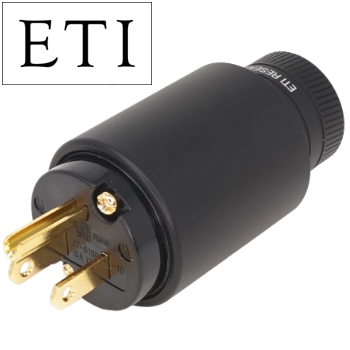

Large picture133.91 KB
Internal view165.38 KB

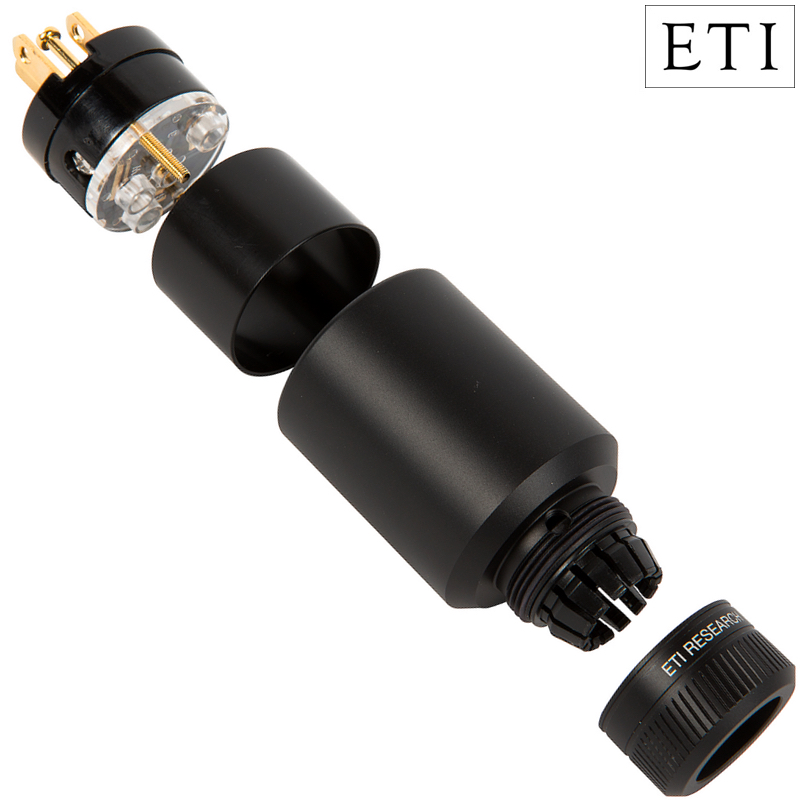

Exploded view268.75 KB
