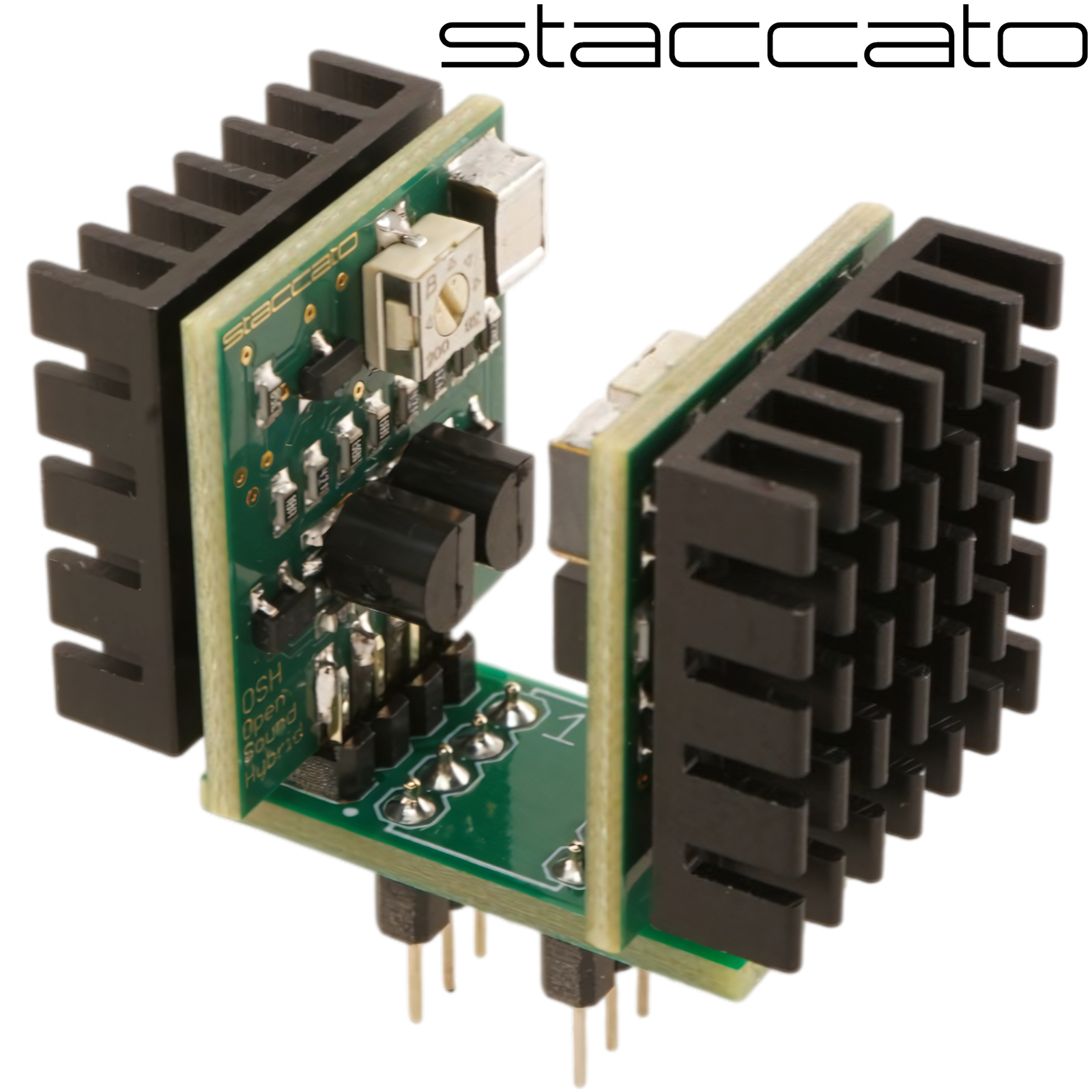

Staccato OSH-DHa Dual Discrete Op-amp Open Sound Hybrid Horizontal

The Staccato Open Sound Hybrid discrete op-amps are beautifully crafted. The circuitry receives macro treatment, designed to enhance the performance of high-end DACs and preamplifiers. This is the DUAL op-amp version and has slightly better heat dissipation, which might be better for closed enclosures without ventilation or amplifiers whose internal temperature is higher than DACs.

The use of JFETs in both the input and output stages, combined with a high bias current, results in low open-loop distortion dominated by the second harmonic. The output stage uses a source follower with an active current source, allowing it to deliver an output current greater than the bias current.

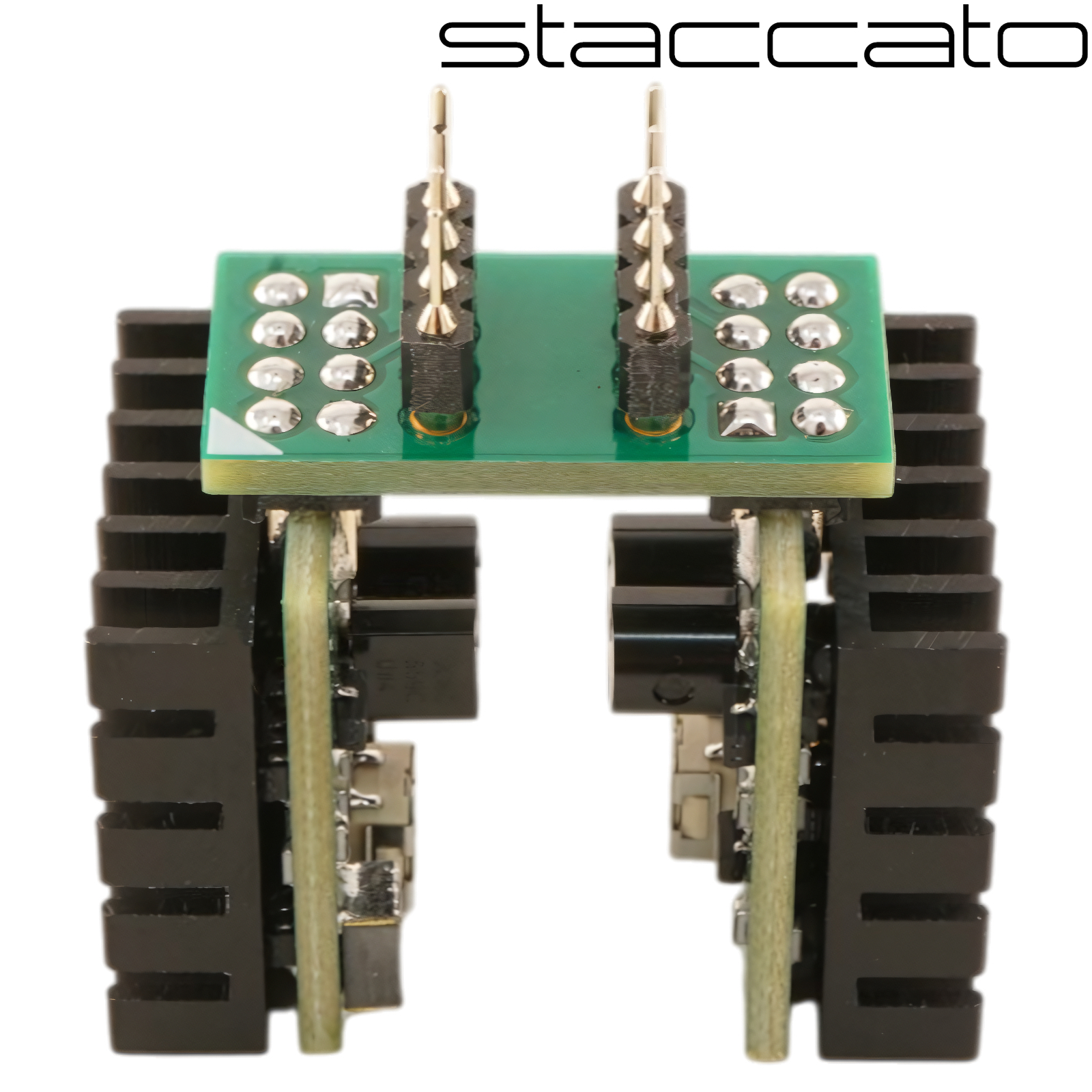

To fit, simply remove the original op-amp and replace it with the module. Make sure the orientation matches; pin 1 is marked with a dot. Please read the installation instructions below.

Compatible OP-AMPS are NE5532, OPA2134, TL072, RC4580, LF353, MUSES01, MUSES02, MUSES8820, MUSES8832 AD8620, AD712, AD8066, LME49723, OPA1642, OPA1652, AD823, uPC4558.

List of DUAL SIP8 opamps NJM4558, uPC4558, NJM2132L, BA728

List of QUAD opamps: LM148, LM124, LM124A, LM224, LM224A, LM324, LM324A, LM2902, LM2902V, LM224K, LM224KA, LM324K, LM324KA, LM2902K, LM2902KV, LM2902KAV, TL064.

If your op-amp isn't listed, please contact us for individual verification.

For further technical information, please read the datasheet below.

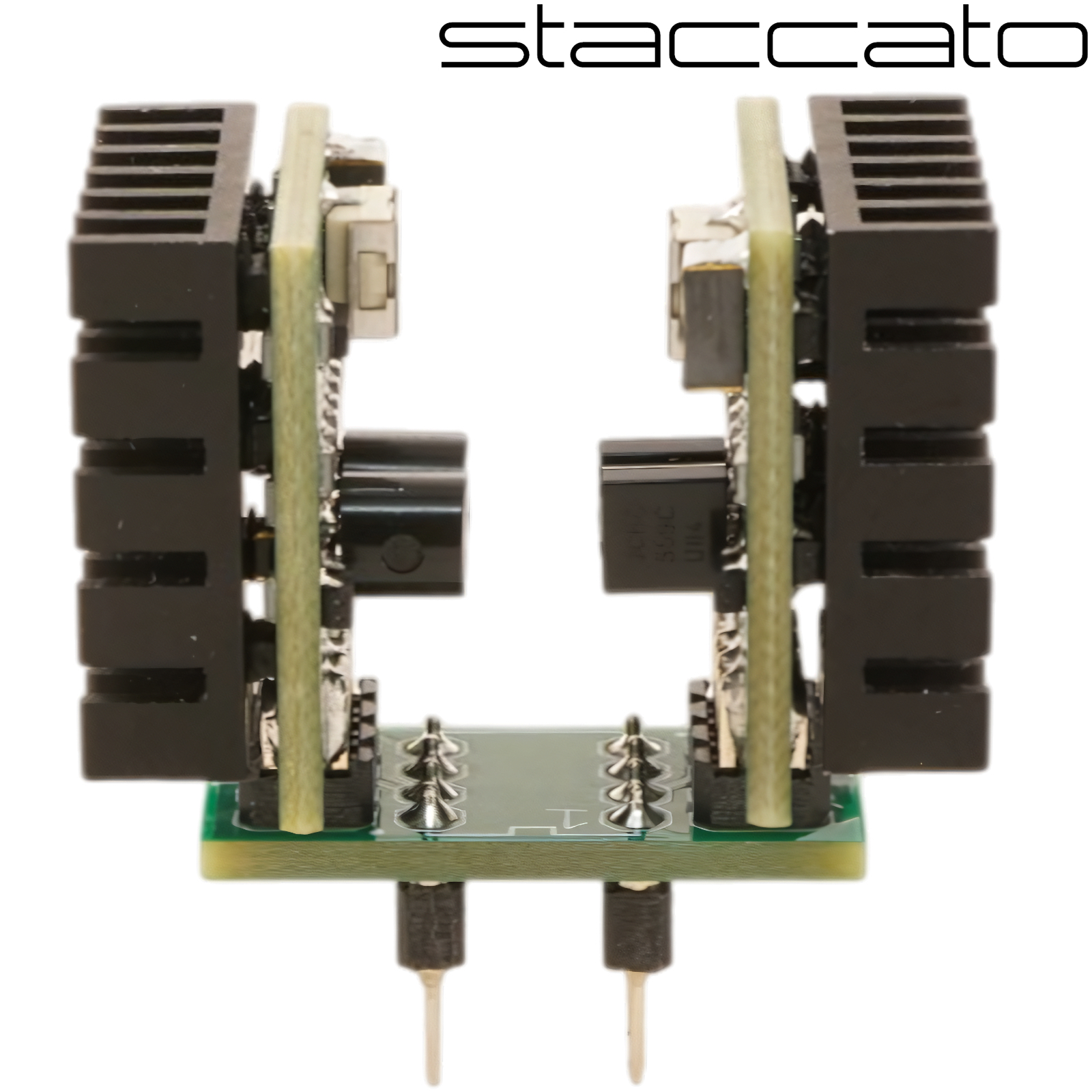

Dimensions: 33mm (width) x 30mm (height) x 20mm (depth) - excluding DIP socket pins.

PRICE (1 off)
£66.42 +vat +p&p
