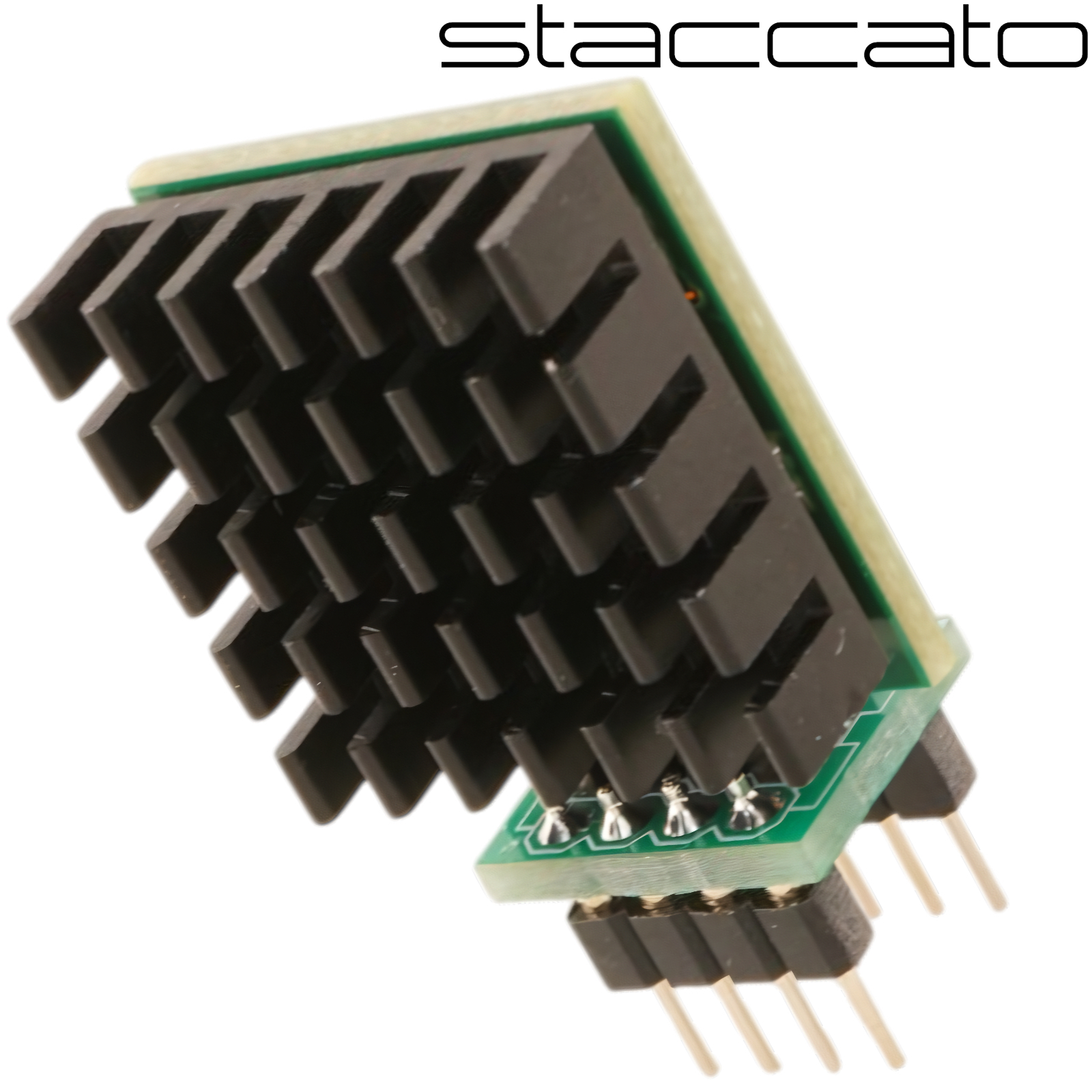

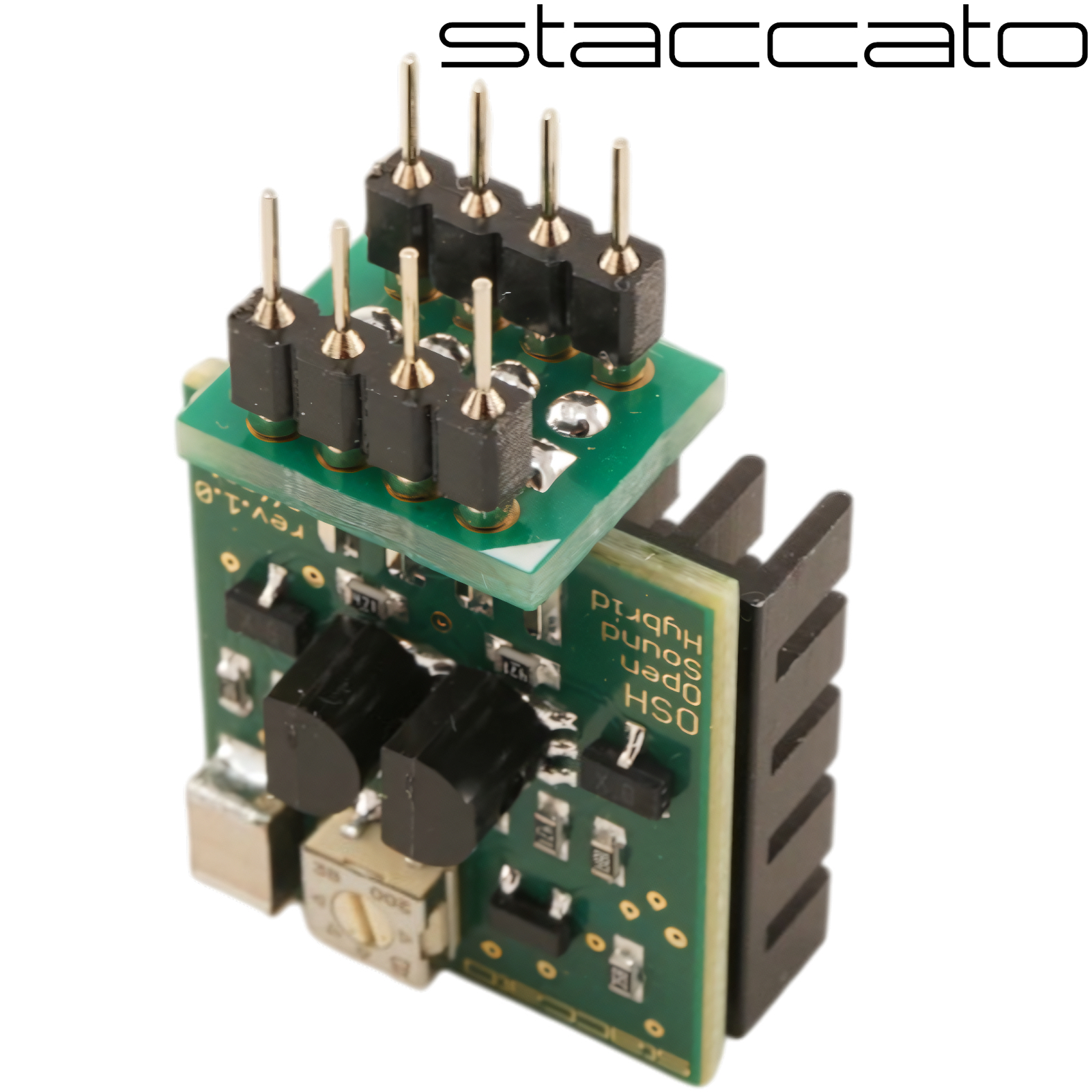

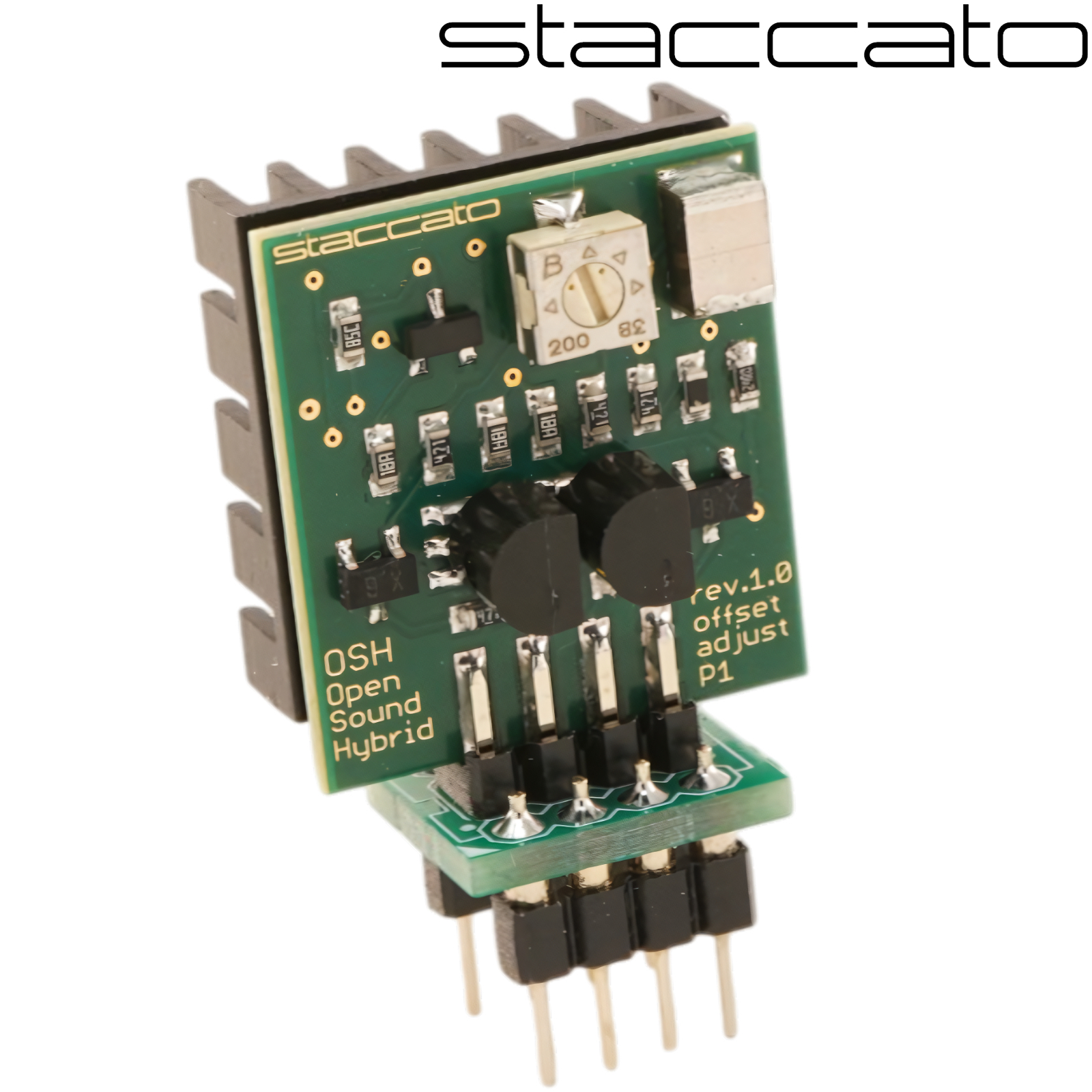

Staccato OSH-S Single Discrete Op-amp Open Sound Hybrid

The Staccato Open Sound Hybrid discrete op-amps are beautifully crafted. The circuitry receives macro treatment, designed to enhance the performance of high-end DACs and preamplifiers.

The use of JFETs in both the input and output stages, combined with a high bias current, results in low open-loop distortion dominated by the second harmonic. The output stage uses a source follower with an active current source, allowing it to deliver an output current greater than the bias current.

To fit, simply remove the original op-amp and replace it with the module. Make sure the orientation matches; pin 1 is marked with a dot. Please read the installation instructions below.

Compatible OP-AMPS are AD797, TL071, OPA145, LM741, OPA627, OPA827, MUSES03. If your op-amp isn't listed, please contact us for individual verification.

For further technical information, please read the datasheet below.

Dimensions: 14mm (width) x 35mm (height) x 20mm (depth) - excluding DIP socket pins.

PRICE (1 off)
£32.84 +vat +p&p
