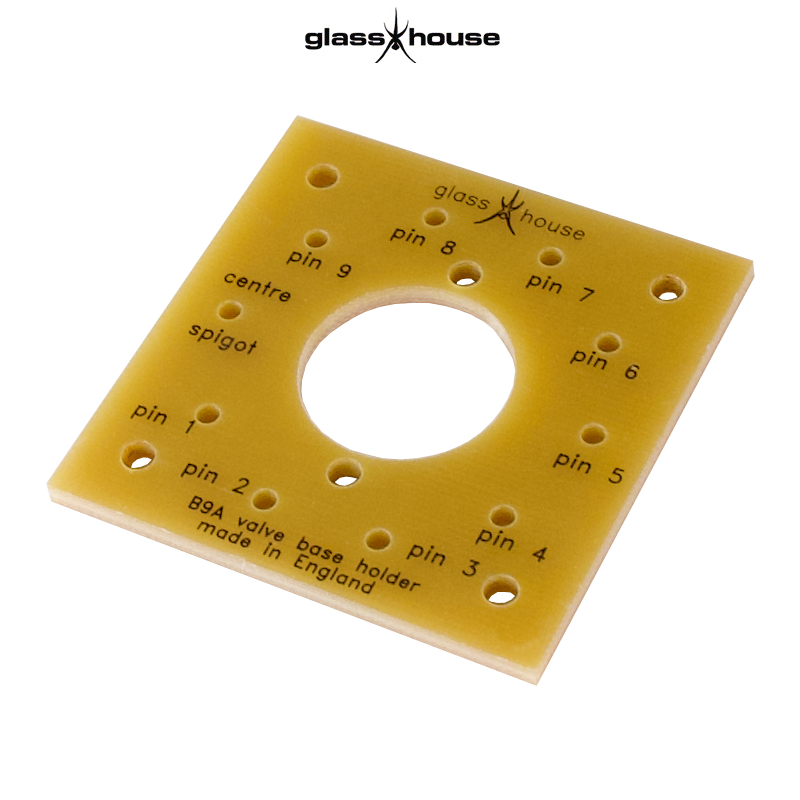

Glasshouse B9A valve holder tag board
Click to Zoom
The perfect solution for mounting a stand-alone B9A valve base in an enclosed chassis, providing links to the underside pins without having to turn the base over. The underside has a copper earth plate. Can fit any valve base sold by hificollective. Dimensions 55mm x 55mm x 3.2mm, FR4 material used, providing a stable base. Can be purchased with or without valve bases, standoffs, or turret tags.
PRICE 1off (with turret tags fitted)
silver plated turrets - £6.54+vat+p&p
gold plated turrets - £7.85+vat+p&p
PRICE 1off (without turret tags)
£3.50+vat+p&p
Suitable valve bases
| valve base description | fit type (min. standoff height) |
| CMC Bakelite B9A Chassis mount base | fit from above (20mm) & below (30m) |
| CMC Teflon B9A Chassis mount base | fit from above (20mm) & below (30m) |
| SK9CC22 chassis mount B9A | fit from above (15mm) & below (20m) |
| SK9CC22-G chassis mount B9A | fit from above (15mm) & below (20m) |
| Micalex, B9A chassis mount, from above fit | fit from above (10mm) |
| Micalex, B9A chassis mount, PCB pins, from above fit | fit from above (15mm) |
| VT9-ST-1: Belton B9A chassis mount valve base, mount from below | fit from below (20mm) |
| SK9PBC18: Black plastic bodied chassis mount B9A base | fit from above (15mm) |
| VT9-ST-2: Belton B9A chassis mount valve base, mount from above | fit from above (15mm) |
