Furutech FA-αS22 Alpha OCC Copper Balanced Interconnect Cable

Furutech’s α (Alpha) OCC is one of a select few conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC is made with high-purity oxygen-free copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process unique to Furutech.

Furutech’s Alpha (α) Process is a proprietary treatment applied to conductors and metal parts used in their cables and connectors. The process combines deep cryogenic freezing and ring demagnetisation to improve the electrical and mechanical properties of the metal.

Ratings:

• Max. Conductor Resistance: Ω／km 13.2 (JISC3005 6 20℃)
• Min. Insulation Resistance MΩ‧km >100 (JISC3005 9.1 20℃)
• CAPACITANCE: PF/M 84.1 at 1KHz
• IMPEDANCE: Ω 37.7 at 10 MHz
• INDUCTANCE: uH/M 1.55 at 1KHz
• Dielectric Strength: V／1 min. AC 1000 (JISC3005 8)

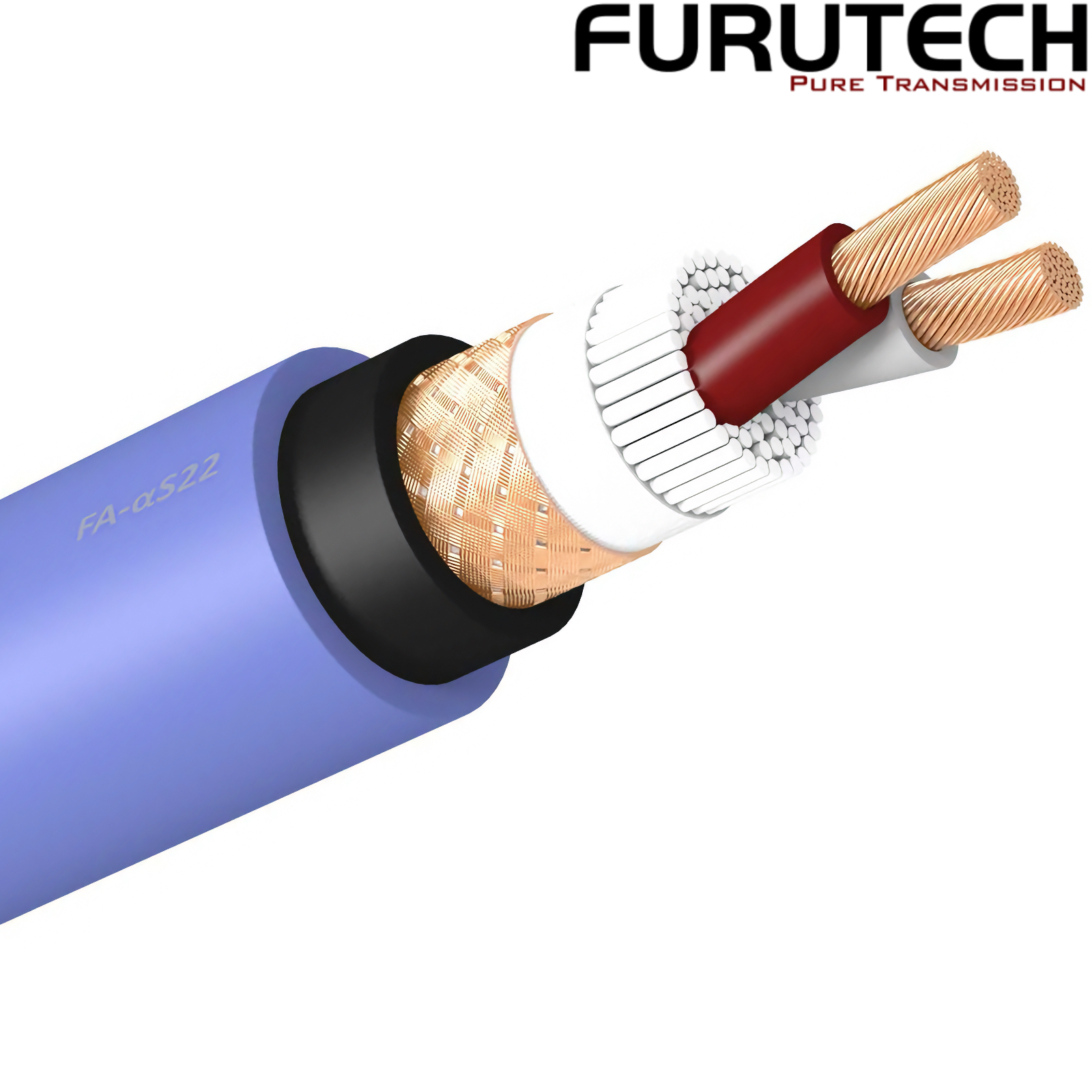

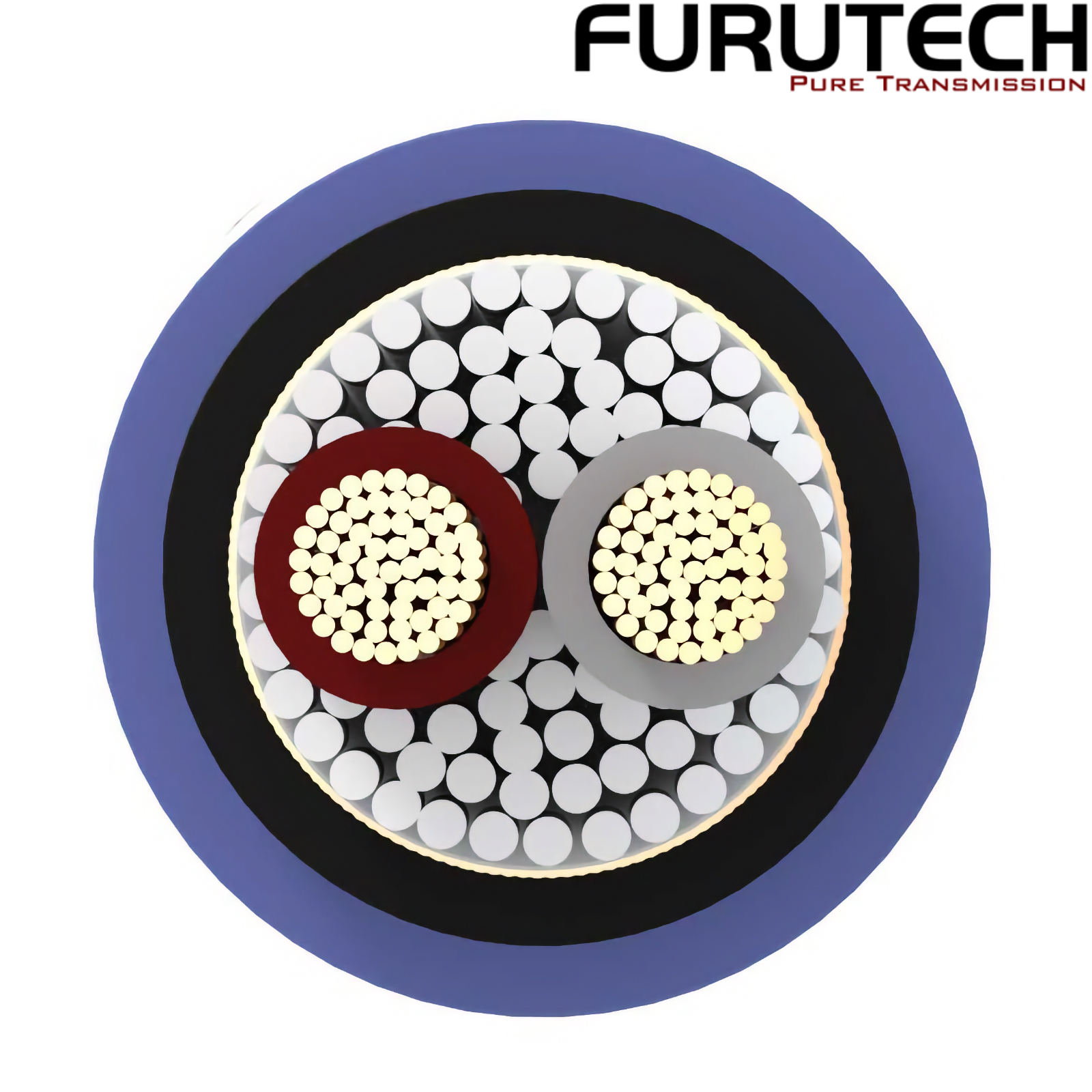

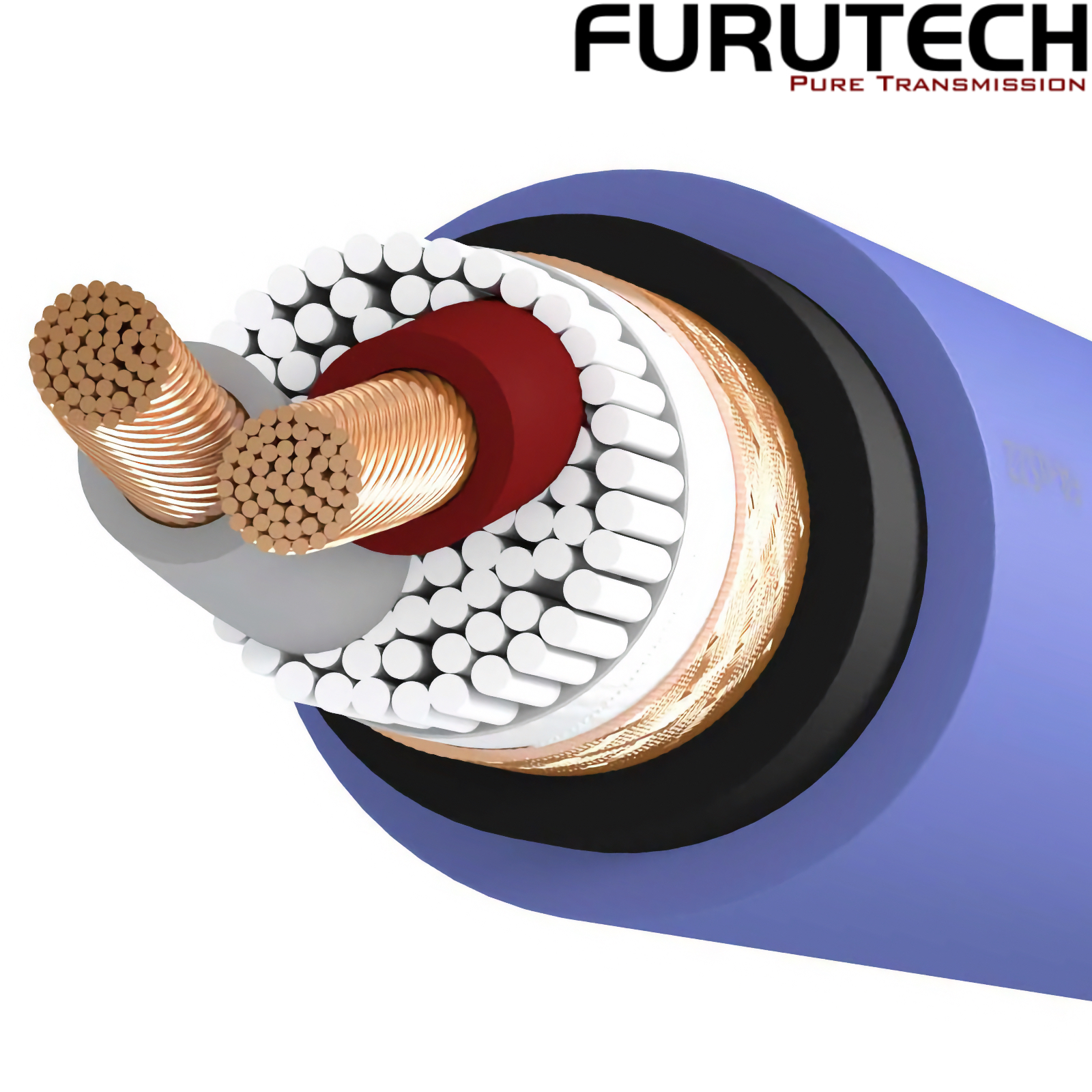

Specifications:

• Conductor Material: α(Alpha) OCC
• Construction（pcs／mm): 60pcs / ψ0.18 mm
• Insulation Material: Audio-grade PP (Red, White)
• Diameter: 2.6mm
• Twisting Method: 2 Cores Twisted Together
• Filler Material: Audio-grade damping cotton
• Barrier Layer Material: Stabiliser Paper Tape (Wrap)
• Shield Material: ψ0.12mm α (Alpha) Conductor wire braid
• Inner Sheath Material: Audio-grade flexible PVC (Black), incorporating damping carbon particles
• Diameter: 7.0mm
• Sheath Material: Audio-grade Flexible PVC (Purple blue)
• Nom. Thickness: 1.0mm
• Overall Diameter Approx.: 9.0mm

Sold in multiples of 0.5m, supplied in one continous length. If you require 2m, then simply order x4

PRICE (0.5m)
£28.70 +vat +p&p
