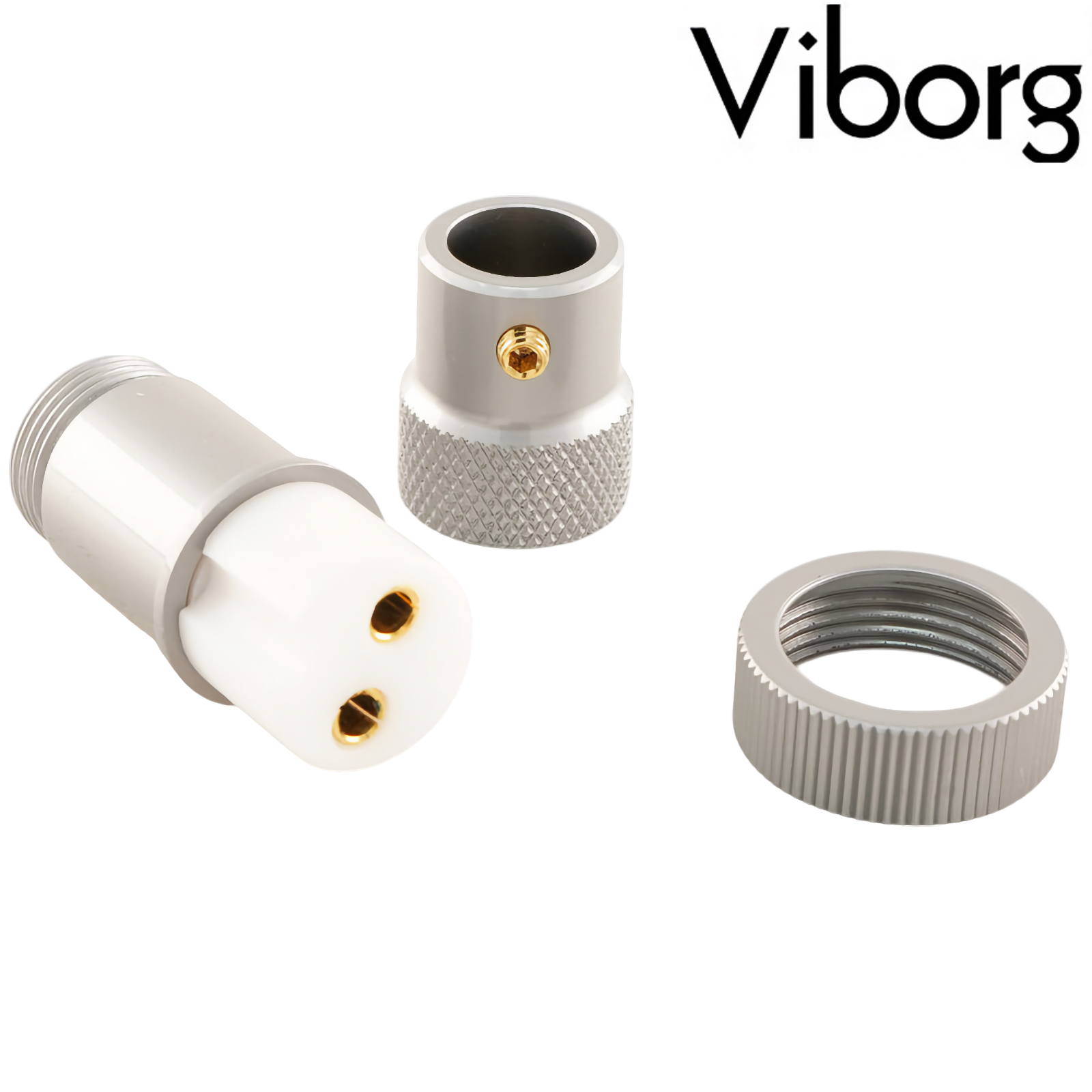

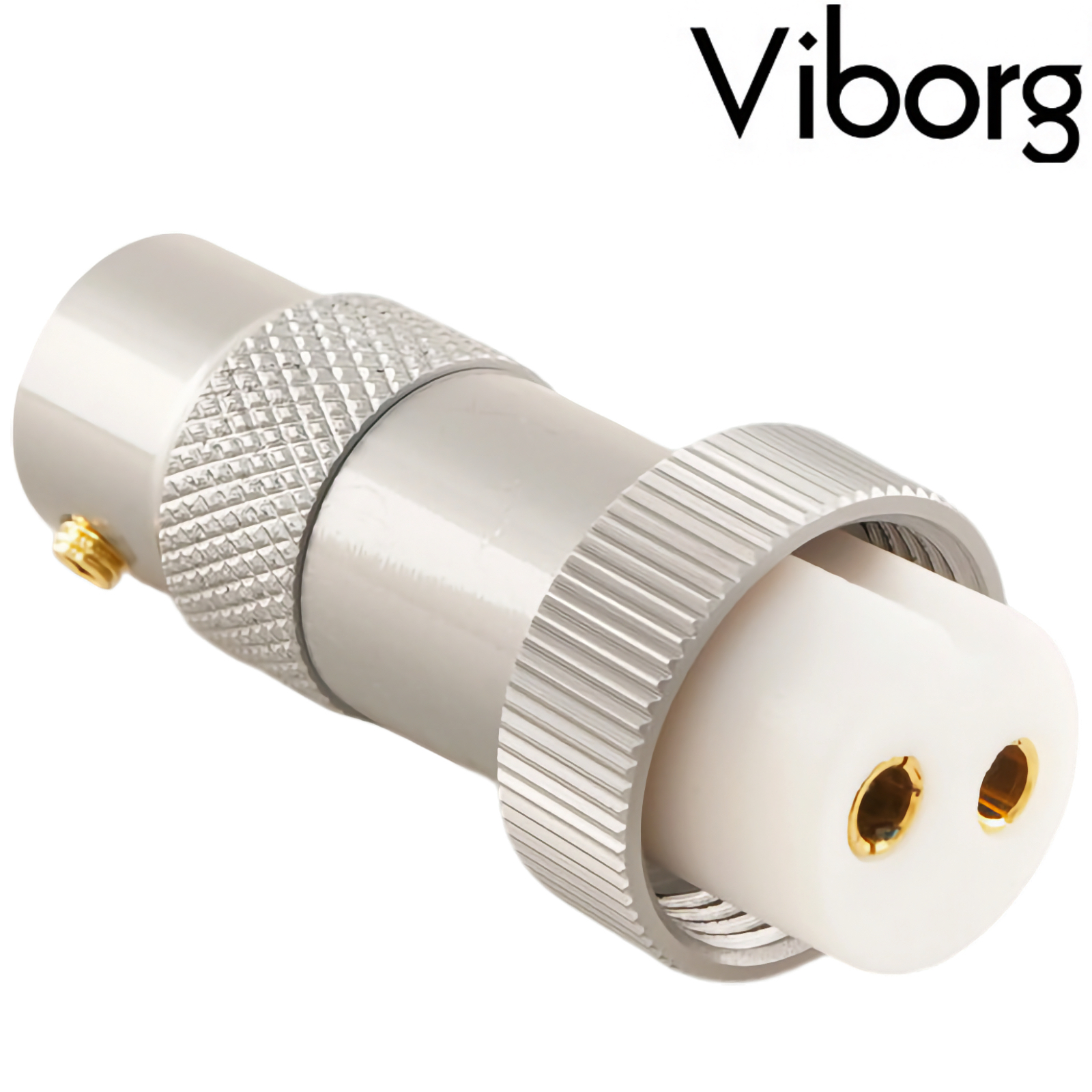

Viborg GM16G GX16 Male Connector, Gold-plated

The Viborg GM16G is a 2-pin male GX16 chassis connector, suitable for low-voltage power or control connections in DIY audio equipment. It features pure copper conductors with a 3-layer OFC copper, silver, and 3μ gold plating for excellent conductivity and resistance to corrosion and oxidation.

3-Layer Plating

1. Oxygen-free copper plating
2. Silver plating
3. 3μ gold plating

Specifications

• Connector Type: GX16 male chassis connector
• Pins: 2-pin
• Gender: Male chassis
• Conductor Material: Pure copper
• Panel Material: Gold-plated brass
• Insulation: PTFE
• Connection: Solder
• Max Wire Diameter: Up to 1.5mm

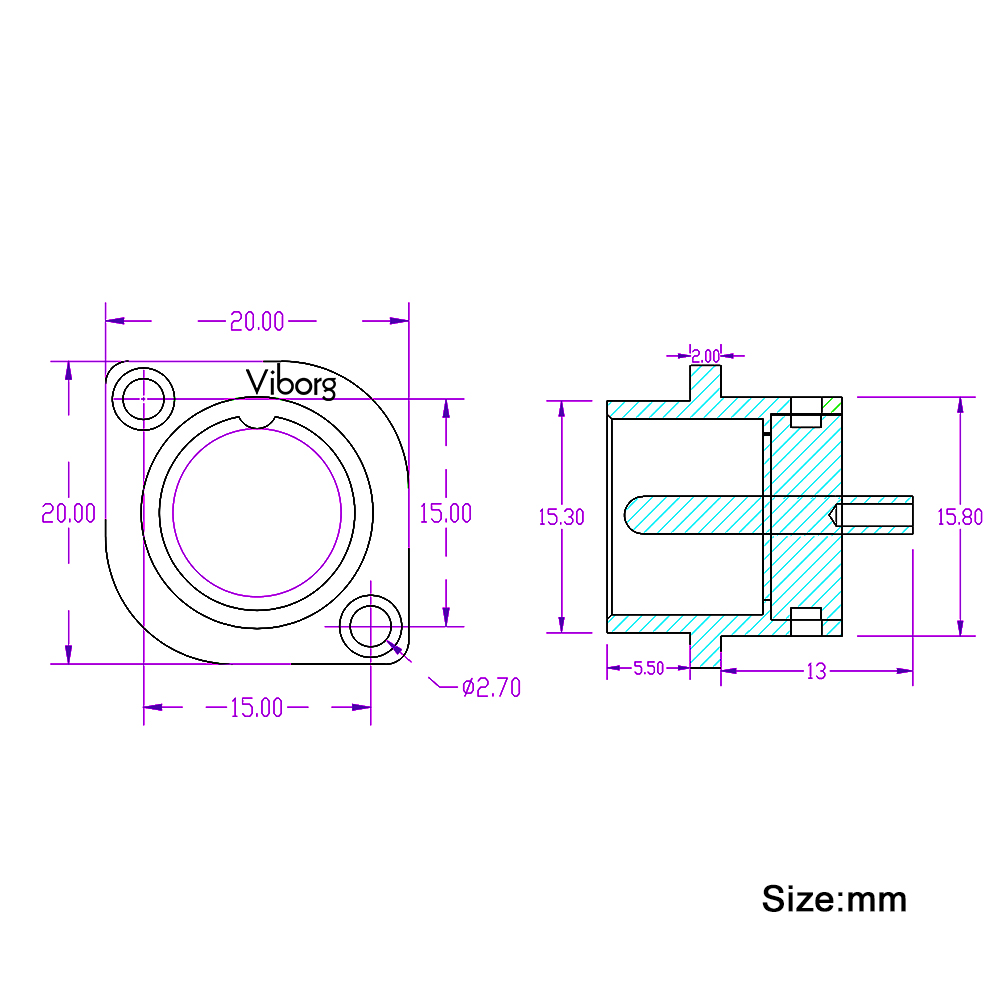

• Dimensions: Approx. 20 x 20 x 20mm
• Panel Cut-out: OD 15.8mm
• Required Depth: Over 13mm
• Rated Voltage / Current: 125V / 7A

PRICE (1 off)
£14.75 +vat +p&p
