Inside and Outside Flares
Click to Zoom
These superbly crafted flares are available in 70mm and 100mm diameter in the inside and outside versions. The outside version come with recessed screw holes for fitting. They feature in the Jantzen bass reflex sets. The straight sided tubes fit snuggly within the flares.
Full technical drawings and large pictures of the front and rear are available below.
Big Picture
large picture of 051-0028293.57 KB

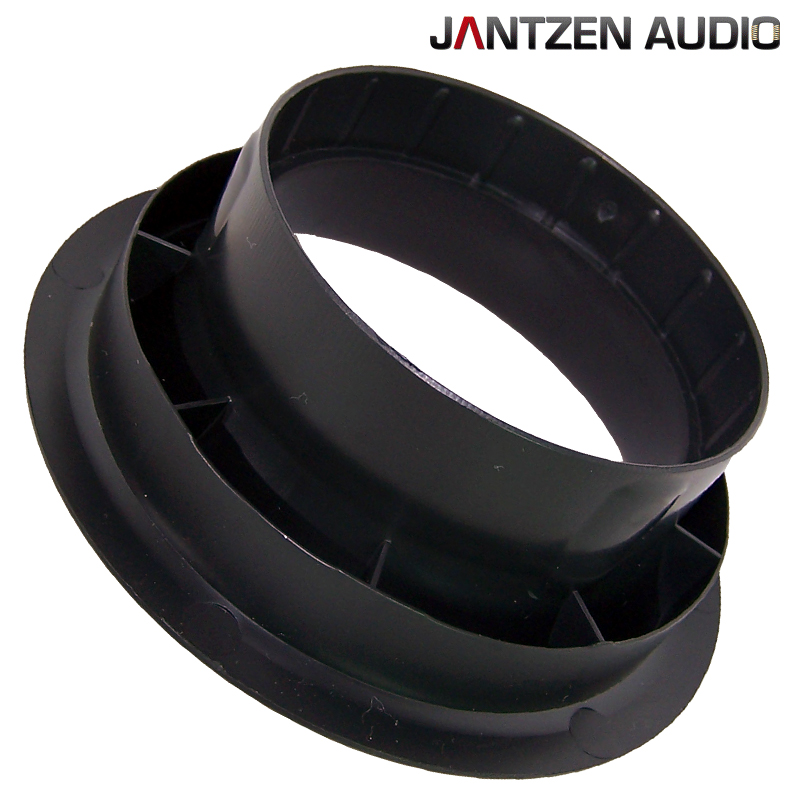

large picture of 051-0028 rear view325.26 KB
large picture of 051-0030308.68 KB

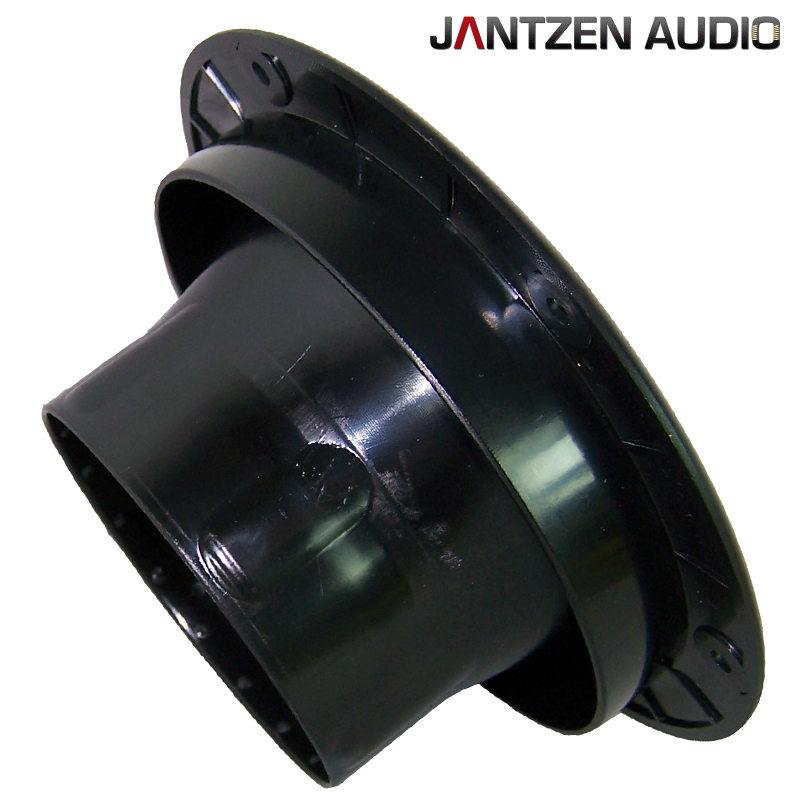

large picture of 051-0030 rear view314.04 KB
large picture of 051-0032 rear view283.76 KB
large picture of 051-0034311.74 KB
large picture of 051-0034 rear view343.65 KB

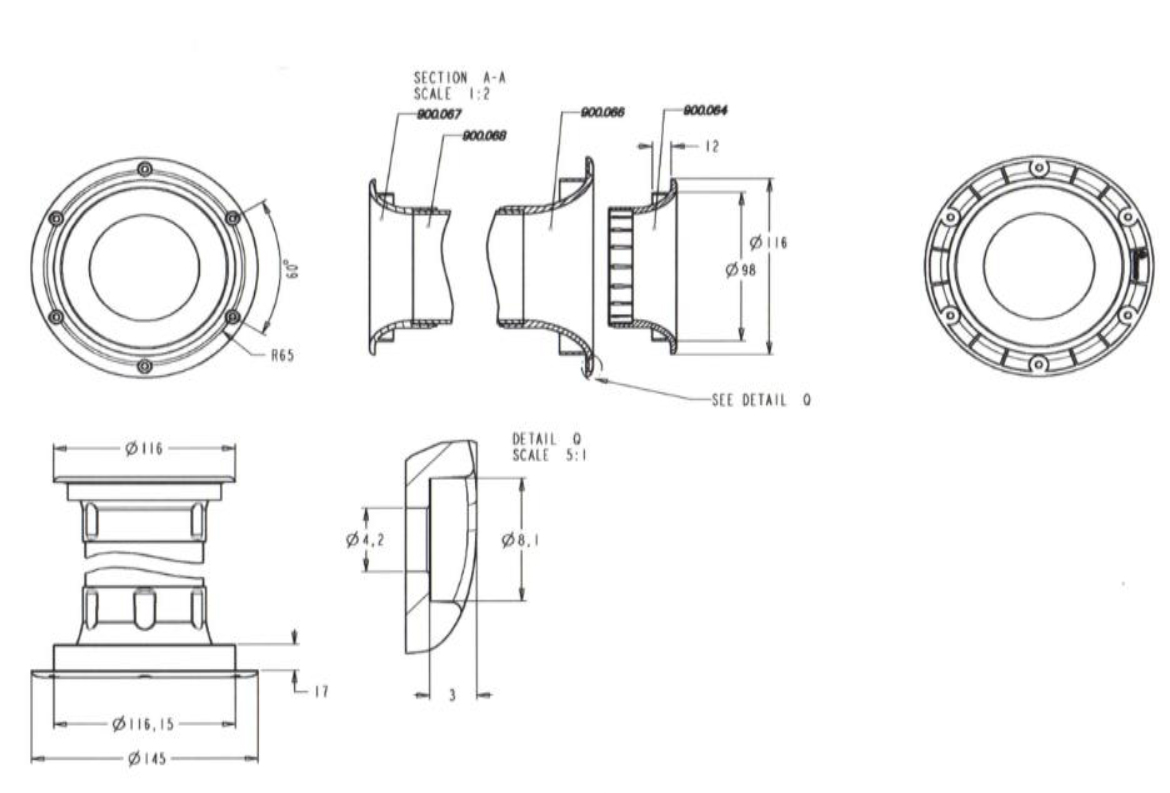

Drawing
PDF datasheet
Jantzen Port Datasheet1.84 MB
