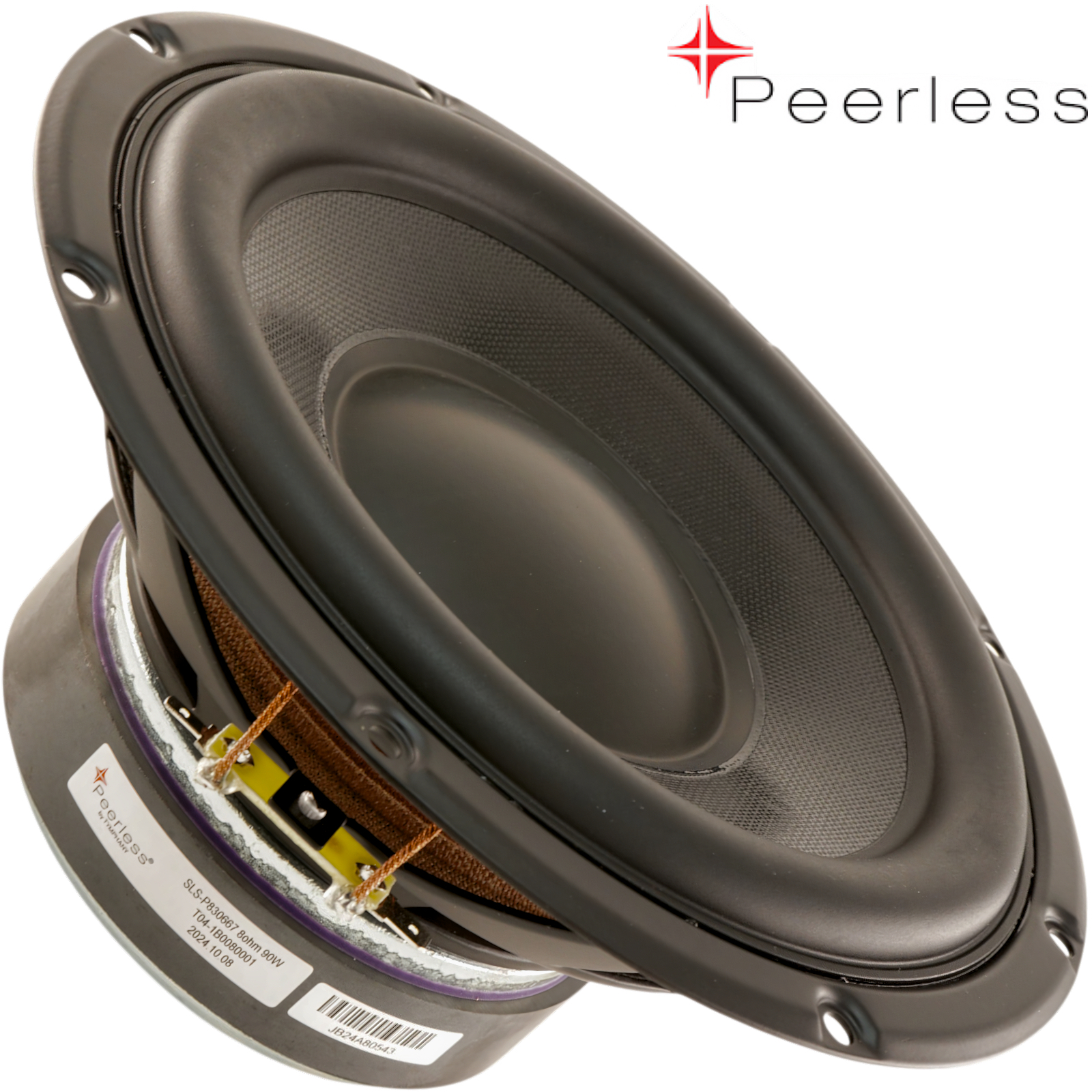

Peerless 830667, SLS-213, 8-inch Woofer, 8 ohm
The Peerless SLS-P830667 is a versatile and affordable 8-inch woofer suitable for a wide range of replacement, DIY loudspeaker and compact subwoofer applications. Its coated paper cone, long-throw rubber surround and 38.4 mm voice coil deliver controlled bass performance, while the ferrite magnet and aluminium shorting ring help extend the usable frequency range, reduce inductance and minimise distortion.
Built around a sculpted stamped-steel chassis, the P830667 combines dependable construction with a sensitivity of 86.5 dB at 1 m/2.83 V and a resonant frequency of 46 Hz. With its 8-ohm impedance and well-balanced design, it is an excellent choice for upgrading an existing speaker or building an effective 8-inch bass system.
Specifications:
- Nominal Diameter: 8"
- Power Handling (RMS): 90 Watts
- Impedance (Z): 6 Ω
- Sensitivity (SPL at 1 m / 2.83 V): 86.5 dB
- Frequency Response: 40–800 Hz
- Voice Coil Diameter: 38.4 mm
- DC Resistance (Re): 5.6 Ω
- Voice Coil Inductance (Le): 0.829 mH
- Resonant Frequency (Fs): 46 Hz
- Mechanical Q (Qms): 7.21
- Electromagnetic Q (Qes): 0.836
- Total Q (Qts): 0.75
- Diaphragm Mass Including Airload (Mms): 36.4
- Mechanical Compliance of Suspension (Cms): 0.33 mm/N
- Surface Area of Cone (Sd): 201 cm²
- BL Product (BL): 8.33 Tm
- Compliance Equivalent Volume (Vas): 19 litres
- Maximum Linear Excursion (Xmax): 11.1 mm
- Cone / Diaphragm Material: Coated paper
- Surround Material: Rubber
- Basket / Frame Material: Pressed steel basket
- Magnet Material: Ferrite
- Overall Outside Diameter: 213 mm
- Overall Depth: 111.4 mm
- Baffle Cutout Diameter: 178 mm
- Bolt Circle Diameter: Ø 5.2 mm
- Number of Mounting Holes: 8
PRICE (1 off)
£62.80 +vat +p&p
