Volt Loudspeakers SB2201 8" Sub Bass Driver, 8 Ohms

Click to Zoom
Volt Loudspeakers SB2201 8" Sub Bass Driver, 8 Ohms

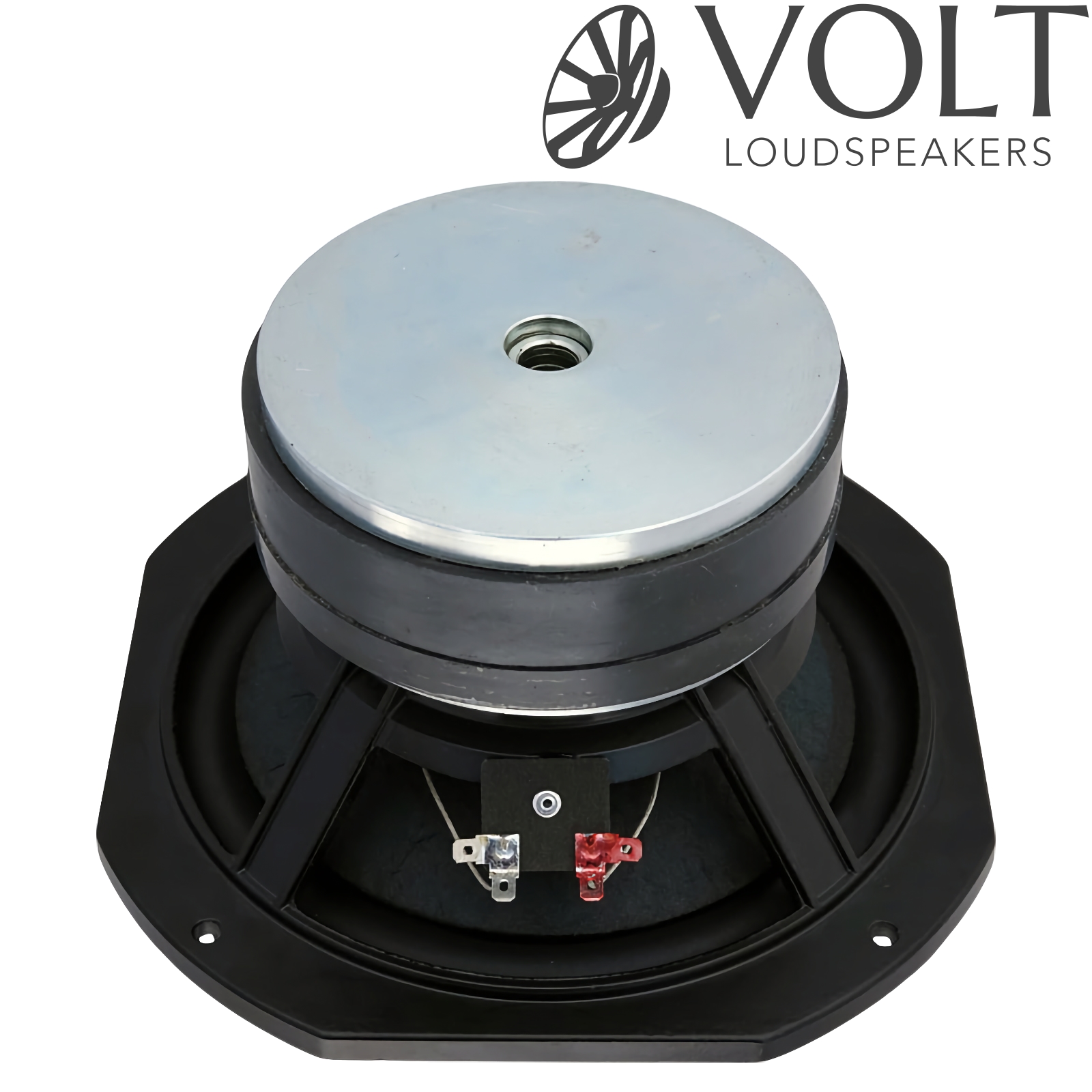

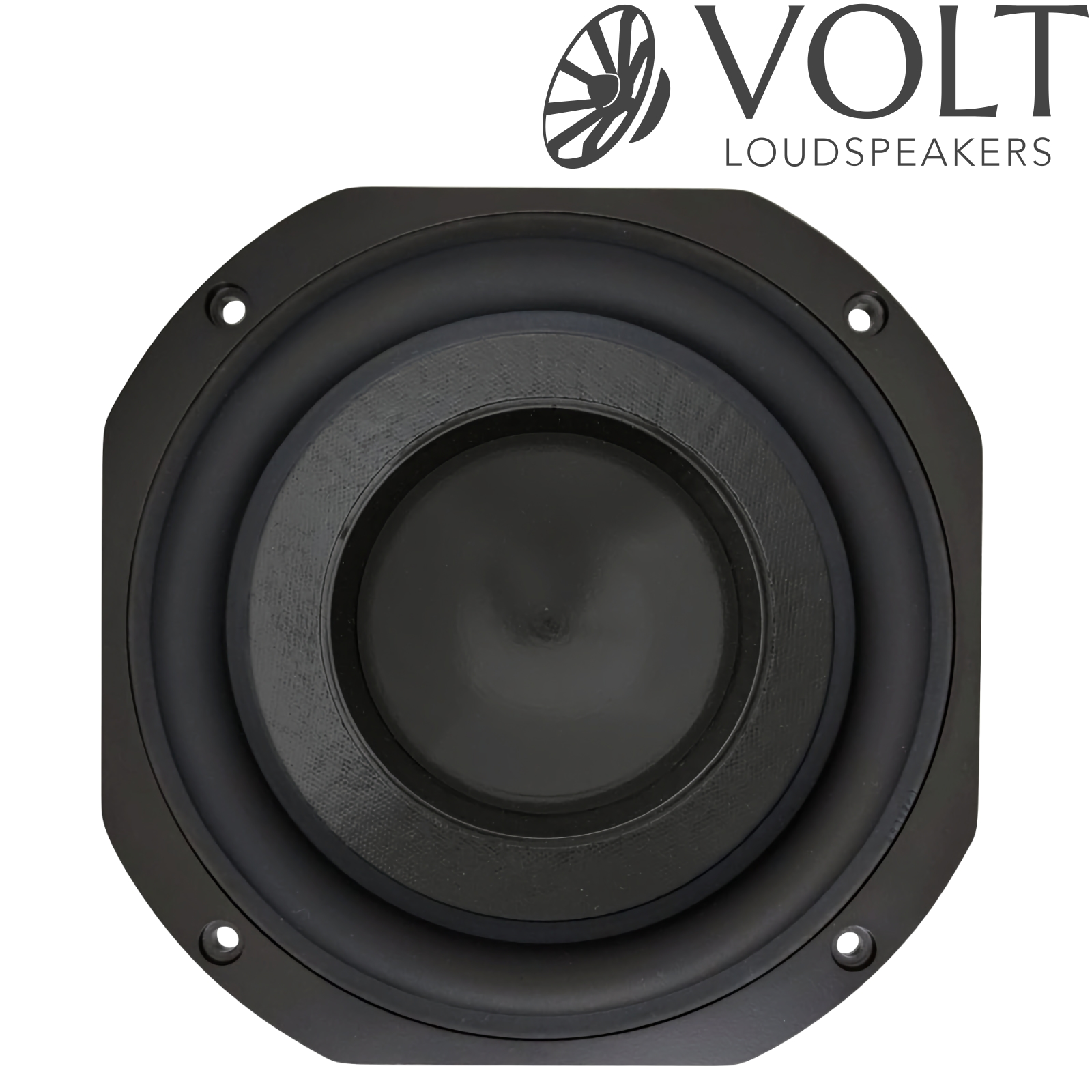

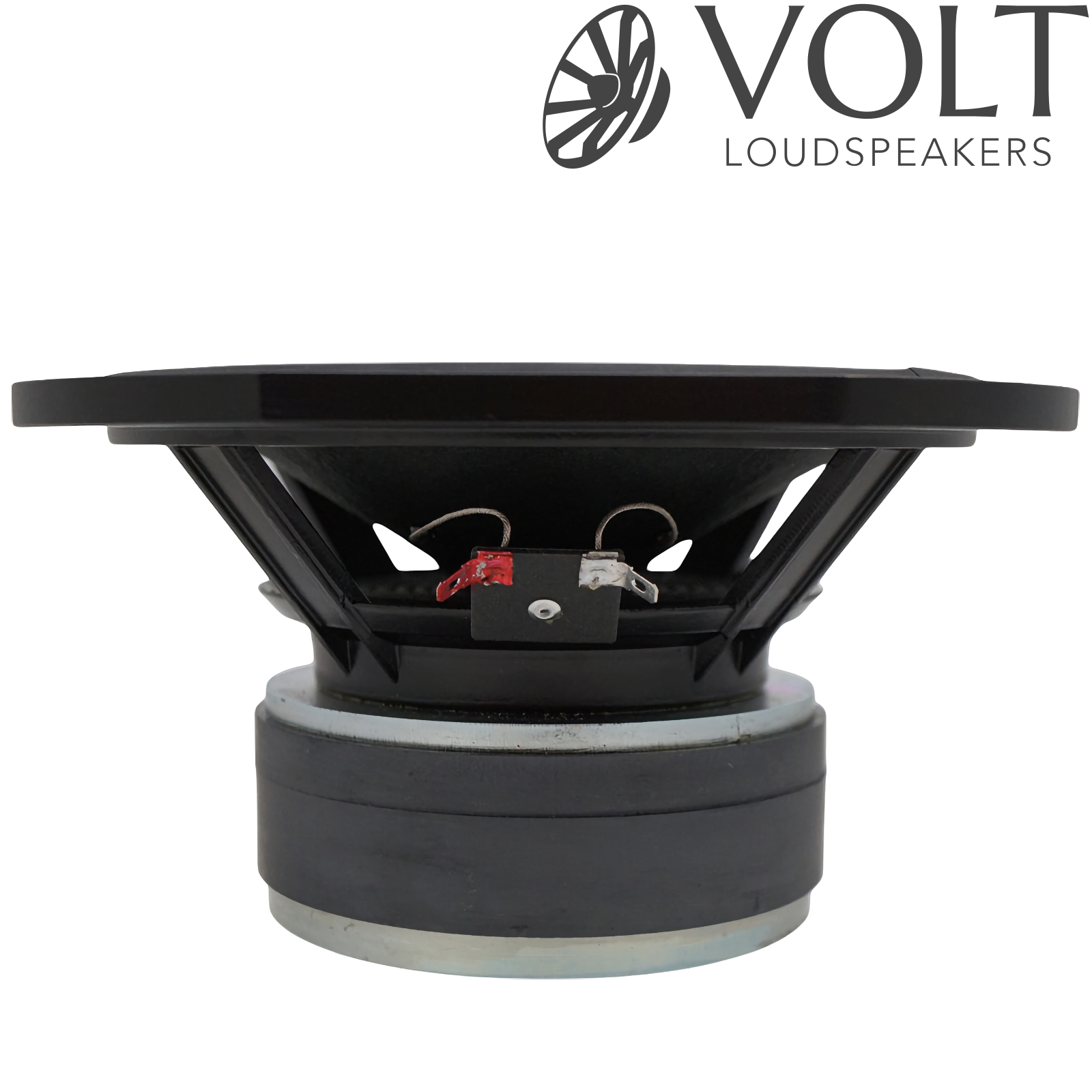

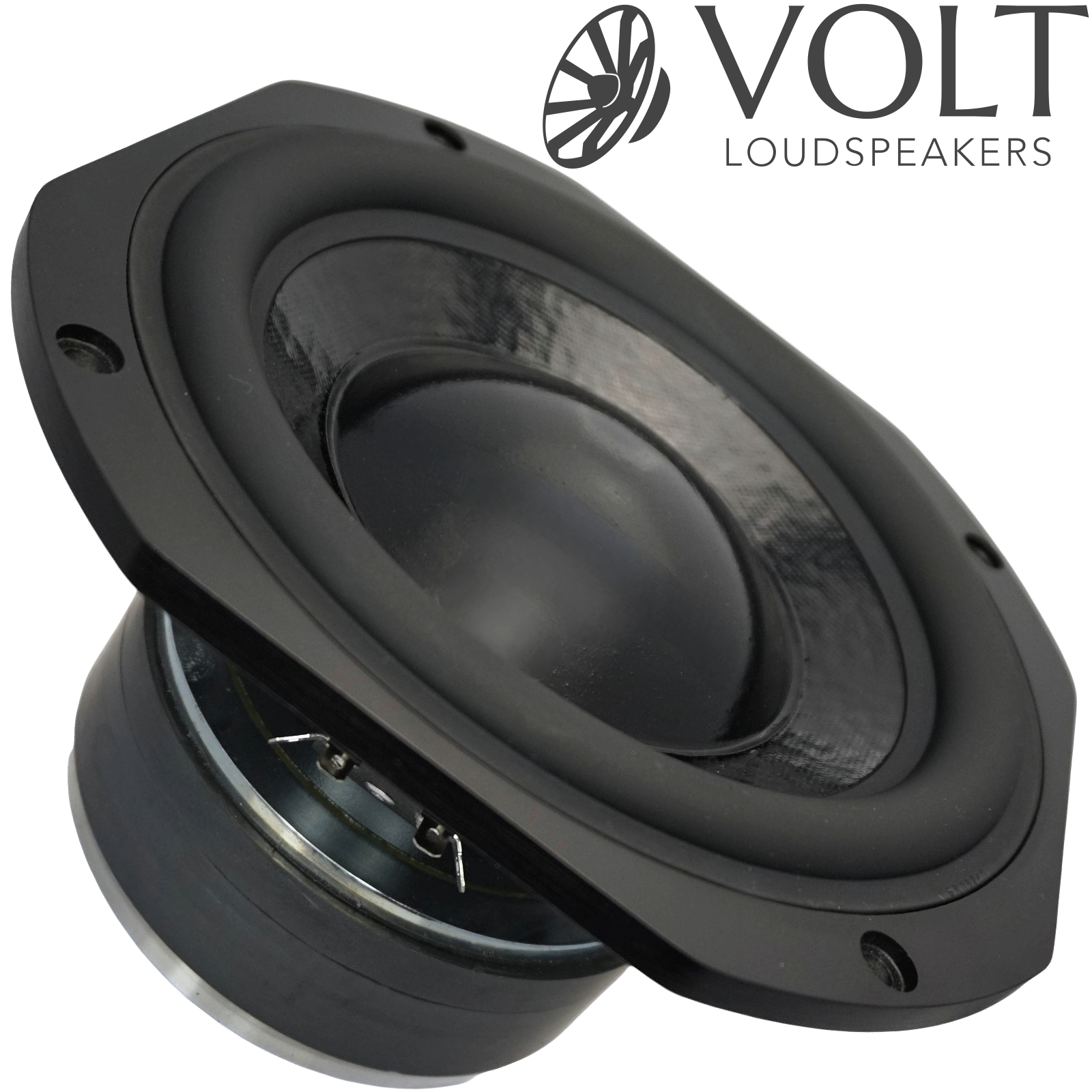

The SB220.1 uses a vented, symmetrical field magnet system with an exceptionally long voice coil for large linear excursion capability. The cone uses a long fibred pulp for rigidity and the dustcap is damped by a coat of glossy black dope. Suspension stiffness and excursion is optimised for tight control over high power transients. The Thiele-Small parameters are ideal for easy use in small sealed, vented or bandpass enclosures to give extended bass performance.

Specifications:

  • Model Number: SB220.1
  • Nominal Diameter (mm): 220
  • Power Rating (Watt AES): 150
  • Frequency Range (Hz): 20-1000
  • Nominal Impedance (Ohms): 8
  • Voice Coil Diameter (mm): 38
  • Voice Coil Height (mm): 30mm
  • Voice Coil Layers: 2
  • Magnet Gap Height: 6mm
  • Linear Excursion (XMax):± 12mm
  • Maximum Excursion: 30mm (before damage)
  • Volume Displaced (litres): 0.8
  • Connection: 5mm Solder Terminals
  • Chassis: Die-cast aluminium

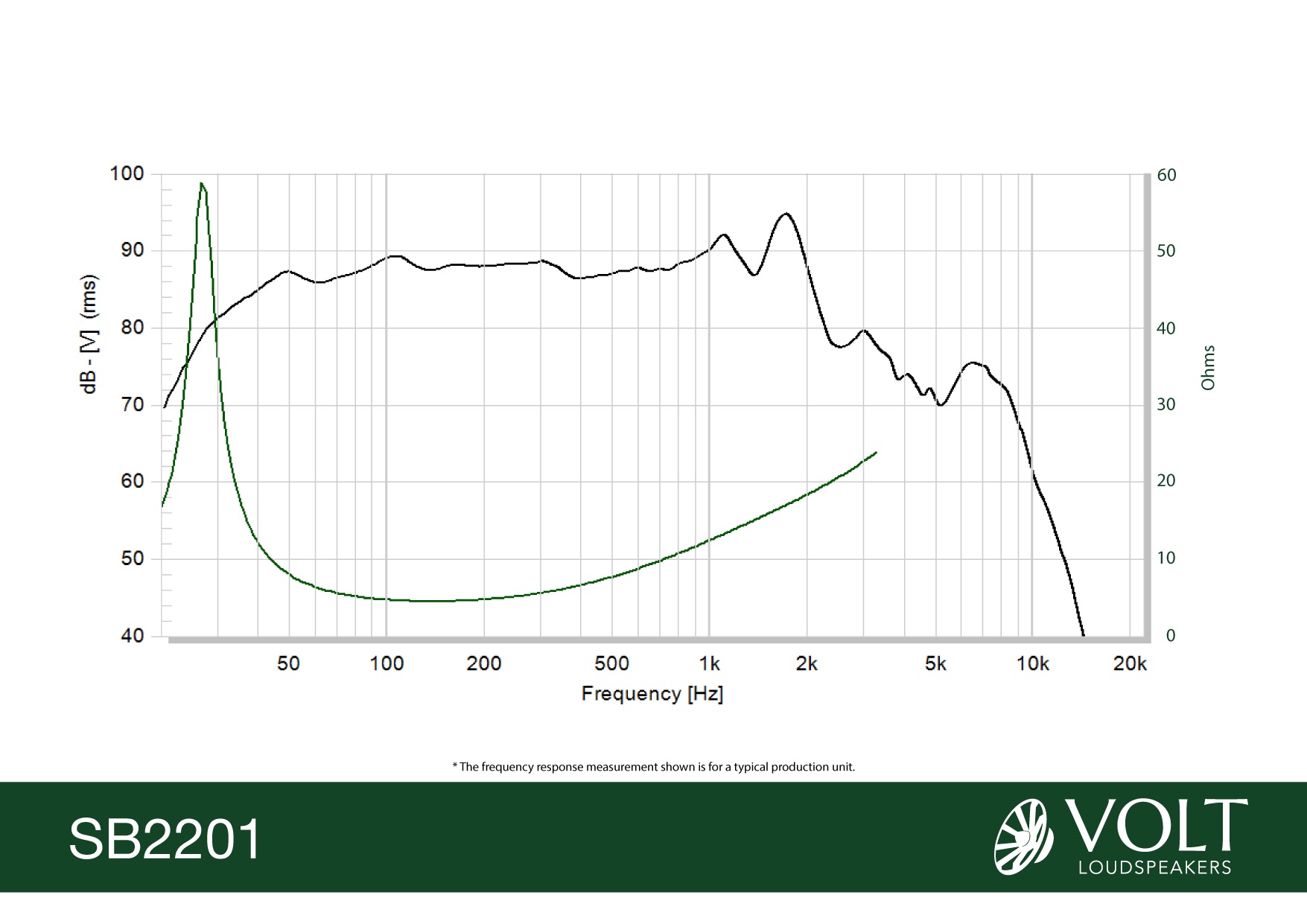

For even more information, please refer to the datasheet and graphs below.

PRICE (1 off)
£199.17 +vat +p&p

PDF datasheet
