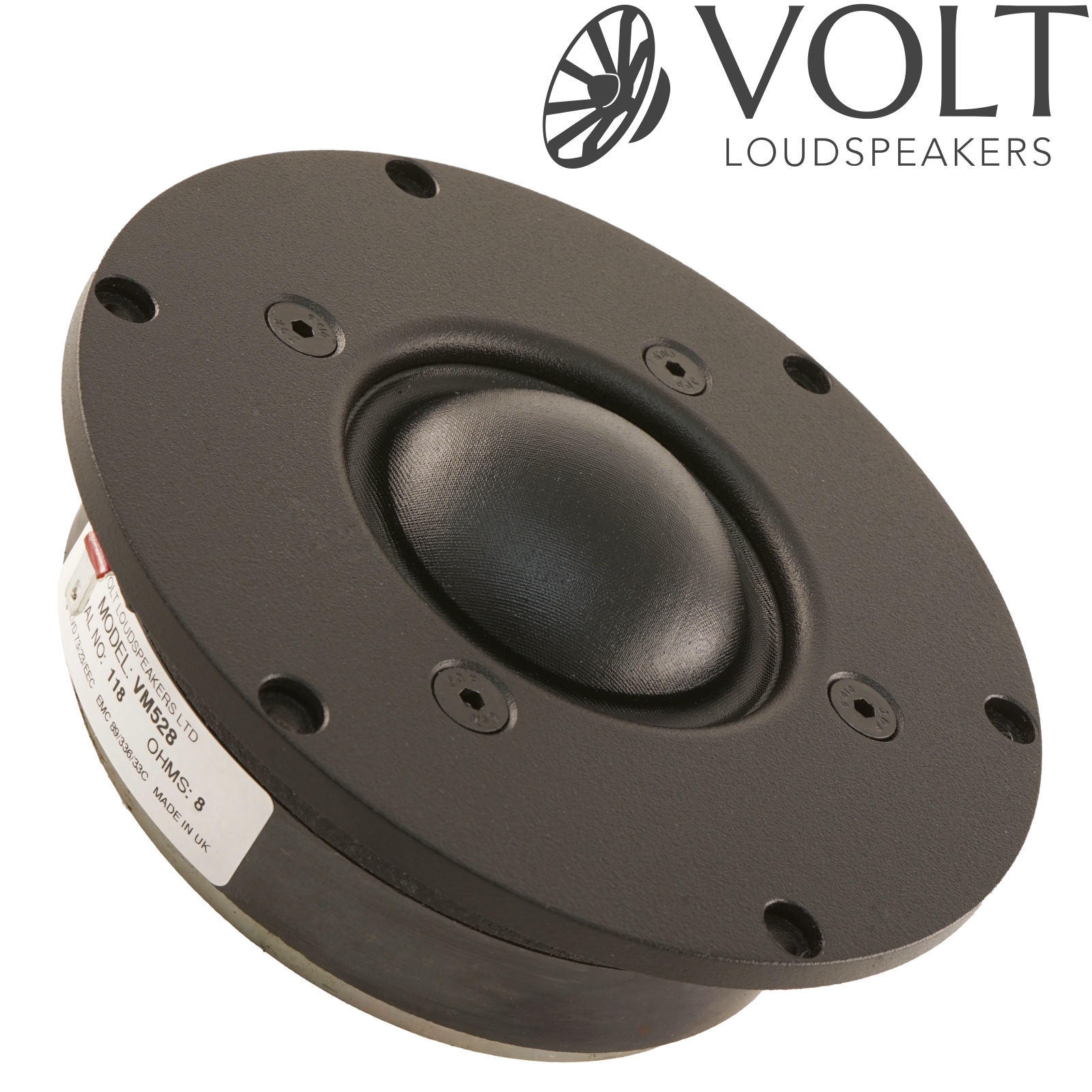

Volt Loudspeakers VM528 2" Midrange Dome, 8 Ohms, Studio Range

The VM528 is a 2" (52mm) soft midrange dome unit which has been designed for a smooth extended response with minimal colouration and low distortion over the critical midband frequencies.

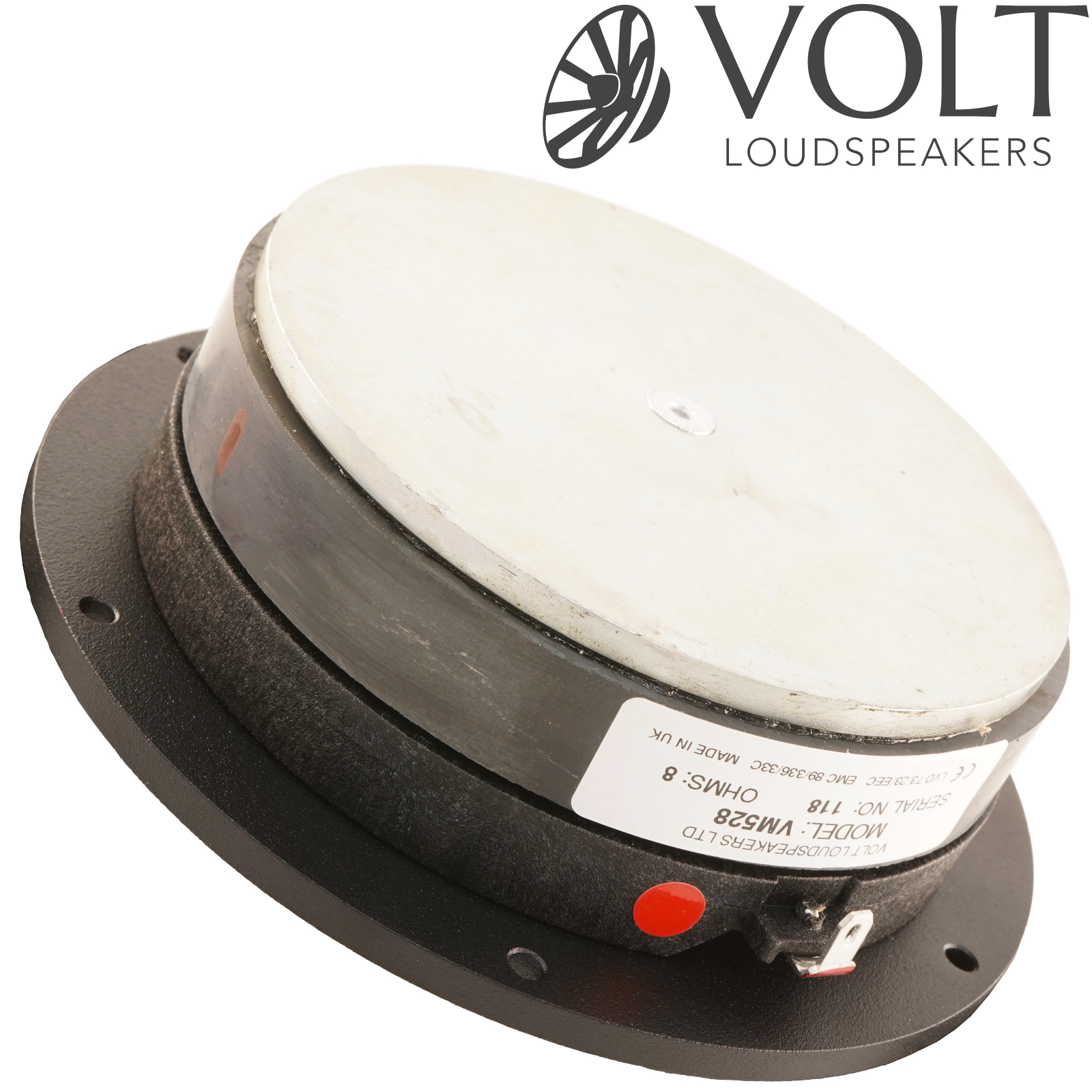

The coated one-piece fabric dome/surround is coupled with a lightweight, single-layer, round-wire copper voice coil for accurate transient response. The FEA-designed magnet system achieves a high magnetic flux density through precise gap clearance, enabling excellent heat dissipation for high-power handling and efficiency.

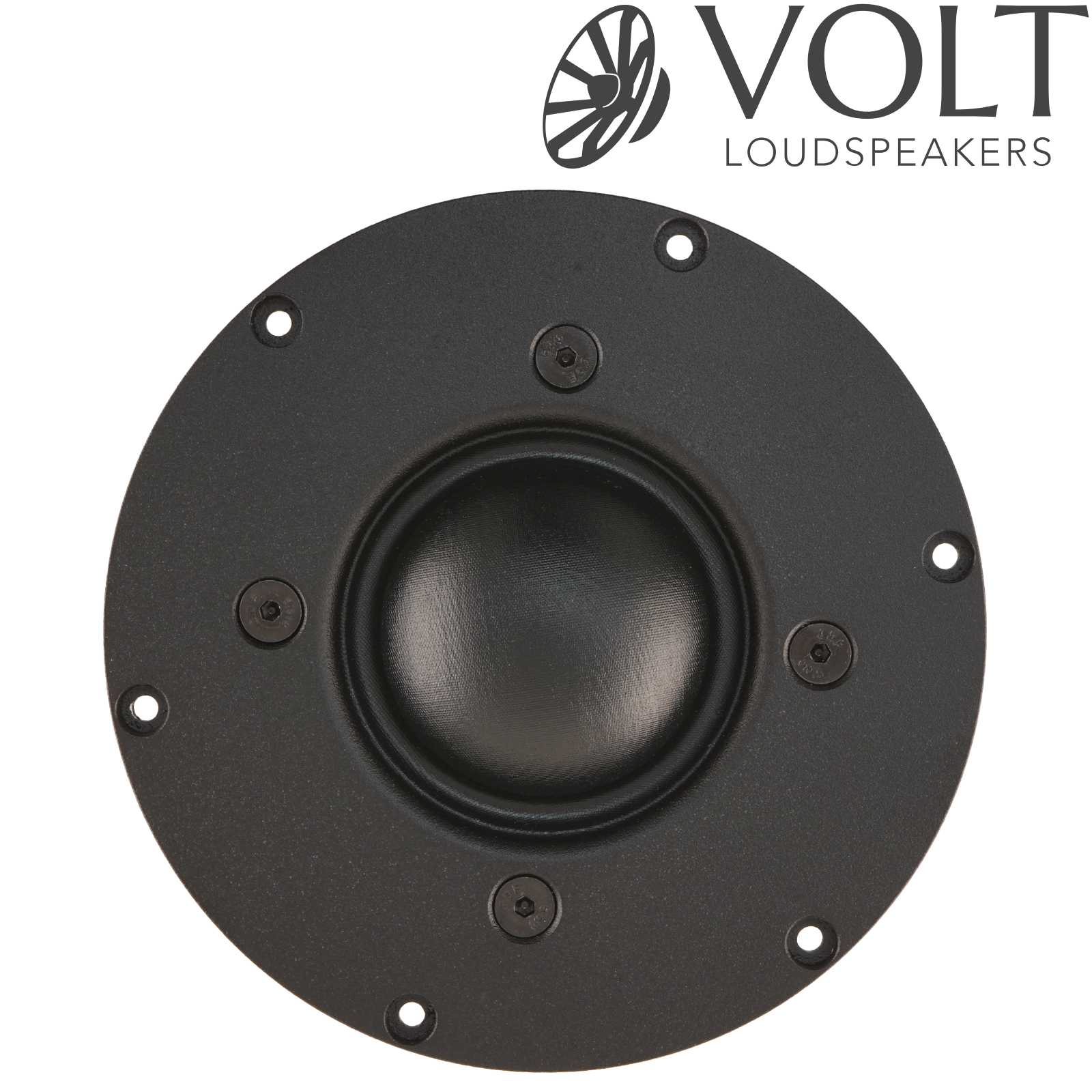

The flat, front mounting plate controls wide dispersion. The connection terminals are 4.8mm spade terminals, allowing soldering or push-on receptacles. The entire dome/coil assembly is mounted on a replaceable composite diaphragm ring that accurately self-locates, enabling easy field replacement.

Specifications:

• Model Number:VM528
• Nominal Diameter (mm): 140
• Power Capacity (Watt AES): 75
• Sensitivity (dB/watt/m): 89
• Frequency Range (Hz): 500-5000
• Impedance (Ohms): 8
• Voice Coil Diameter (mm): 52
• Voice Coil Material: Copper
• Maximum Excursion (mm): 2 (before damage)
• Volume Displaced (litres): 0.5
• Connection: 4.8mm solder terminals
• Chassis: Machined aluminium

For even more information, please refer to the datasheet and graphs below.

PRICE (1 off)
£184.17 +vat +p&p
