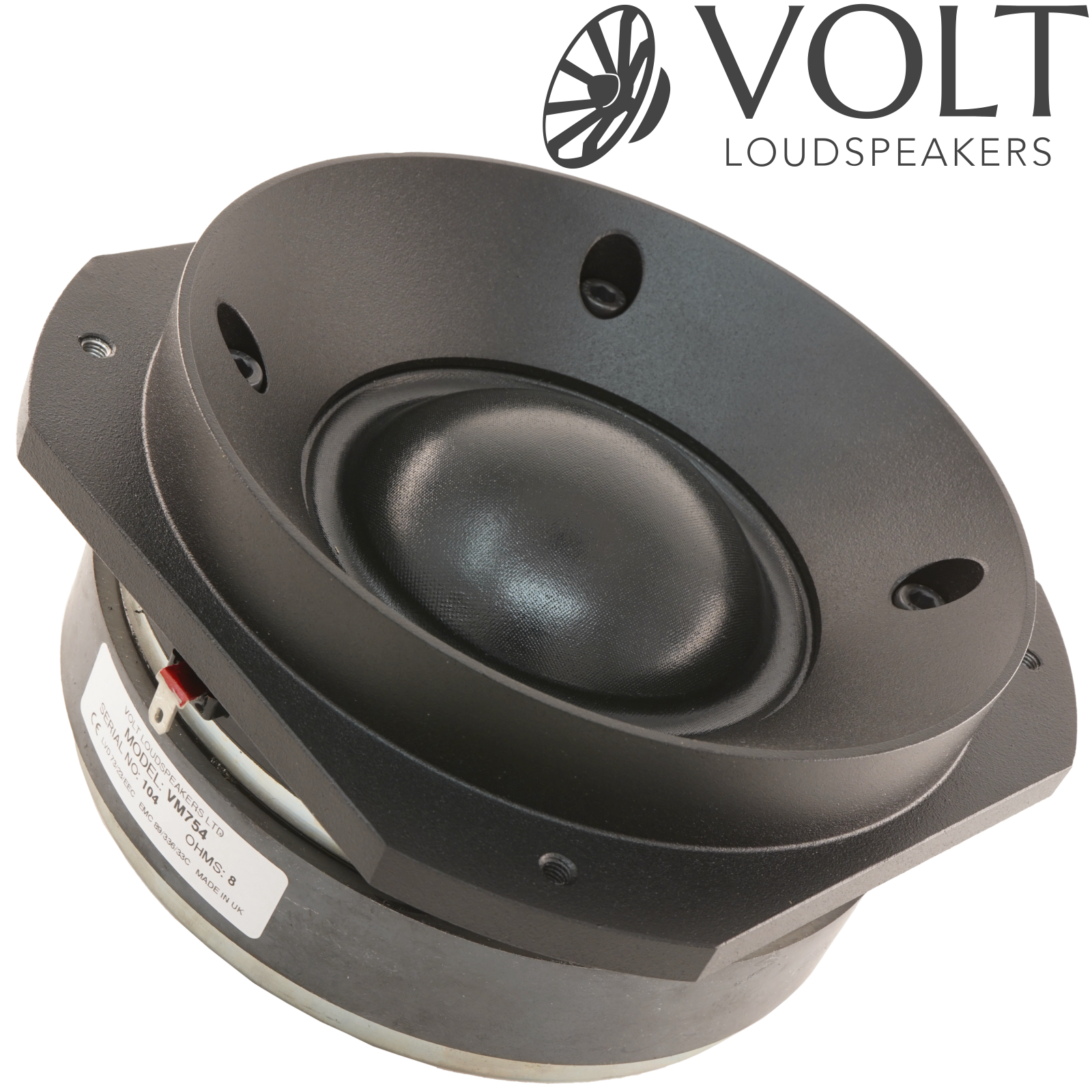

Volt Loudspeakers VM754 3" Midrange Dome, 8 Ohms, 155mm magnet, Studio Range

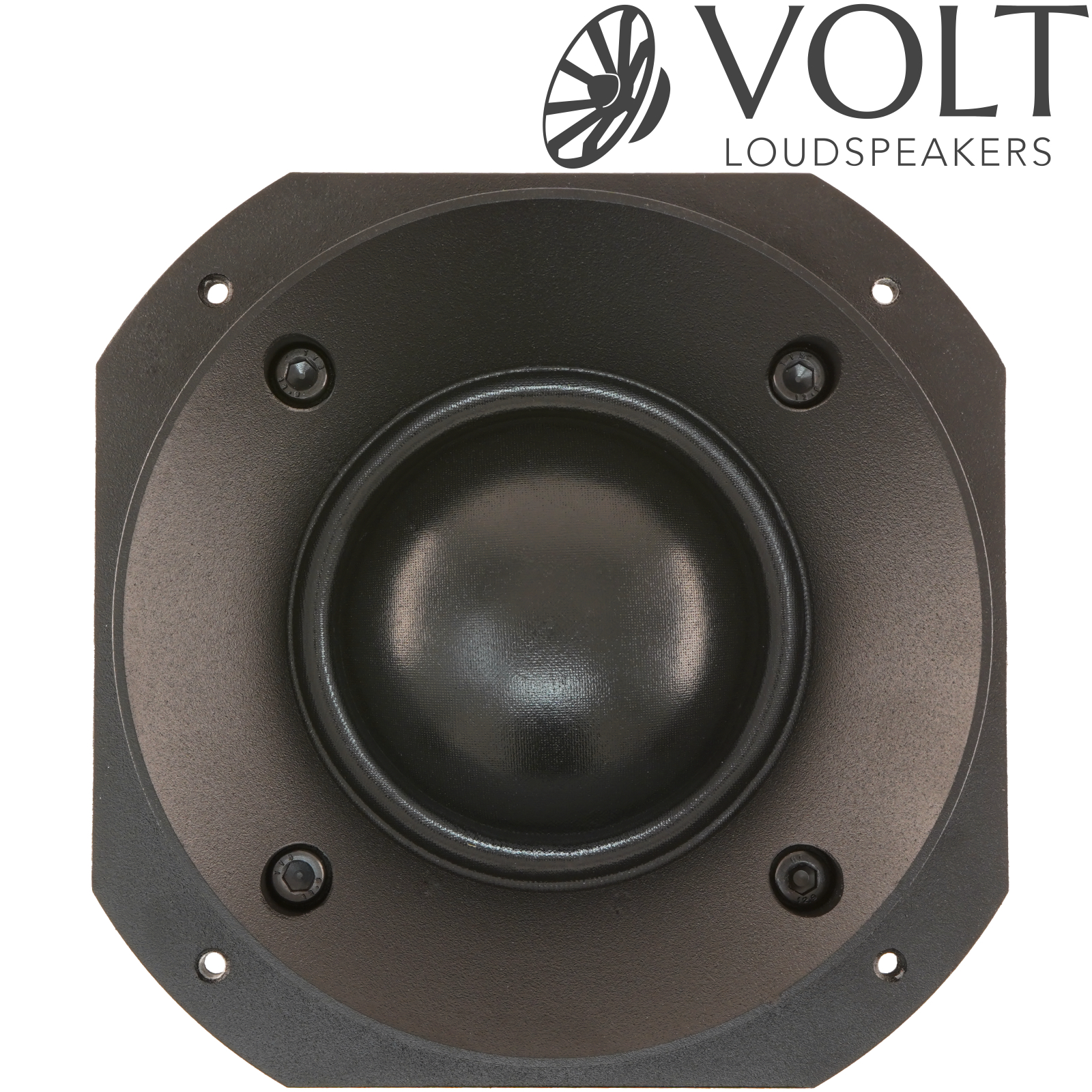

The VM754 is an 8 ohm version 3” (75mm) diameter dome unit loaded by a short, front-mounted horn. It uses a lightweight, single-layer, round-wire copper coil slightly longer than the focused magnet gap to allow for high excursions at the lower end of its operating range.

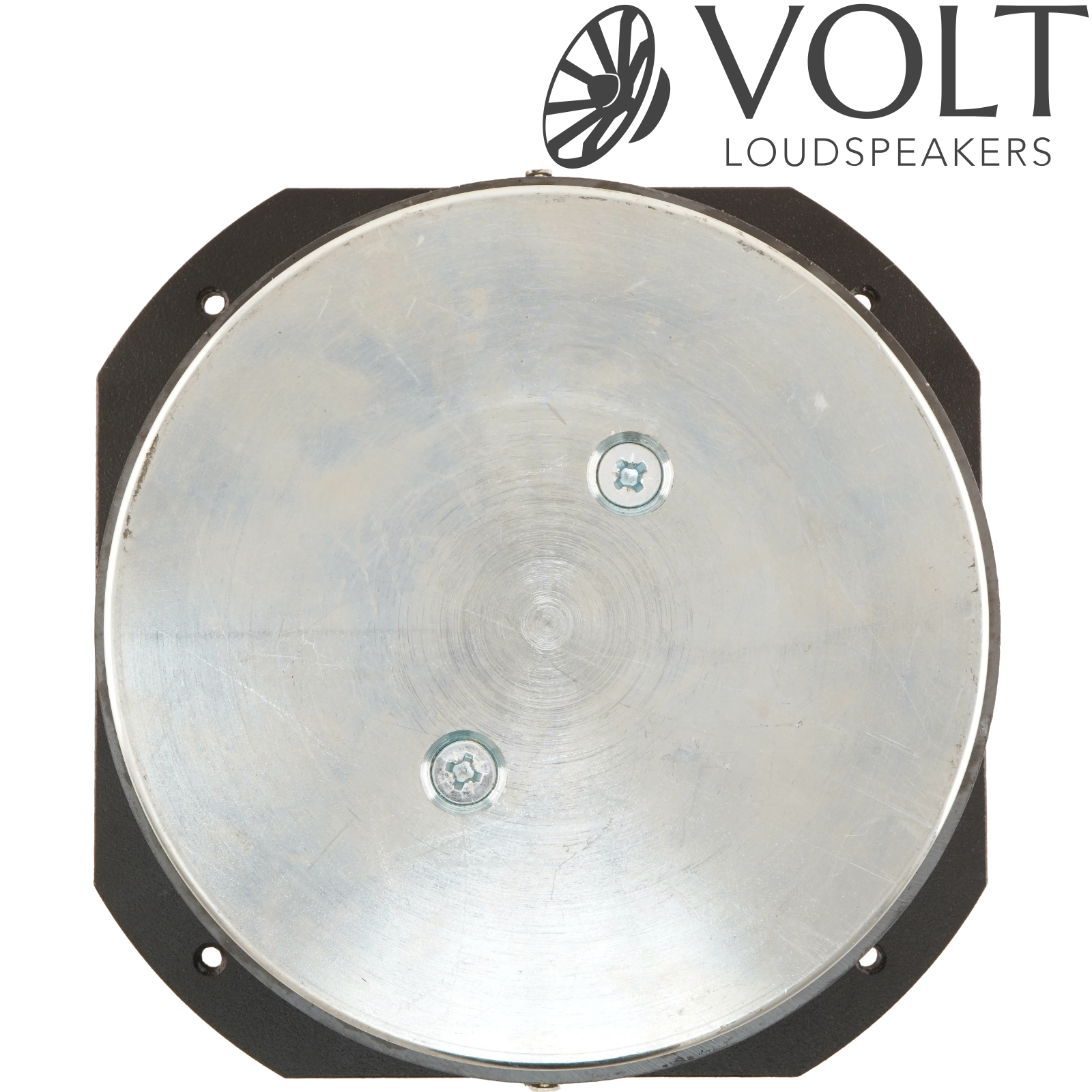

The one-piece fabric dome/surround is factory-coated for smoothness and consistent response; a second, rear surround maintains coil stability. An FEA-designed magnet system uses a 155mm ceramic magnet for high efficiency and is solidly fixed to a painted, aluminium chassis. The termination braids are hidden inside the unit and are not visible. Connection is by 4.8mm spade terminals, allowing soldering or push-on receptacles. The entire dome/coil assembly is mounted on a replaceable ring that accurately self-locates, enabling easy field replacement. The unit is intended for rear mounting. M5 threaded inserts are incorporated in the flange for fixing screws.
Specifications:
- Model Number:VM754
- Nominal Diameter (mm): 75
- Power Capacity (Watt AES): 100
- Sensitivity (dB/watt/m): 92
- Frequency Range (Hz): 450-4500
- Impedance (Ohms): 8
- Voice Coil Diameter (mm): 75
- Voice Coil Material: Copper
- Maximum Excursion (mm): 4 (before damage)
- Volume Displaced (litres): 1
- Connection: 4.8mm solder terminals
- Chassis: Machined aluminium
For even more information, please refer to the datasheet and graphs below.
PRICE (1 off)
£308.33 +vat +p&p
