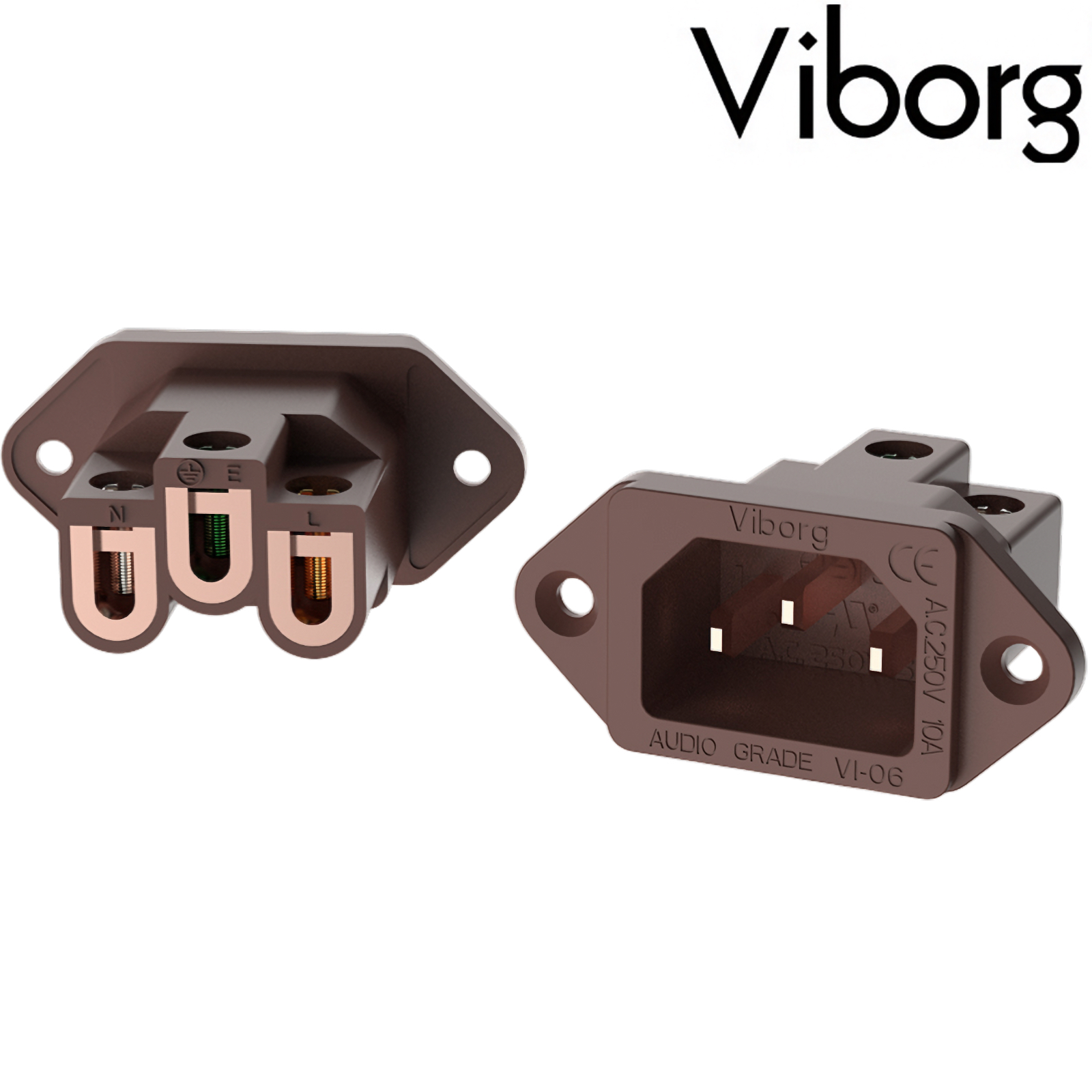

V106CC: Viborg IEC Inlet socket Pure Copper

99.998% pure copper IEC C13/C15 chassis mount socket from Viborg.

Specifications:

• Conductor: Pure Copper(99.998%)
• Connect: Screws Locking
• Type: 2-pole+earth
• House: PBT and Fibreglass Housing
• Specifications: Accommodates Wire Diameters up to 4mm (Set-screw)

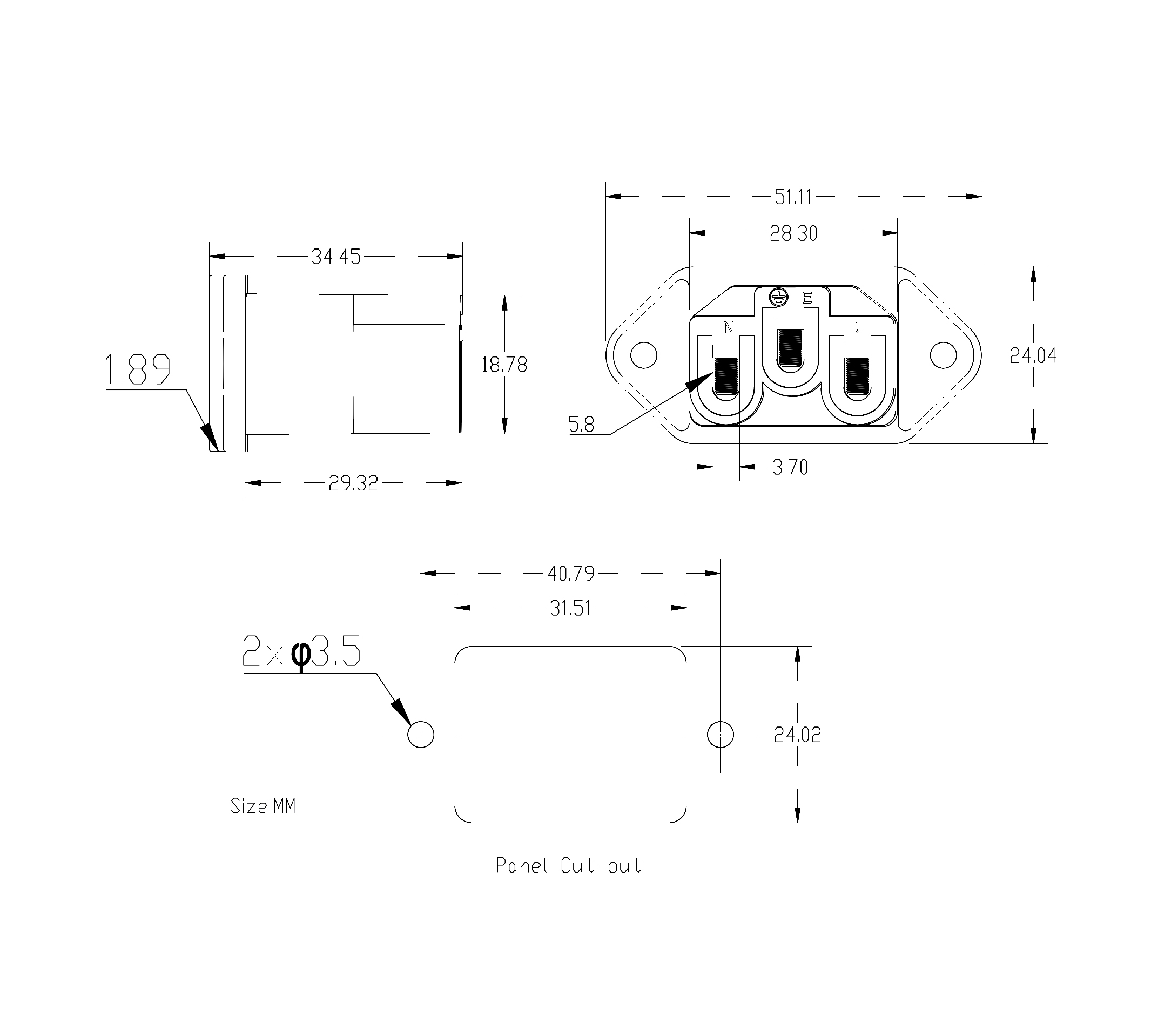

• Dimensions: 51mm (W) x 18.8mm (D) x 27.73mm (H)
• Chassis cutout rectangular 24.02mm x 31.51mm, 3.5mm diameter fixing holes, with centres 40.79mm apart
• Rated: A.C. 250V 15A

PRICE (1 off)
£10.42 +vat +p&p
