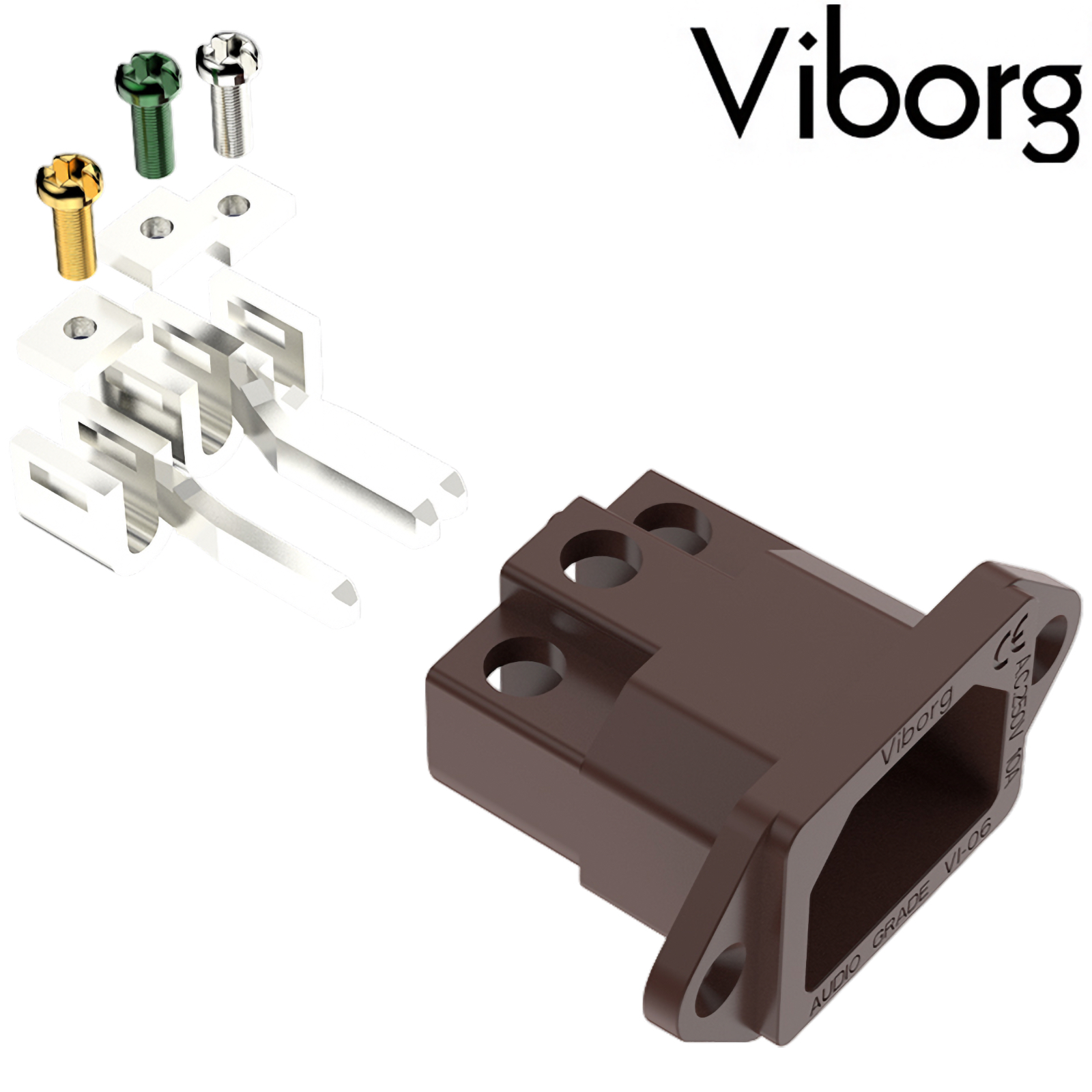

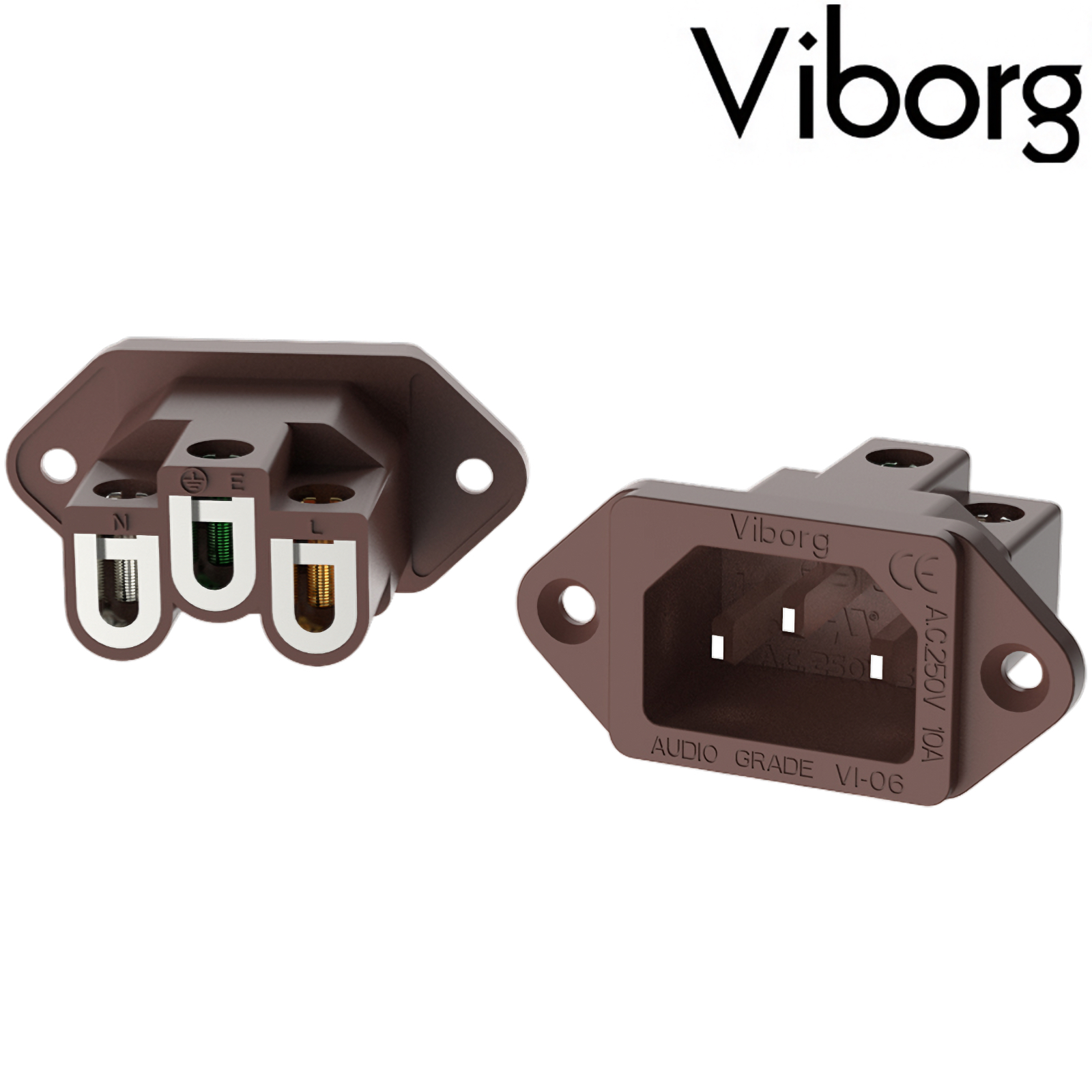

Viborg V106CR IEC Inlet socket Pure Copper, Rhodium-plated

99.998% pure copper IEC C13/C15 chassis mount socket from Viborg, with three-layer plating: OFC copper, electroless silver plating, and finally, Rhodium plating. Superb build quality.

3-Layer Plating:

1. Oxygen Free Copper Plating
2. Electroless Silver Plating
3. Rhodium Plating

Specifications:

• Conductor: Pure Copper (99.998%)
• Connect: Screws Locking
• Type: 2-pole+earth
• House: PBT and Fibreglass Housing
• Specifications: Accommodates Wire Diameters up to 4mm (Set-screw)

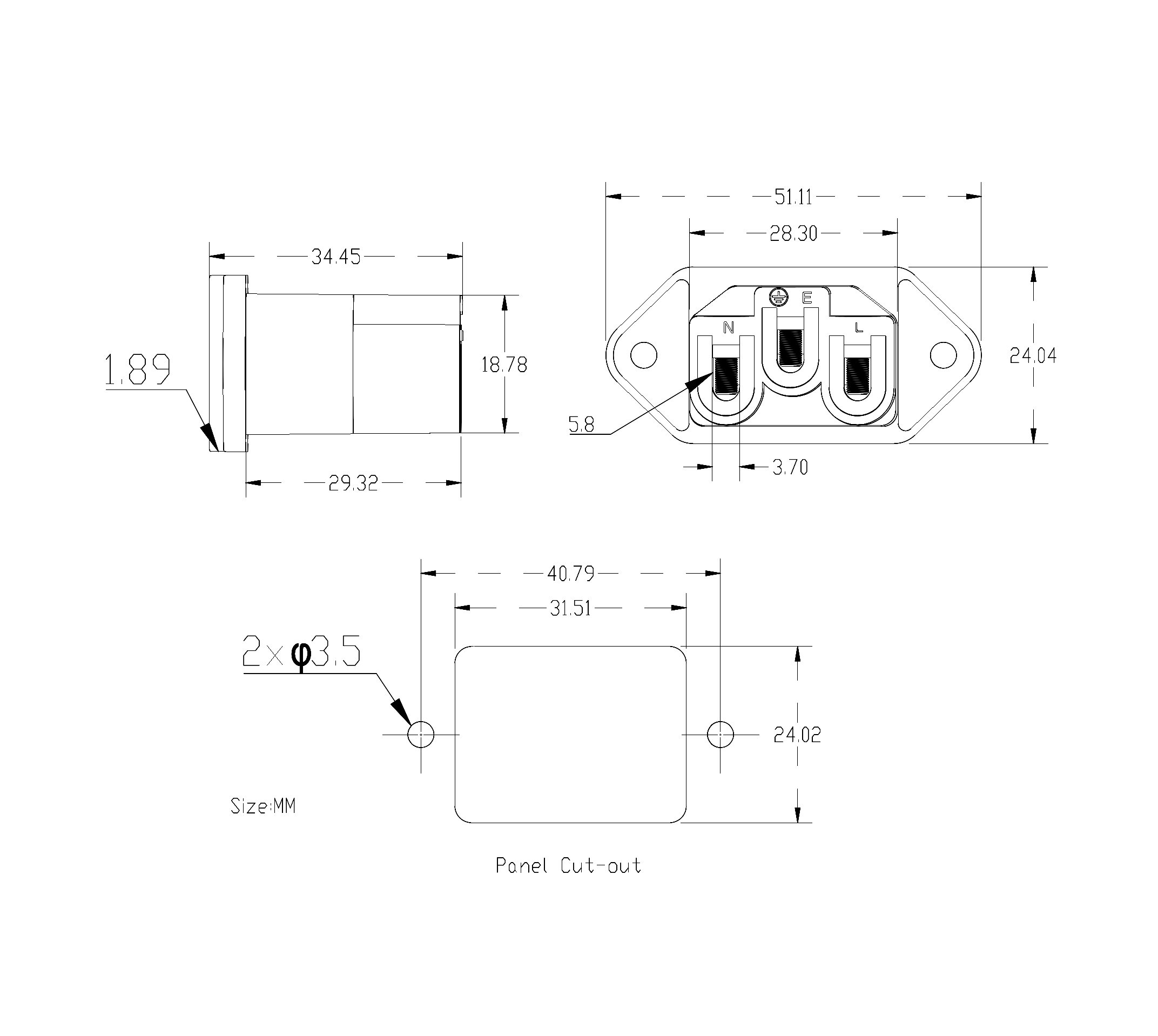

• Dimensions: 51mm (W) x 18.8mm (D) x 27.73mm (H)
• Chassis cutout rectangular 24.02mm x 31.51mm, 3.5mm diameter fixing holes, with centres 40.79mm apart
• Rated: A.C. 250V 15A

PRICE (1 off)
£10.42 +vat +p&p
