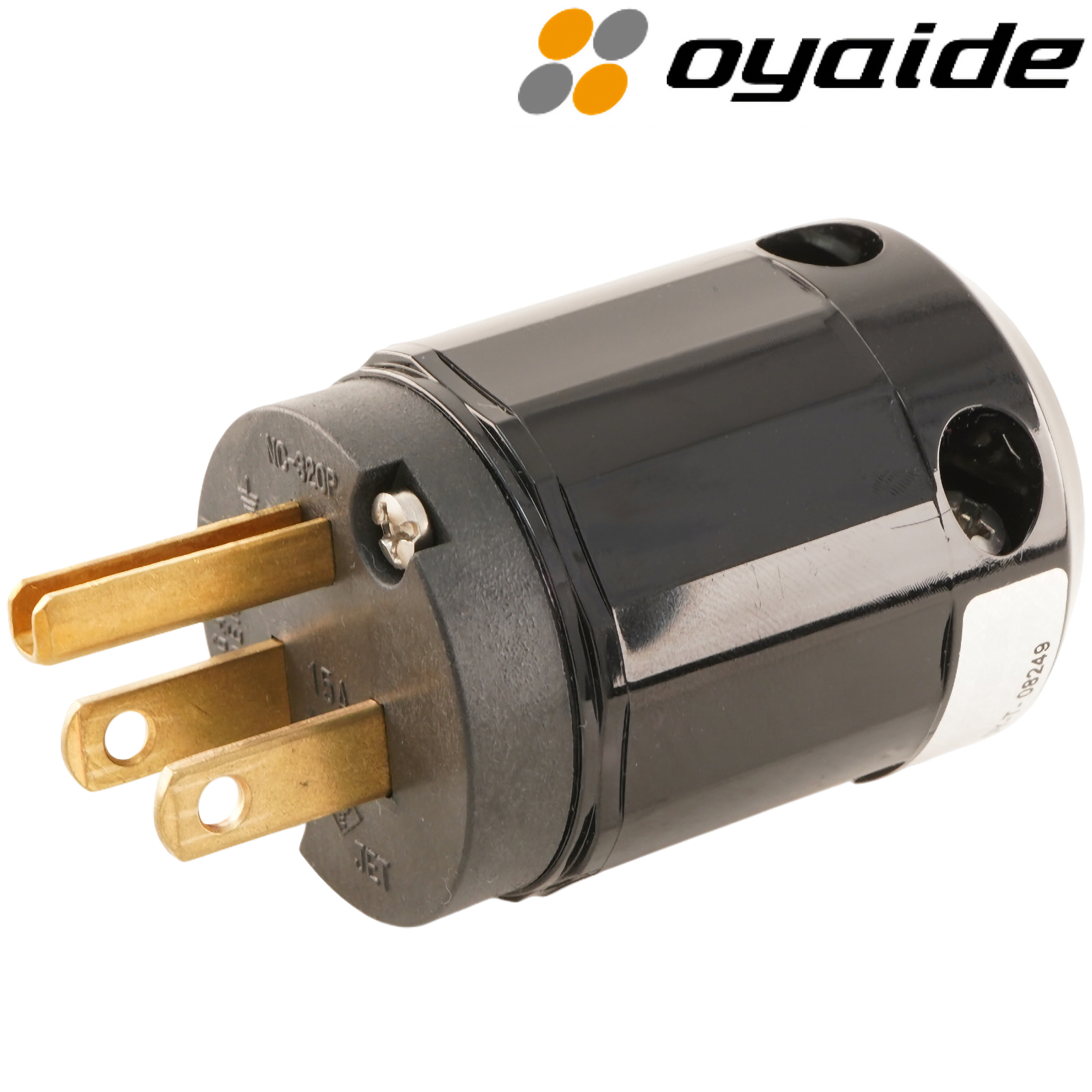

Oyaide P-029 Brass UL plug (US Mains)
Oyaide's entry-level Brass UL Plug, its rigidity makes the contact secure.

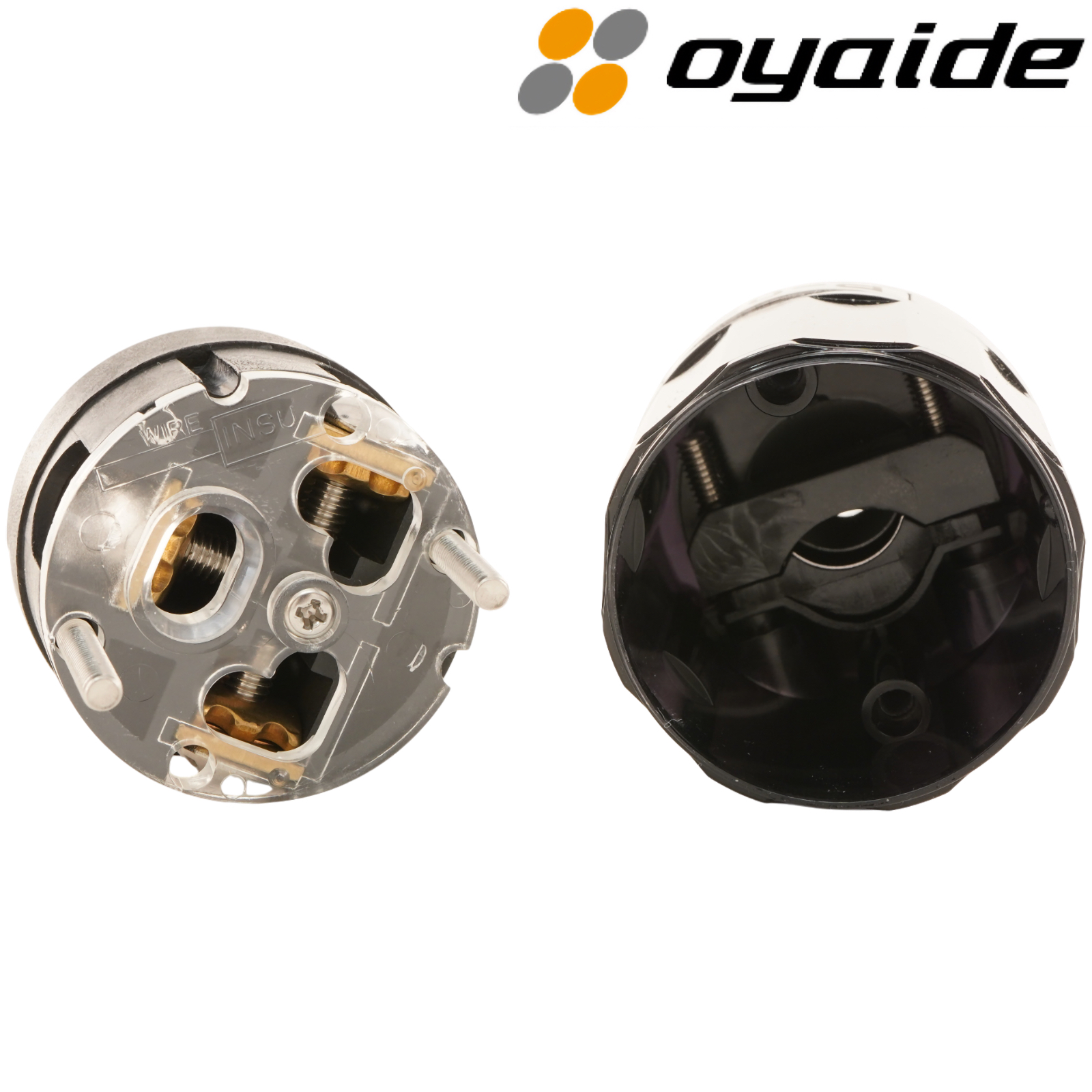

Inner Body
30% glass filled PBT has excellent machine-ability and provides superior electrical isolation. The highly rigid body of the P-029 effectively attenuates high-speed vibrations.
All screws, which were originally designed for P/C series, are made of highly rigid stainless steel which is non-magnetic substance. Moreover, the cable cannot be separated from the plug by a force less than 30kg, a significant safety feature.
Stainless Screws
The screws of P/C series are all made of highly rigid stainless so its screw head doesn't collapse even if you give them too much strength. In addition, because it is non-magnetic material, it helps to achieve high S/N ratio without being magnetized at its conection part.
Outer Housing
The outer cover of P/C series is made of PC ( Polycarbonate ) for its rigidity and hardness.
It helps to attenuate tiny vibrations in quick response and reduce distortions by its superior mechanical strength.
Specifications:
- Blade Material: Brass
- Handling Cable O.D.: Min 6.5mm, Max 17.0mm
- Maximum Handling Wire Gauge / AWG: 5.5sq. / 10AWG
- Rated V/A: 125V/15A ＜PS＞E
PRICE (1 off)
£50.00 +vat +p&p
