Seiden Switch, 1 pole 34 way switch, No. 56002, 56NEG

Seiden Switch, 1 pole 34 way switch, No. 56002, 56NEG

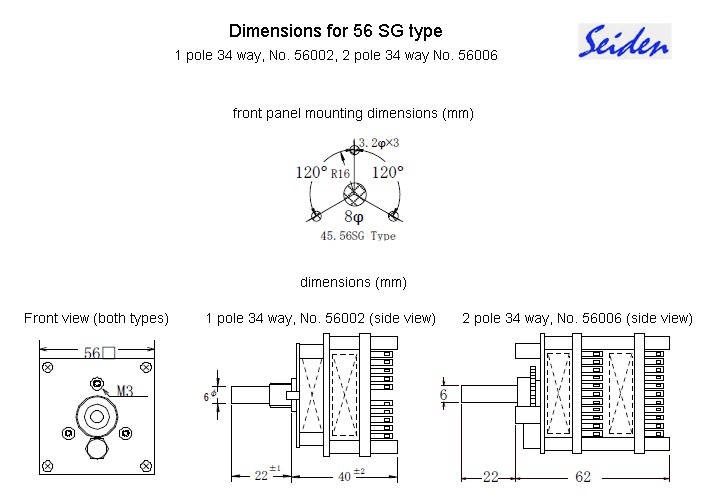

Seiden make the best switches in the world in our opinion, we now have the audio grade open frame 1 pole 34 way shorting (make before break) switch. Amazing quality, superb turning action. Turning torc can be adjusted. Can be used as a switch, for a mono shunt stepped attenuator or a switch to control one channel of a TVC. Silver contacts, gold plated tags, from plate solid copper. body size 56mm (height) x 56mm (width) x 37mm (depth).

  •     Voltage: 200V dc (under 1A)
  •     Current: 5A (under 10V)
  •     Withstand voltage 500V dc (1 min)
  •     Contact resistance: 5 micro Ohm
  •     Rotary Torque: 0.5 - 1.5kg
  •     Operating temperature: -20 degree to +70 degree
  •     Di-electric resistance: 1000MOhm
  •     Durability: over 50000 times (no loads)

PRICE (1 off)
£139.95+vat+p&p
