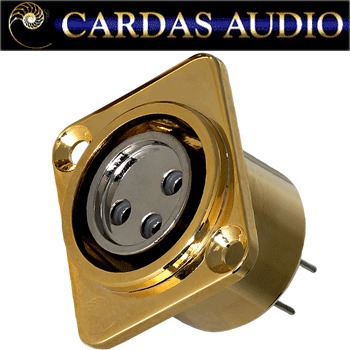

Cardas CM F XLR female XLR socket

Click to Zoom
Cardas CM F XLR female XLR socket (1 off)

Reference level chassis mount female 3 pin XLR. Two-piece design with set screw. Convertible from PCB to solderable. Fourth solder pin connects to XLR body. Gold-plated mounting cup.

Rhodium contact surfaces. Pure, non-magnetic, eutectic billet Brass, Gold, and Rhodium over Silver platings. These connectors have a unique end shielding technique that blocks RF and Clock signals. Plugs can mount in PCB or be soldered to chassis wire. PCB pins can be removed, making way for solder trough. The cutout diameter is 22mm if fitting with the panel showing externally. The cutout diameter is 24mm if fitting the socket from within the chassis. The panel is 26mm x 32mm. With two countersunk fixing holes with a diameter of 3mm. The centres of the fixing holes are on a rectangle of 24mm x 19mm. Sold individually.

PRICE (1 off)
£40.00 +vat +p&p
