BI-103GG: AEC Long Slimline, Gold-plated Brass Binding posts
Click to Zoom

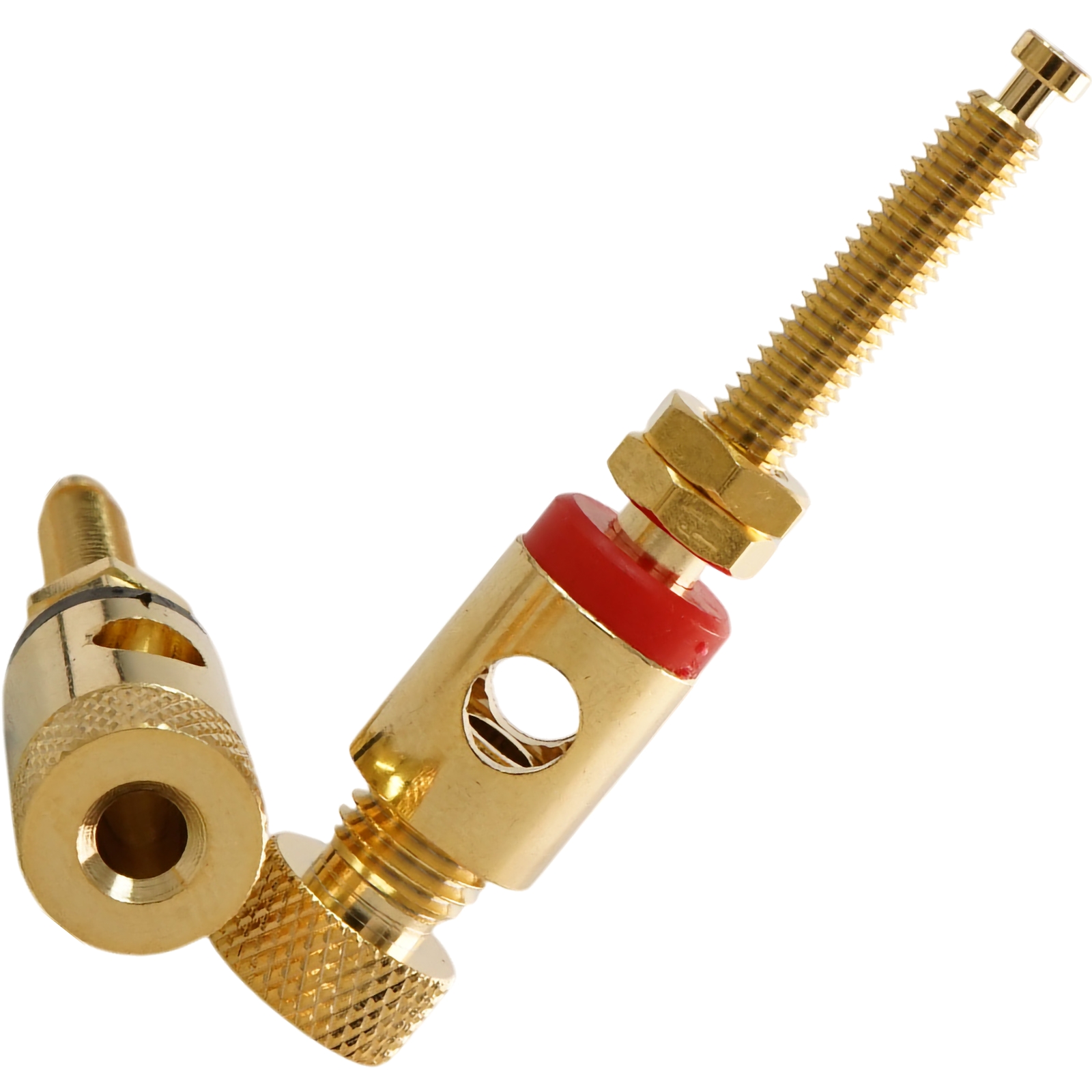

Slimline gold-plated brass binding posts from AEC. They are NOT supplied with insulation washers and are intended to be fitted to non-conductive materials such as wood, as in speaker cabinets.
They are provided with RED and BLACK marker washers.
The cut-out diameter is 4.75mm, and it can be fitted to cabinets with a thickness of up to 24mm. The overall length is 52mm.
They are non-magnetic and solderable. From the top, they can receive a 4mm banana plug and bare wire of up to 5.25mm diameter from the side.
Sold as a pair.
PRICE (pair)
£8.64 +vat +p&p
PDF datasheet
AEC BI-103GG Drawing115.76 KB
