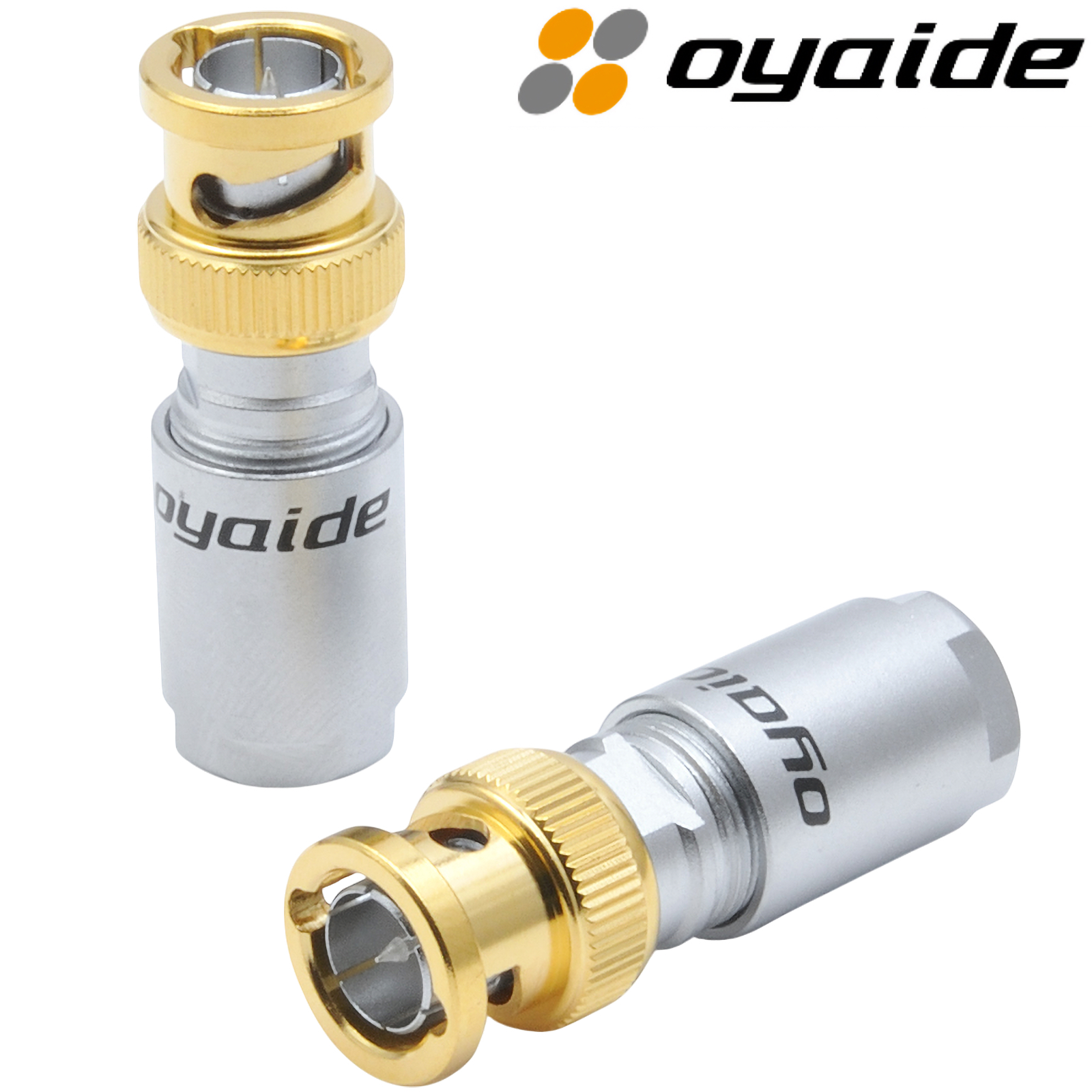

Oyaide SLSB 75-ohm BNC plug, Pure Silver centre pin
The Oyaide SLSB male BNC connector contains a 4N pure silver centre pin, which has the highest electrical conductivity in all metals for the contact pin.
Outer shell
The body and housing of SLSC/SLSB, made of brass and processed by CNC machining, are high-density and have high shielding performance compared to an existing lost-wax processed body. For its surface treatment, hard chrome plating is coated like a body of camera. The knurled pattern on the surface of SLSC enhances the handling property.
Contact pin
The contact pin is trimmed down from 4mm 4N silver round bar by precision CNC machining. It is finished by mechanical barreling and hand polishing piece by piece.
PTFE Insulator
The insulator is significant factor in enhancing the transmitting capabilities of the cable. For the purpose of lessening signal loss, Oyaide employed PTFE, which provides excellent electrical isolation and low electric permittivity.
Specifications:
- Centre pin: 4N pure silver
- Outer shell: Chrome-plated brass
- Connection method: Soldering
- Maximum wire diameter: 9mm
Sold as a pair.
PRICE (pair)
£150.00 +vat +p&p
