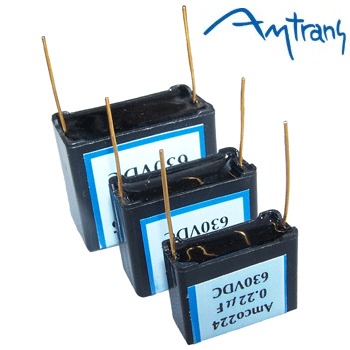

Amtrans AMCO

The new Amtrans AMCO are metallized PET film capacitors rated at 630V and highly recommended for valve amp signal use. Leadouts are gold-plated OFC.

Specifications

• Category temperature range -40 to +100°C
• Rated voltage 630V DC
• Rated capacitance range 0.01uF - 1uF
• Rated capacitance tolerance +/- 20%
• Dissipation factor <0.1% (at 1KHz 20°C
• Insulation resistance >15000Mohm (C>0.33uF) >5000Mohm (C>0.47uF)
• Body Epoxy resin (Black)
• Leadouts (up to 0.047uF) 30mm (length) x 0.6mm (diameter)
• Leadouts (0.01uF to 1uF) 30mm (length) x 0.8mm (diameter)

This range has been superseded by the Amtrans AMCN aluminium metalized polypropylene film Capacitors.
