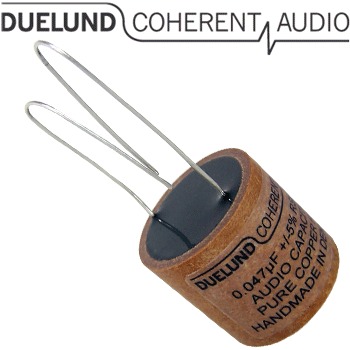

The all-new RS series from Duelund is a further improvement on their VSF line of capacitors. After many years of research and development, they decided to improve upon the original VSF by applying the elaborate manufacturing process used in making the CAST version. Using high purity copper foil with a wax impregnated dielectric and treating with their own anti-resonance CAST material the RS series was born.
These capacitors approach the CAST performance in a number of ways, but at a lower cost.
We are stocking both the 100Vdc Loudspeaker range and the 400Vdc Electronic range.
The outer lead out, closest to the edge of the capacitor, is connected to the outer foil and as such should be connected to the lowest impedance path to ground.
The lead-outs are 1mm diameter annealed copper wire, tin plated bare wire.
Please note that the original VSF line is still available for those that prefer.
