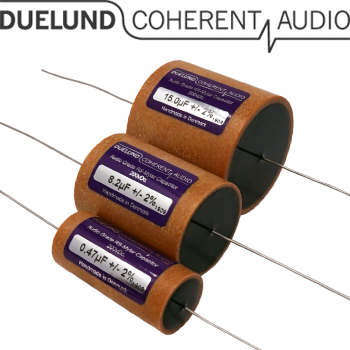

Duelund RS Mylar 200Vdc Capacitors

Duelund RS Mylar 200Vdc Capacitors

Duelund has extended its range of RS capacitors with their lower cost RS Mylar range. These are constructed from metalized mylar using paper and wax as the dielectric material, potted in a phenolic tube filled with Duelunds famous CAST material to reduce vibration. They are the axial type. The lead-out closest to the "D" in Duelund is connected to the outer foil, and as such should be connected to the lowest impedance path to ground, the signal output end.

Rated at 200V they are suitable for loudspeaker crossover use and electronic applications. The lead-outs are 1mm diameter annealed copper wire, tin-plated bare wire.

We stock the values from 0.47uF to 15uF.

IMPORTANT NOTICE

With the demise of Jensen and Duelunds's access to their machinery, Duelund is no longer able to produce the RS range of capacitors. We do have some stocks left, just click BUY NOW. However, Duelund is launching the all-new JDM and JDM CAST range. JDM is short for Jensen Domestic Market, a homage to the 100-year production legacy in Denmark that Jensen Capacitors stood for. The capacitor will be available in several pure metal foils and dielectrics, to cover pretty much all audio bases – be it for loudspeaker or electronics. Standard sizes will be 0.001uF – 100uF, voltages rating will be low level to 600Vdc. With the JDM, their aim is to offer the ultra-high material quality Duelund is known for while leveraging the production power, they have available through the acquisition of Jensen’s production line. The net effect is, that they will offer a fully Danish made pure metal foil “wet” capacitor with premium materials sourced from Germany and Switzerland - at pricing we have never been able to before. The new range will be available in August 2020 (approx.).
