Volt Loudspeakers B25001 10" Bass Driver, 8 Ohms
Click to Zoom

The B2500.1 is the ultimate 250 mm high-power studio bass driver. This unit is intended for state-of-the-art studio systems where dynamic range and analytical clarity are essential. The B2500.1 uses a massive magnet with symmetrical magnetic field and extended pole for maximum linearity. Matched dual rear suspensions maintain stability at high power levels. The cone is exceptionally rigid ensuring true piston integrity.
Specifications:
- Model Number: B2500.1
- Nominal Diameter (mm): 250
- Power Capacity (Watt AES): 250
- Sensitivity (dB/watt/m): 88
- Frequency Range (Hz): 25-1000
- Impedance (Ohms): 8, 16, or 24
- BL Factor: 18.7
- Voice Coil Diameter (mm): 75
- Voice Coil Material: Copper
- Maximum Excursion (mm): 25 (before damage)
- Magnet Assembly Weight (Kg): 8.1
- Effective Moving Mass (Kg): 0.104
- Compliance (M/N): 0.00016
- Volume Displaced (litres): 2
- Connection: Metal Push Terminals
- Chassis: Painted Diecast Aluminium
For even more information, please refer to the datasheet and graphs below.
PRICE (1 off)
£308.50 +vat +p&p
Big Picture

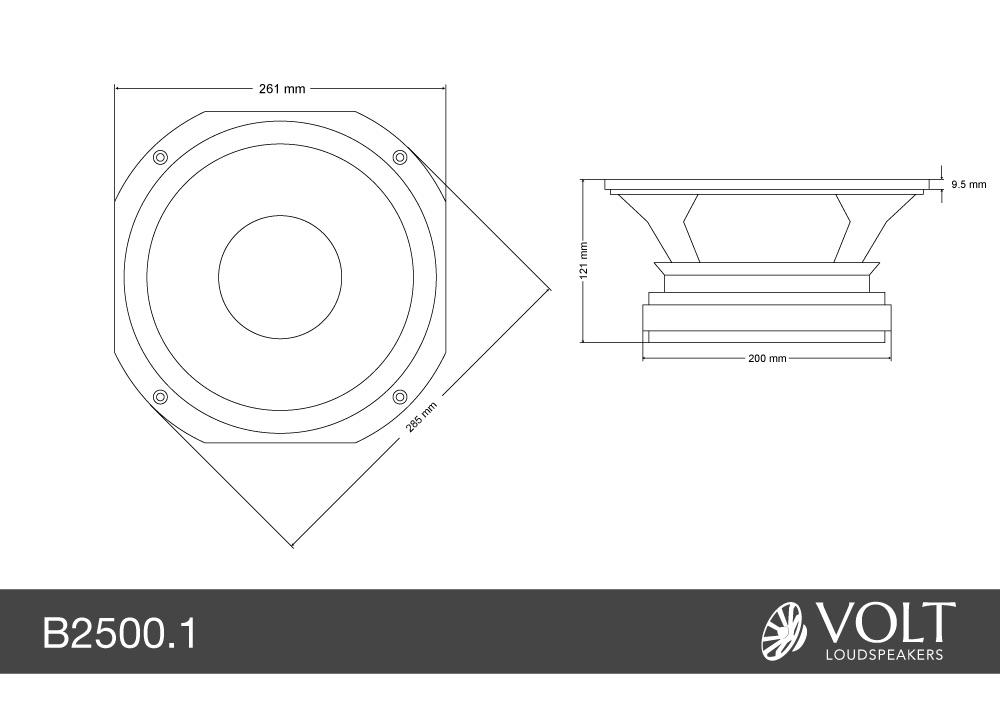

B25001 Dimensions64.86 KB

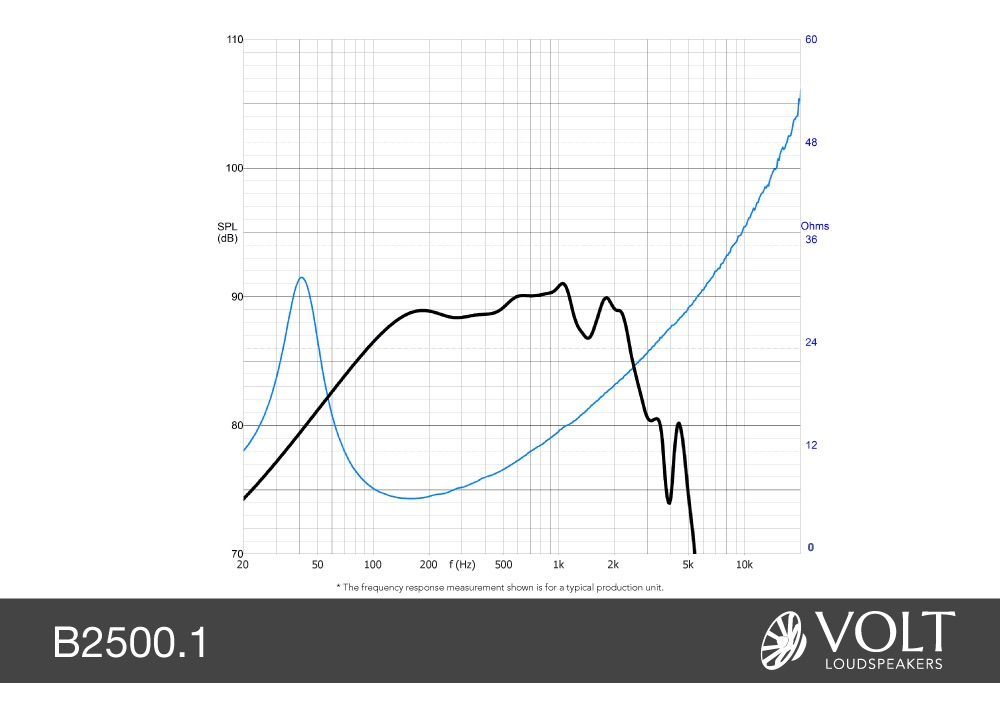

B25001 Frequency Response Graph100.84 KB

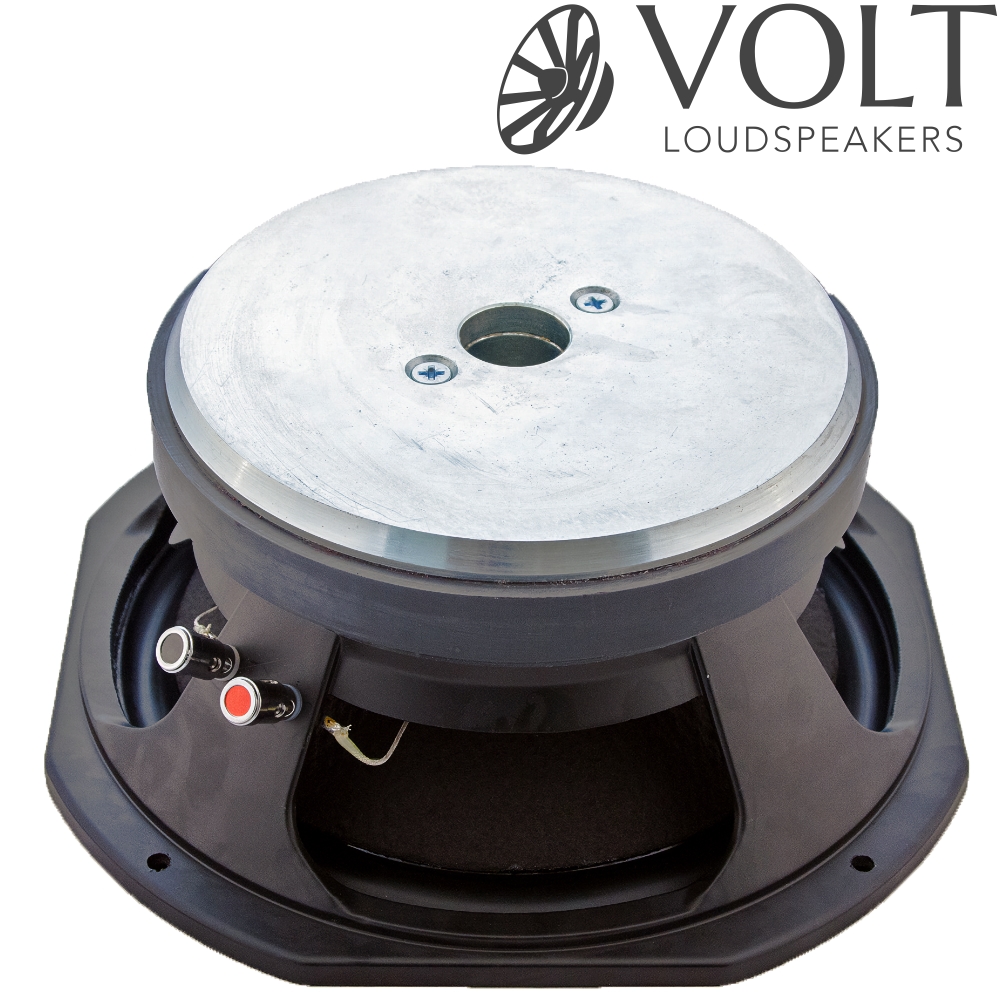

B25001 Rear View448.66 KB

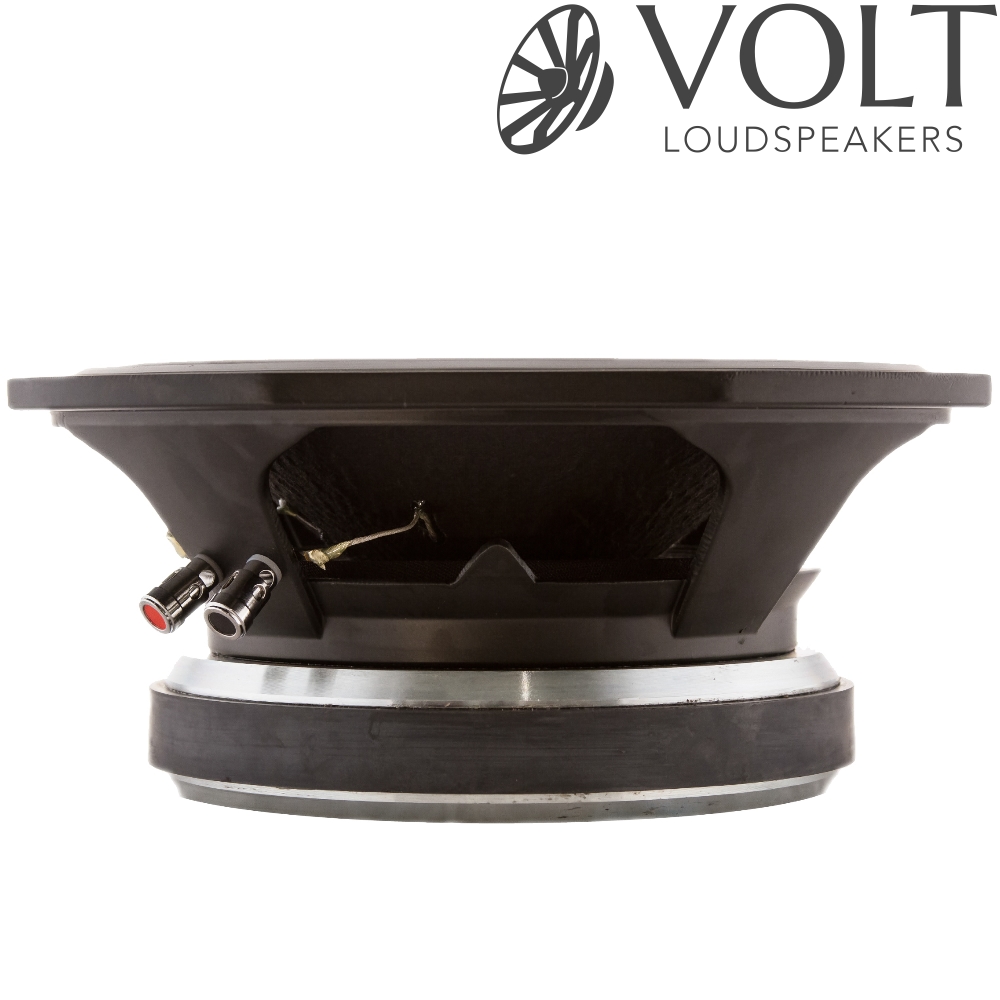

B25001 Side View215.37 KB

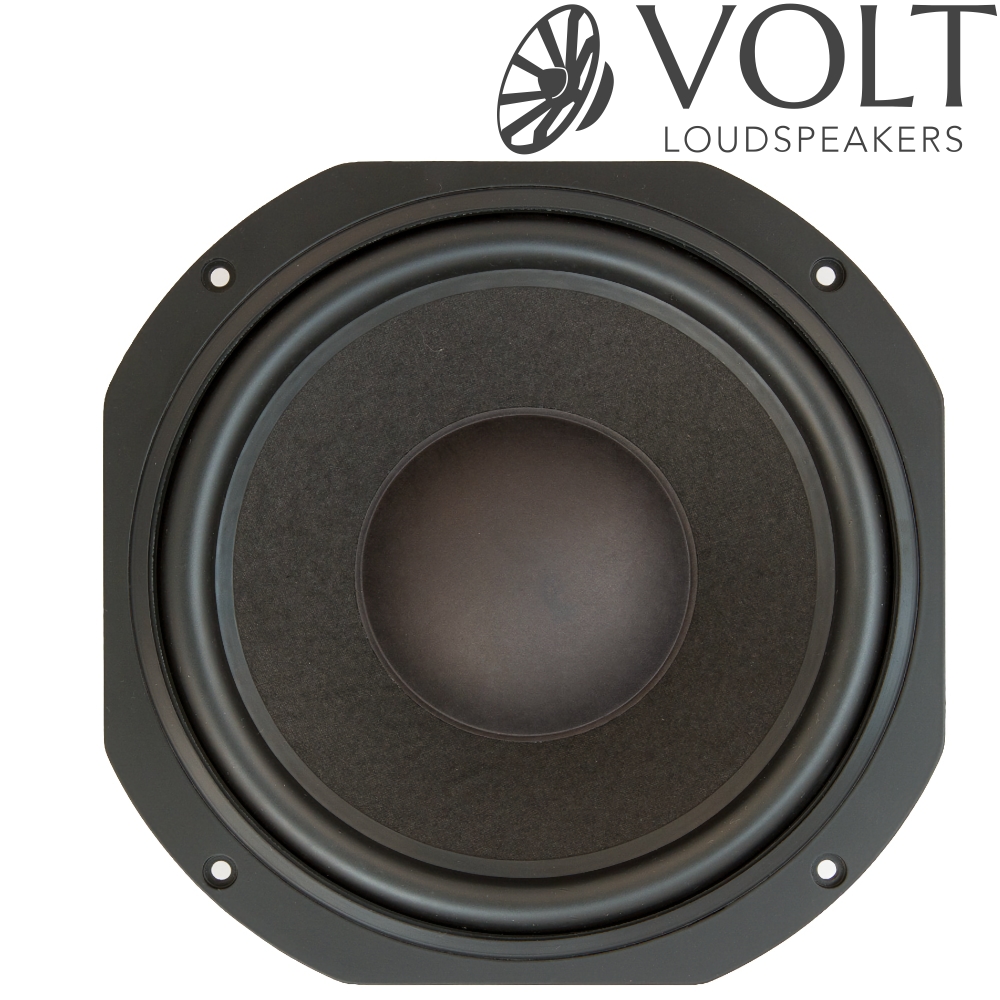

B25001 Top View406.7 KB
PDF datasheet
B25001 Datasheet852.44 KB
