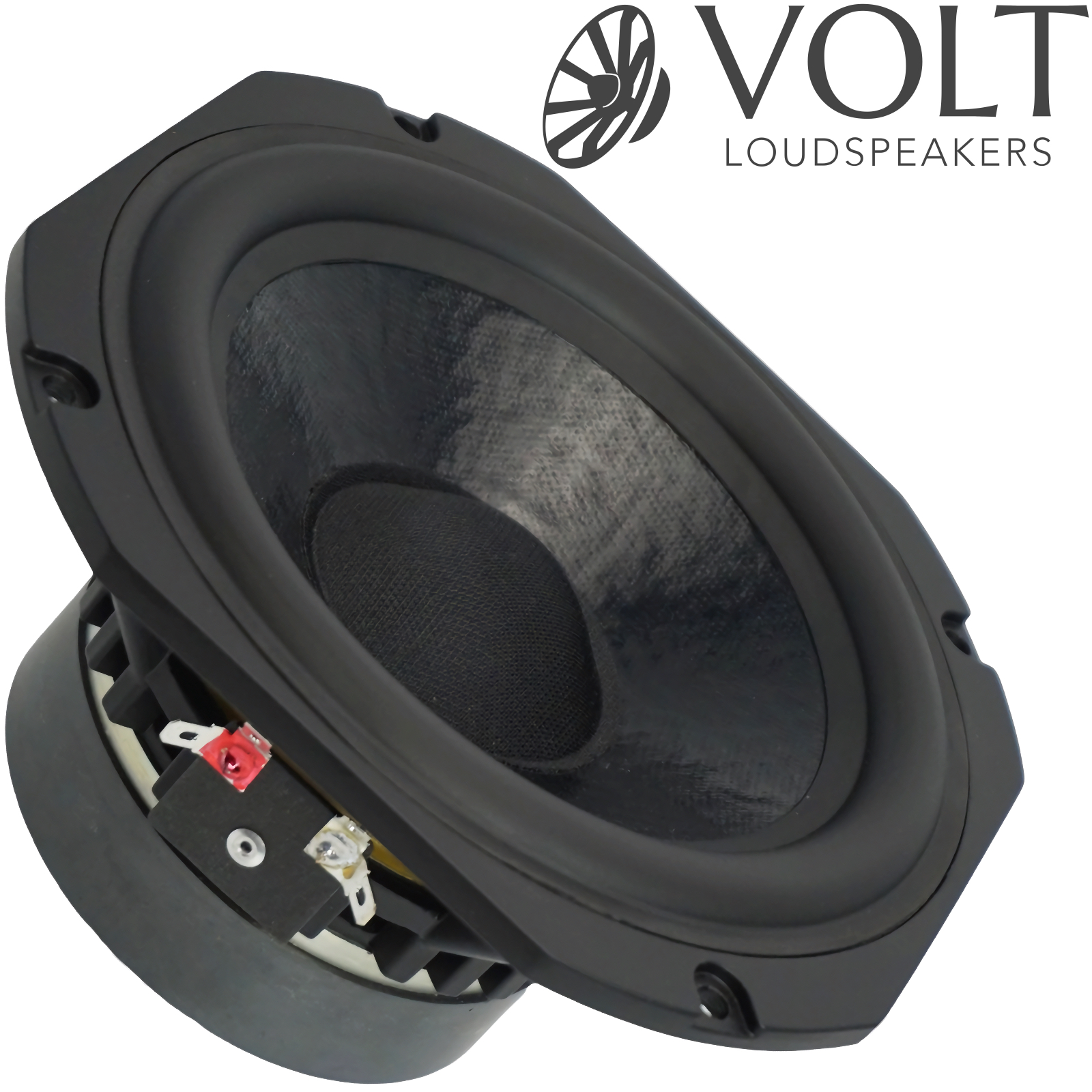

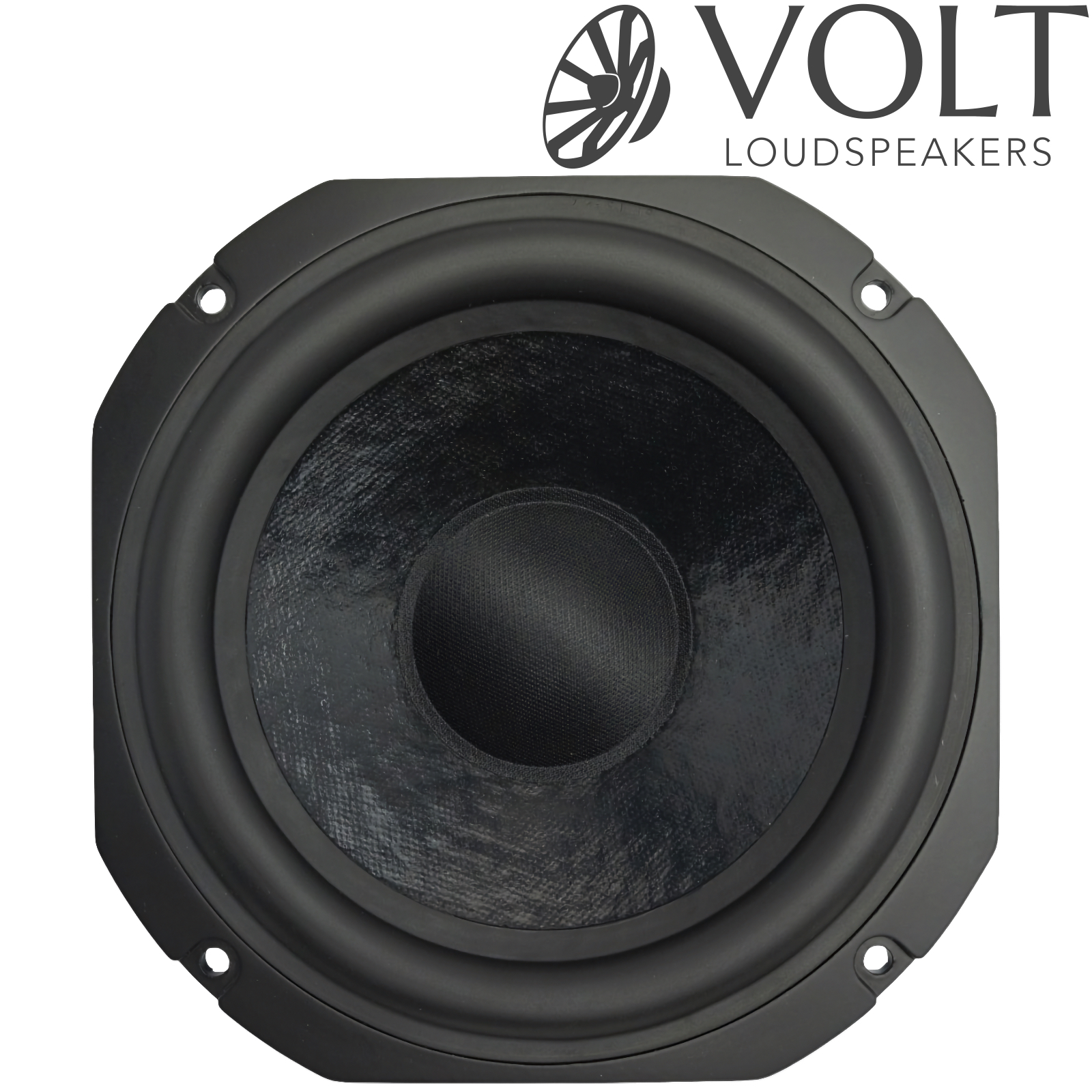

Volt Loudspeakers BM165.4 6.5" Bass-Midrange Driver, 8 Ohms
Designed for compact 2- way studio monitors, the BM165.4 (6.5") is a critically doped paper pulp cone unit developed for bass/midrange applications that require minimal colouration and low distortion over a wide frequency range. It uses a symmetrical field magnet system for large linear excursion capability with low distortion and mirrored double rear suspensions ensuring transient stability at high drive levels.

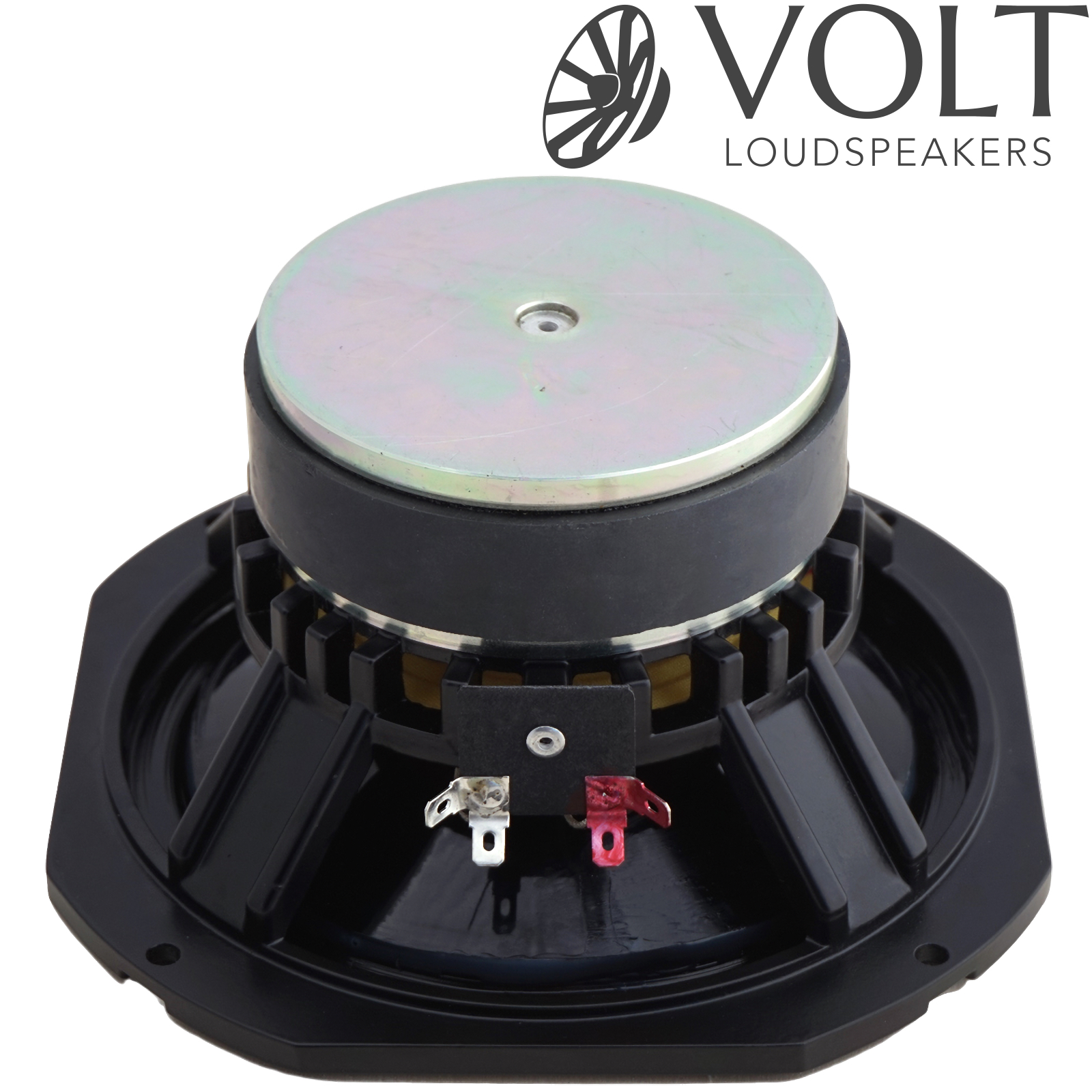

The Thiele-Small parameters are optimised for relatively small enclosures to give a bass performance that complements the extended mid-band enabling optimum 2-way systems. The diecast aluminium chassis is vented below the suspensions to increase cooling airflow to the voice coil and magnet.
Specifications:
- Model Number: BM165.4
- Nominal Diameter (mm): 165
- Power Capacity (Watt AES): 100
- Frequency Range (Hz): 50-3000
- Impedance (Ohms): 8
- Voice Coil Diameter (mm): 38
- Voice Coil Height (mm): 17.5mm
- Voice Coil Layers: 2
- Magnet Gap Height: 5.5mm
- Linear Excursion (XMax): ±6mm
- Maximum Excursion (mm): 24
- Volume Displacement: 0.7 Litres
- Connection: 4.8mm Solder
- Chassis: High Pressure Diecast Aluminium

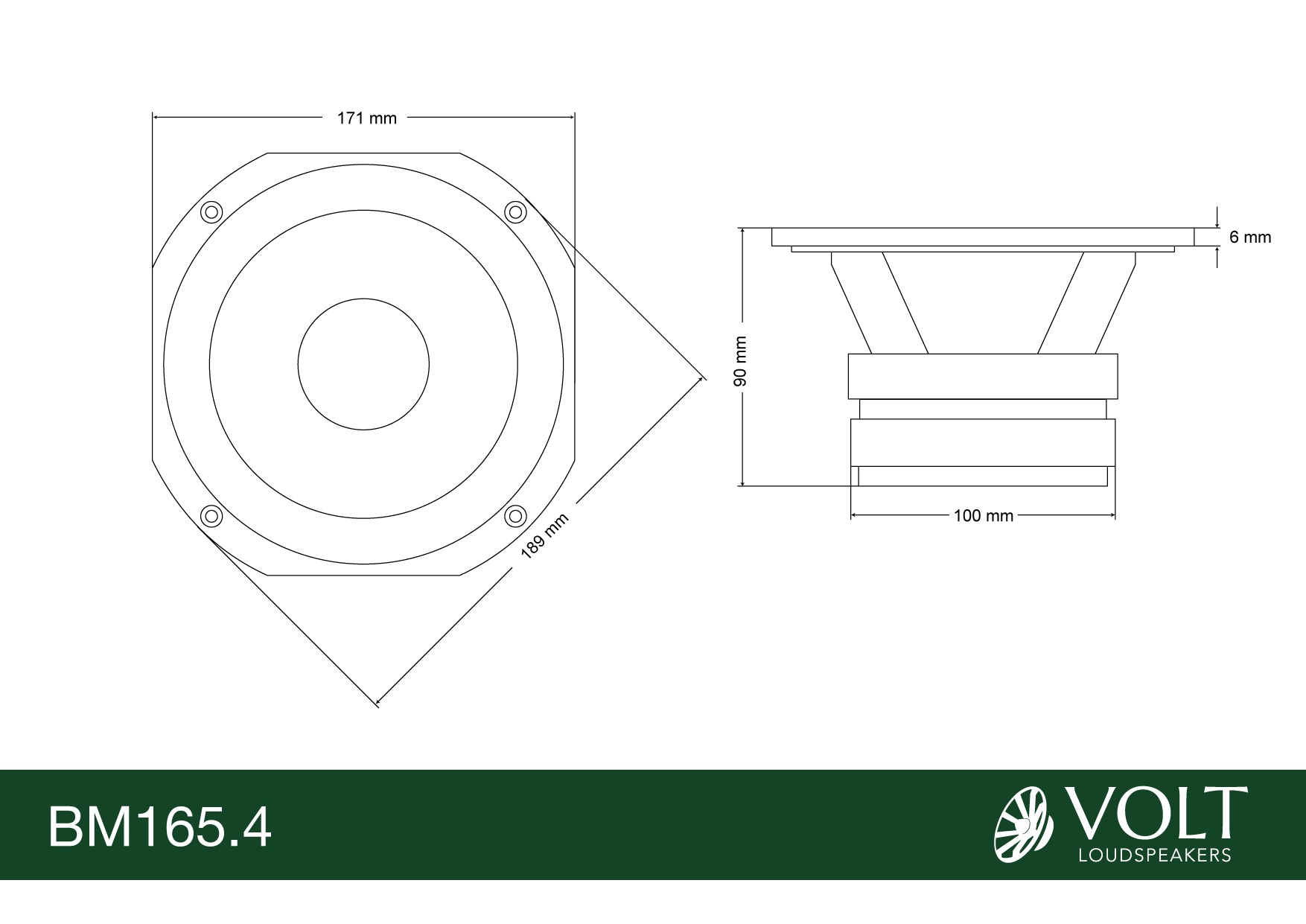

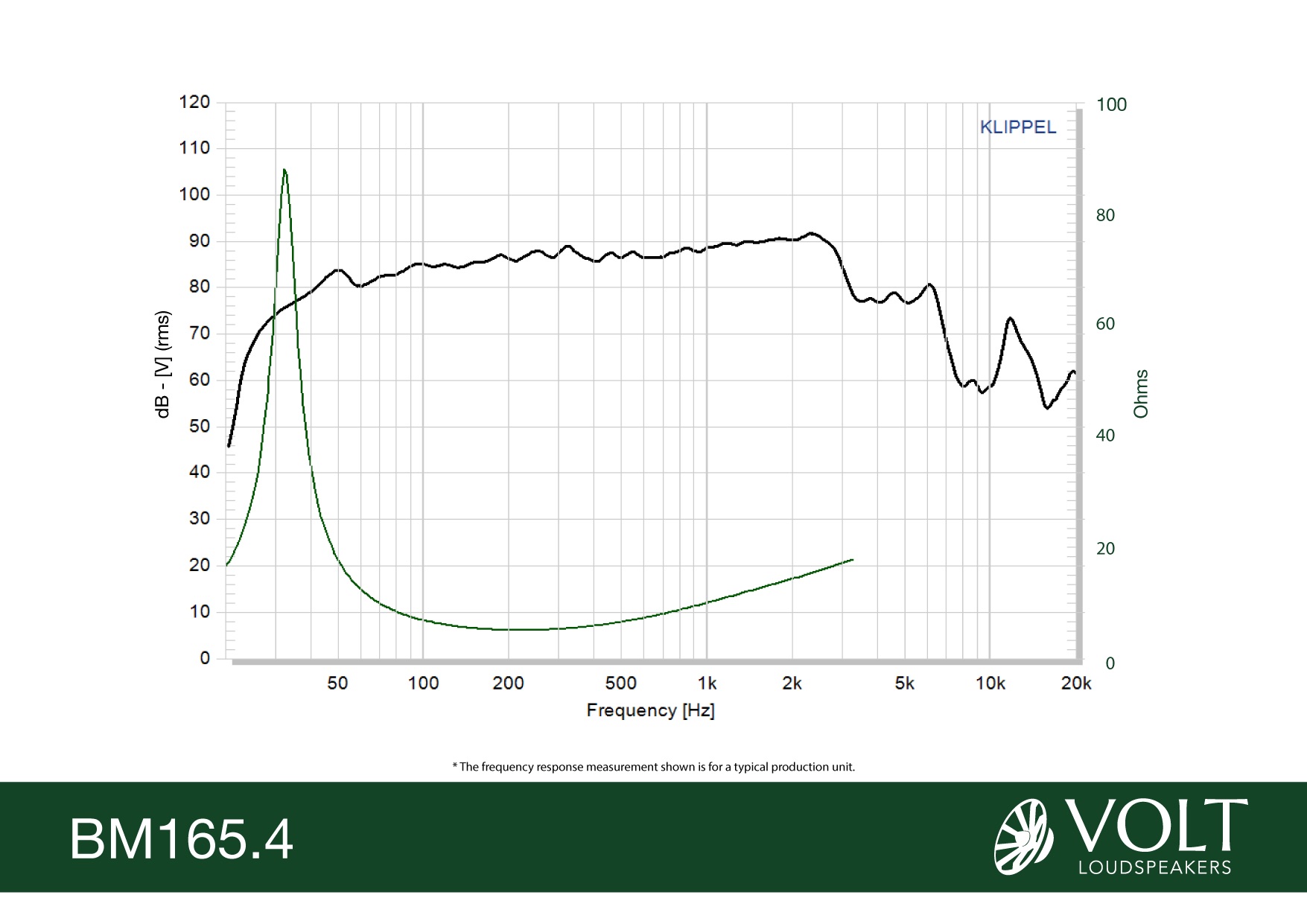

For even more information, please refer to the datasheet and graphs below.
PRICE (1 off)
£134.17 +vat +p&p
