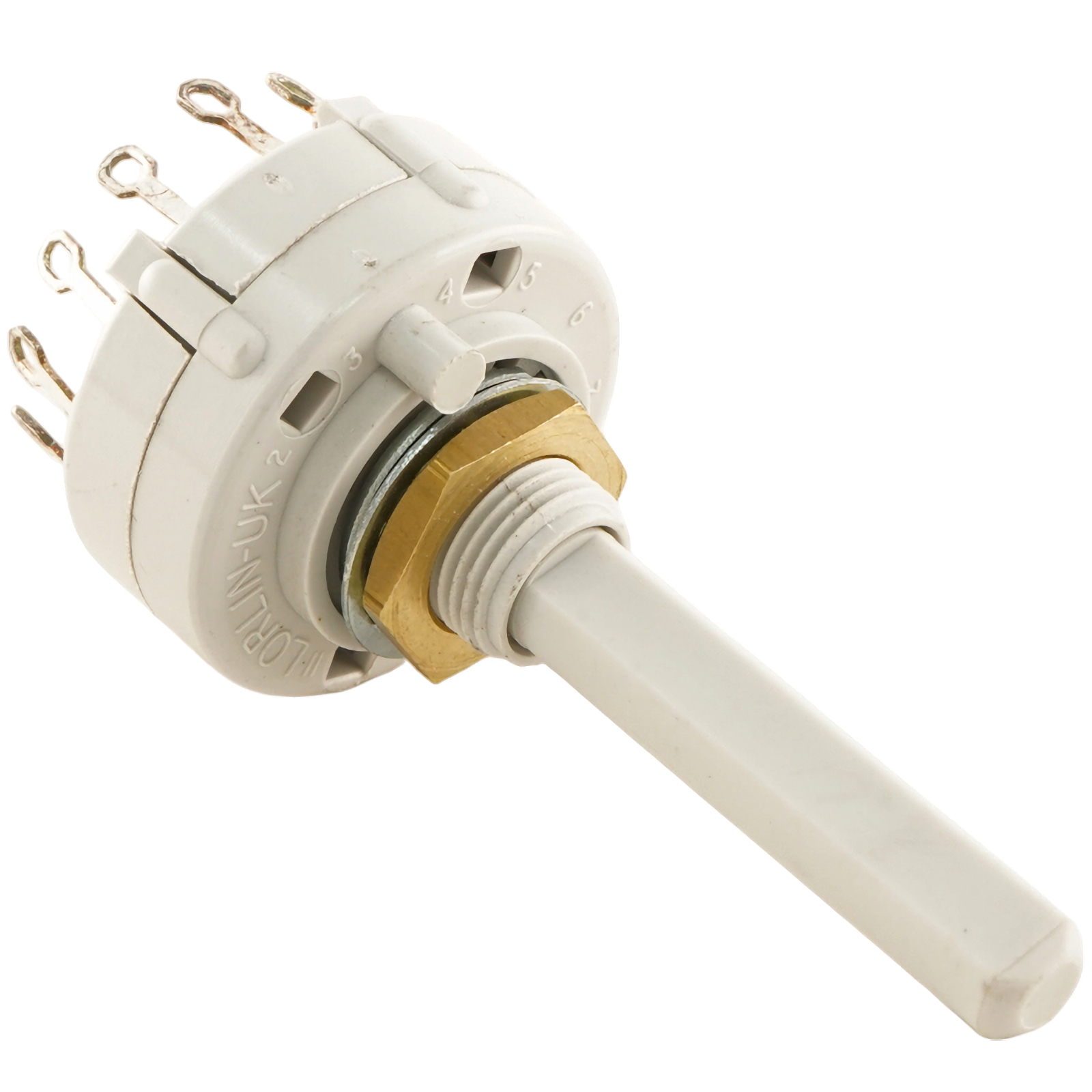

Lorlin 2 pole 6 way selector switch, CK1035

A 2-pole 6-position Rotary Switch from Lorlin. With an adjustable stop to restrict the number of positions. Shorting (make before break 30° indexing only) and brass alloy contacts with silver-plated terminals.

Specifications:

• Standard 30° indexing
• Solder terminals
• Cost-effective single-wafer switch
• Optional reinforcement ring
• No. of Switch Positions:  6 Position
• No. of Poles:  2 Pole
• Angle of Throw:  30°
• Contact Current AC Max: 150mA
• Contact Voltage AC Max: 250V
• Product Range:  CK Series
• Illumination: Non-Illuminated
• Contact Current DC Max: 150mA
• Contact Voltage DC Max: 250V
• Housing Material: Polyamide
• Depth: 27.5mm
• Width: 27.5mm
• Diameter: 27.5mm
• Height: 59.1mm

PRICE (1 off)
£4.96 +vat +p&p
