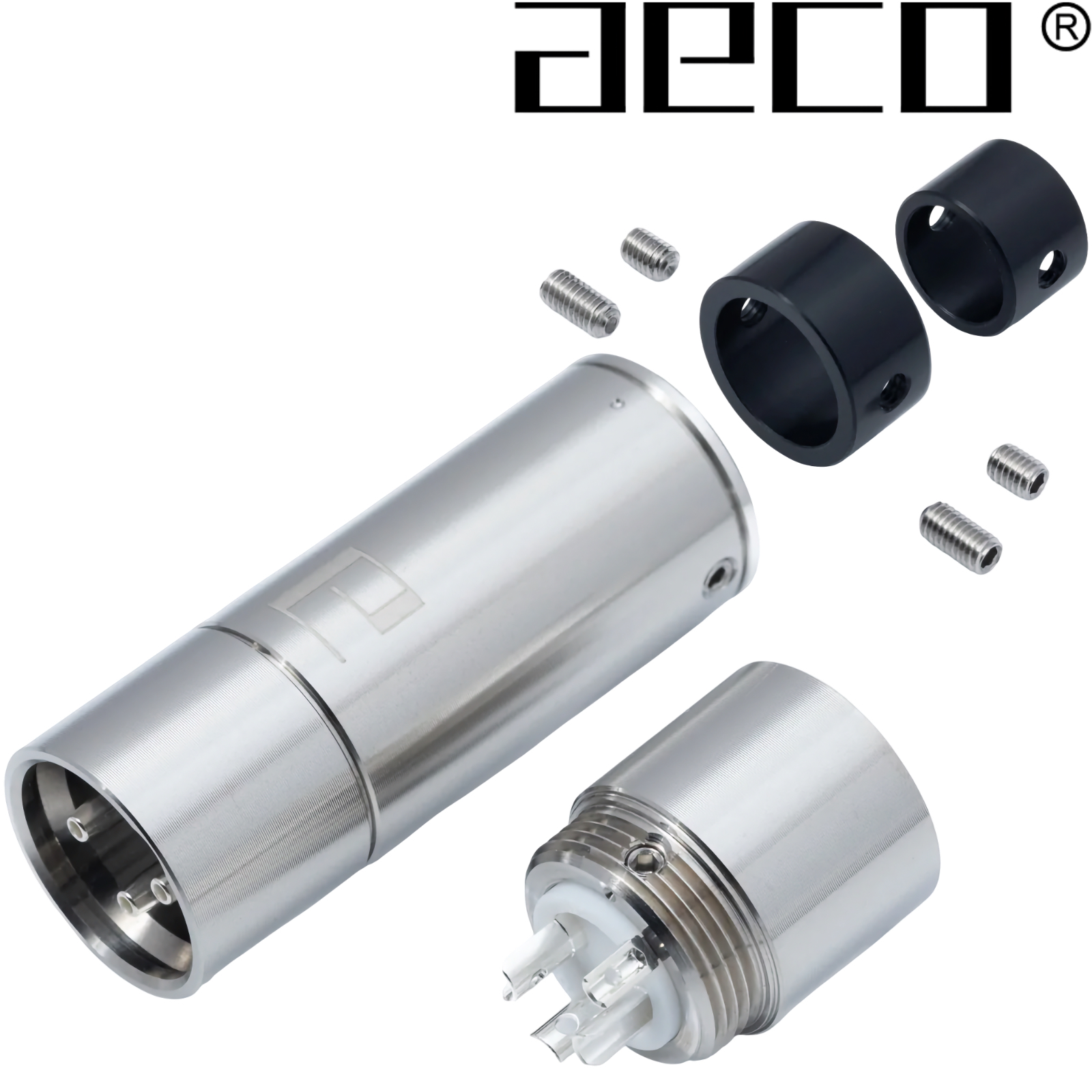

aeco AX3-1613S male 3 pole XLR plug, Tellurium Copper Silver-plated

A high-quality male locking 3-pole XLR plug from aeco, designed to pair perfectly with the matching female connector that we also stock.

The centre pin is assembled into the PTFE insulator and secured together with the remaining PTFE components. This finished assembly is then fitted into the main body using a screw, forming the complete XLR body set.

The XLR body set and outer shell lock together via a threaded connection. The POM sleeve is secured to the end of the shell with a screw.

Cable entry dimensions are as follows: with sleeve: 9.0 / 11.5 mm, without sleeve: 15.0 mm.

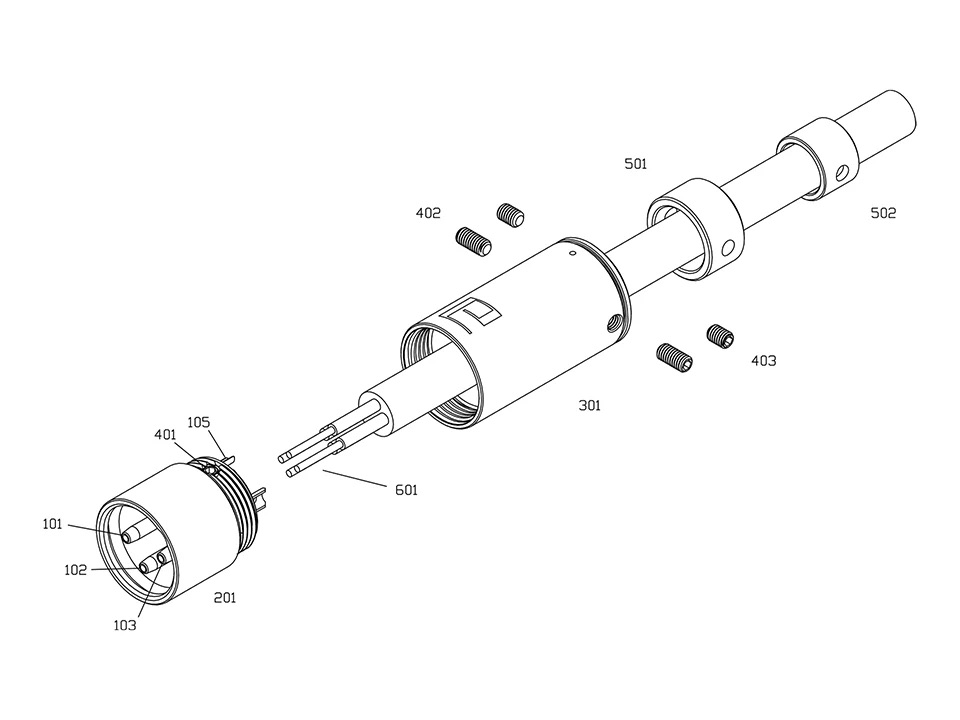

Assembly (refer to drawing below for related numbers)

1. Unscrew the body set[201] and shell [301].
2. We recommend to peel off the cable jacket[601] and each insulation of conductor.
3. Using the POM sleeve ( ID 9.0mm) [502] , the POM sleeve ( ID 11.5 mm) [501] or using the shell without POM sleeve ( ID 15.0 mm), depending on the cable outside diameter.
4. Please put the cable through the shell and sleeve.
5. The cable should be soldered on the contact pins [101][102][103] and the conductors of each channel.
6. Depends on the customer’s need, to solder the ground pin[105].
7. Please lock the shell [301] on body set [201].
8. Please fix the cable ,POM sleeve, and shell through the screw [402] or [403] .

Specifications

• It can be used with other standard XLRs.
• Hollow structure conductor
• Conductor between body isolate by PTFE insulator.
• The conductor is made from high-purity tellurium copper without nickel plating.
• This product can be disassembled into individual parts for repair and recycling.

Material:

• Contact Pin: Tellurium copper (C14500 / copper contains over 99%).
• Ground Pin: Brass alloy (C3604)
• Insulator: PTFE
• Body Shell: Stainless Steel (SUS304)
• Shell: Stainless Steel (SUS304)
• Sleeve: POM
• Screw: Stainless Steel (SUS304)

Finish:

• Contact pin: 120u" Silver plating (no nickel base)
• Ground pin: 20u" Silver plating (no nickel base)
• Insulator: None.
• Body Shell: None.
• Shell: None.
• Sleeve: None.
• Screw: None.

Electrical Characteristics:

• Contact resistance < 1.0 mOhm

Dimension:

• Biggest OD: 18.9mm
• Total Length: 49.5mm
• Recommend soldering temperature

Recommend soldering temperature

• Temperature Soldering Iron, please keep 340 °C within 3~5 second.

PRICE (1 off)
£38.50 +vat +p&p
