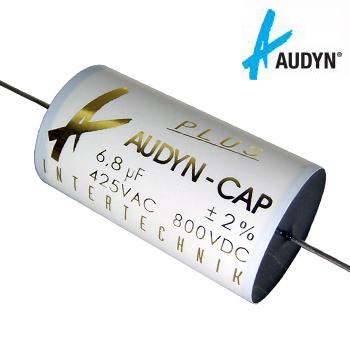

Audyn Cap MKP Plus

Polypropylene capacitors are constructed with two separate polypropylene foils connected in series, bi-filar. Thus they are non-inductive with damping depletion.
 These ultra-low loss capacitors have been developed for extreme impulse/power handling. An important design/constructional feature is the power handling of the connection between the foils (electrodes) and the end leads. The AUDYN CAP PLUS has a vastly improved system of connecting the electrodes to the end leads. AUDYN CAP PLUS also utilises an internal series connection system whereby layers of metal foil are combined with a one-sided metallized "blind" layer. As a result, the double metallization performance is greatly enhanced. An absolute top-quality component.

Characteristics
Container: Aluminium-Plastic Cup
Grouting: Epoxy
Connections: Copper Wires, tinned
Connection wires (AL) : length / mm
Connection wires (d) : diameter / mm
Capacity Region: from 0.10uF to 22uF
Wire Voltages: 800 V / 1200 V
C-Tolerance: ± 2 %
