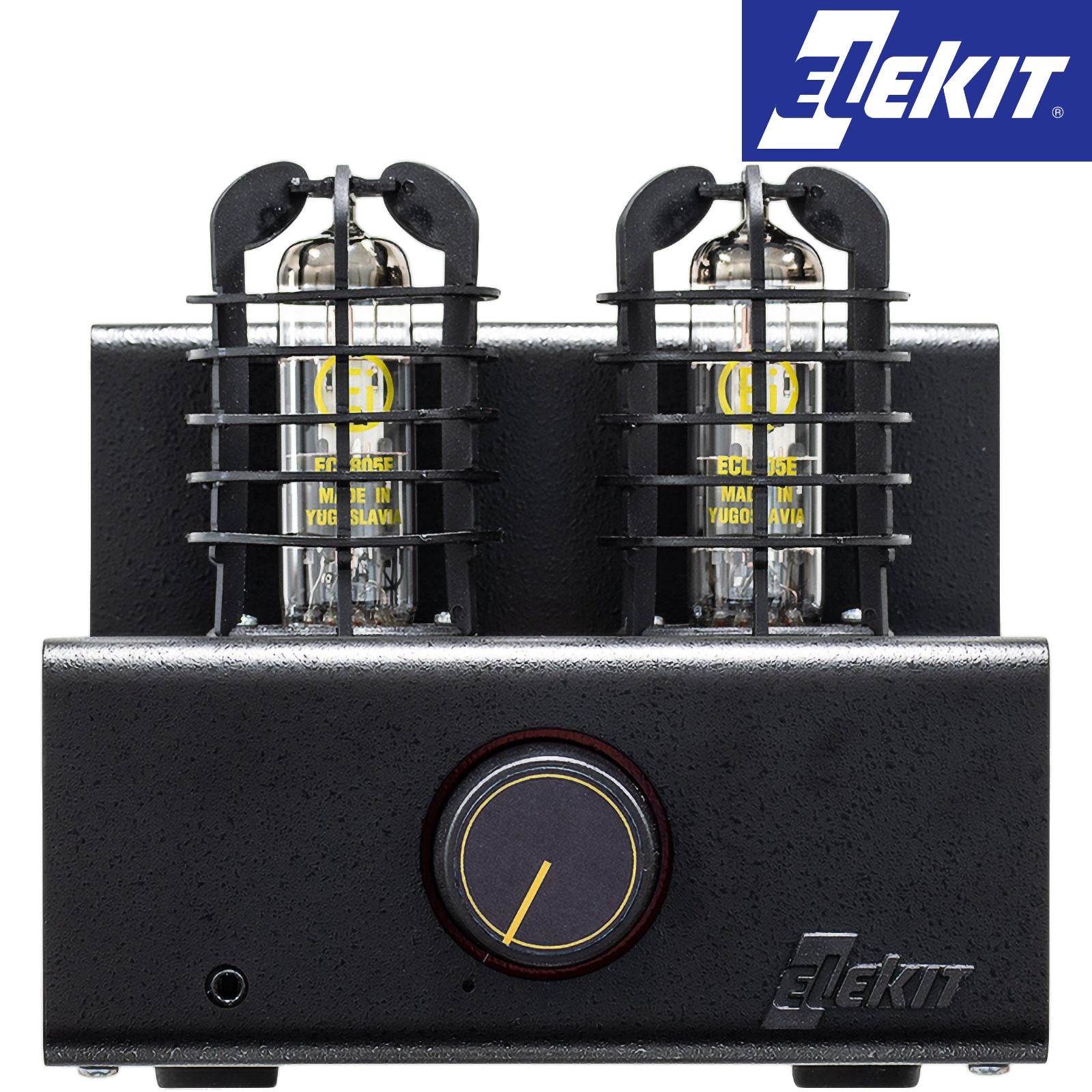

Elekit TU-8185 ECL85 Single Stereo Power Amplifier Kit

Click to Zoom

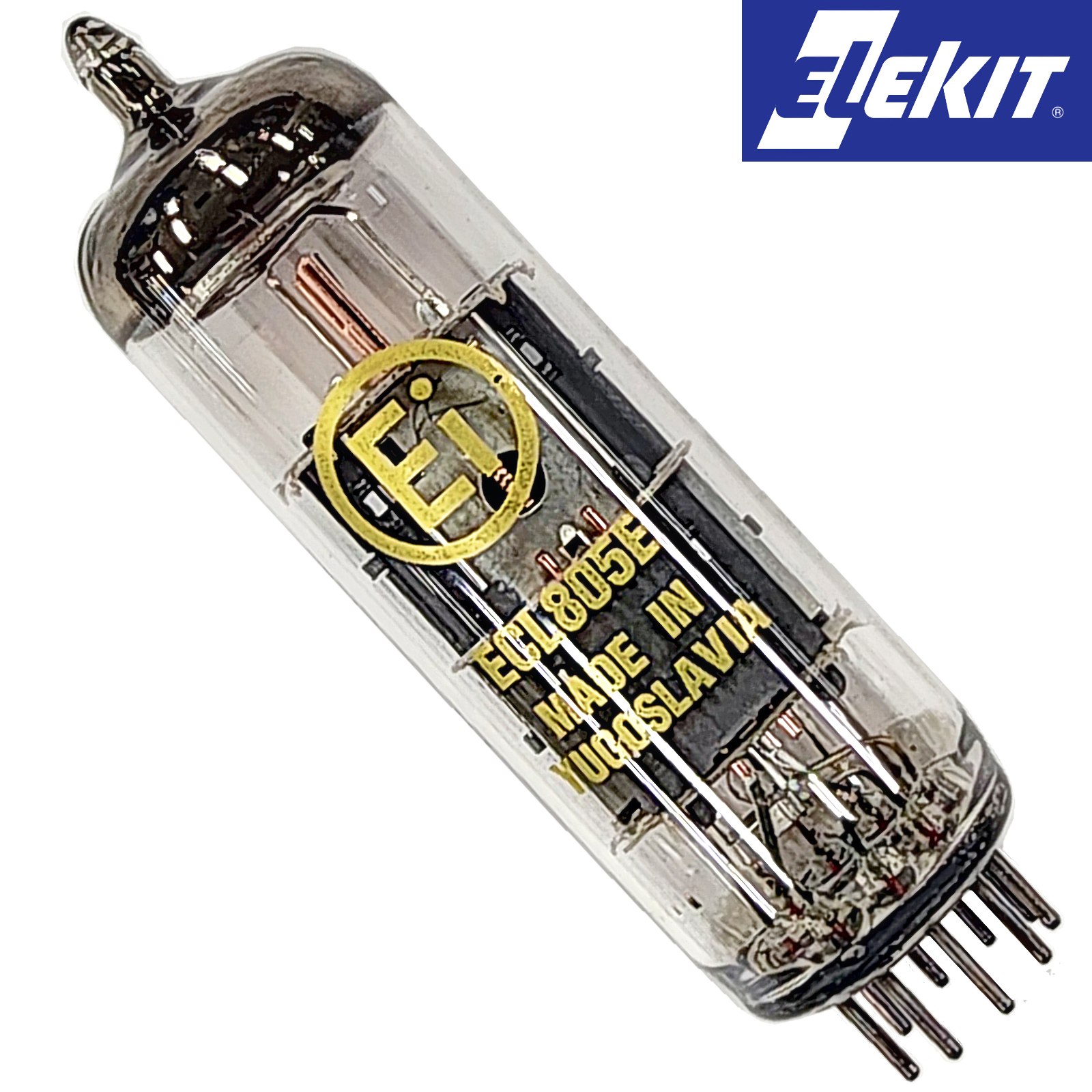

A compact vacuum tube amp with Triode-power pentode tube ECL85, including 2 x ECL805E, a highly reliable version of ECL85. A compact body with a headphone jack on the front panel - you can enjoy its large-scale sound not only from speakers but also from headphones/earphones. This succeeds the popular TU-8100.

Two types of input terminals

The amp is equipped with an RCA jack for LINE IN and a stereo mini jack for connecting a mobile phone or a portable music player.

Headphone feature

Enjoy music either from speakers or headphones. The amp is compatible with headphones with an impedance between 8 and 600 ohms.
Adjust the output level by moving the jumper caps.

USB-DAC module PS-3249R - Sold separately

The ELEKIT USB-DAC module PS-3249R can be mounted inside the amp, enabling the amp to connect to a digital sound source on your PC.

Specifications:

Stock tube: ECL85 ( =6GV8 ) x 2pcs
Circuit configurations: Tube stereo power amp
Output stage: Class-A Single-ended, self-bias
Heater power: DC heating
B-power: DC-DC inverter boost type
Max. output: 2 x 2W ( 8ohm load, THD10% )
Rated input: 350mV rms
Frequency response: 25-50,000Hz ( -3dB )
Residual noise: 35uV rms ( IHF-A, 8ohm load )

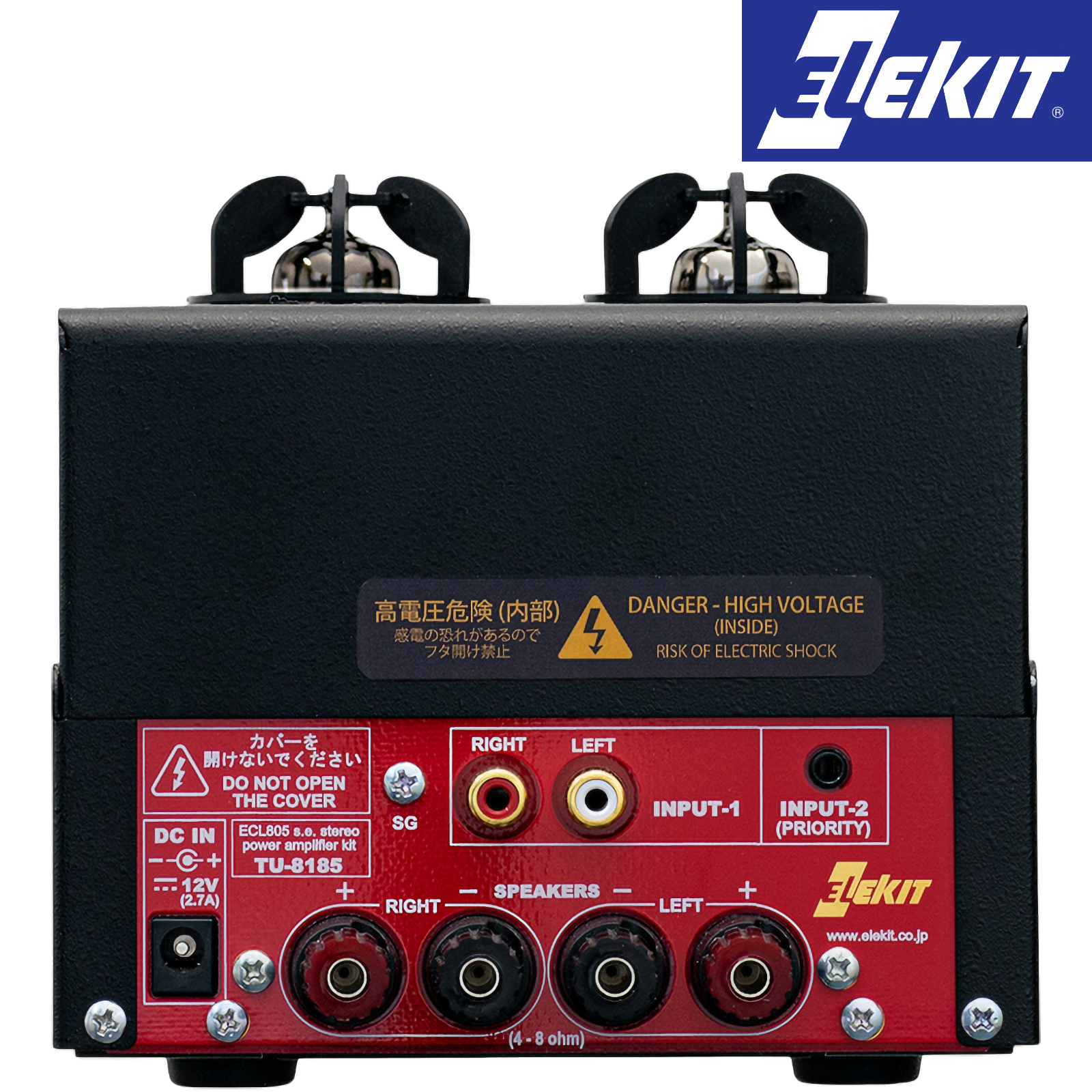

Input terminal: RCA jack stereo x 1, stereo mini jack (3.5mm) x 1
Output terminal: Speaker output: Binding terminal ( Banana plug compatible )
Headphone output: Stereo mini jack ( 3.5mm )
Speaker impedance: 4 - 8 ohms
Headphone impedance: 8 - 600 ohms ( corresponds to high impedance headphones as well )
unbalanced, level adjustable by a jumper cap
Power voltage / current ( the amp ): 12V DC / approx.2.7A
AC adapter: Input : 100-240V AC, 50/60Hz
Output 12V DC, 50W type
Dimensions: W142 x H136 x D178mm ( incl. projections )
Weight: Approx. 1.8kg ( excl. AC adapter )
