Mains Transformer for Glasshouse 300BSE kit

Mains Transformer for Glasshouse 300BSE kit

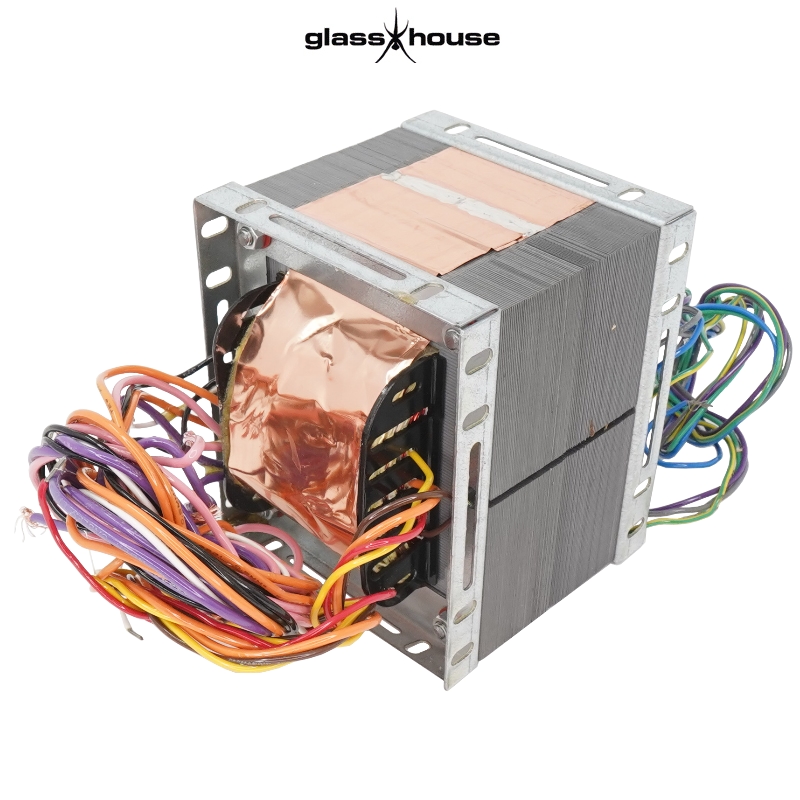

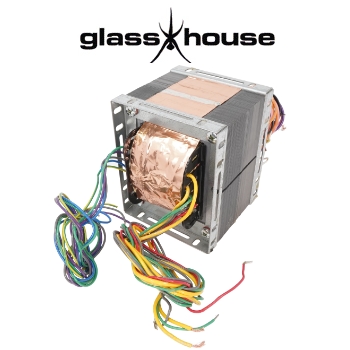

Although we no longer sell the entire Glasshouse 300BSE kit, we do sell the iron works for the kits, so you can scratch build the kit using your own chassis. Here we have the E/I mains transformer, sold in the open frame format with flying leads, built on a 120 size lamination on a 2.5 inch stack. The transformer comes with the faraday shield to provide reduced EMI noise. Can receive all different mains voltages, 110Vac, 120Vac, 220Vac, 230Vac and 240Vac

Primary winding:
No.1: 0V - 100V - 110V -120V (brown - red - orange - yellow)
No.2: 0V - 100V - 110V - 120V (green - violet - grey - blue)

Secondary winding:
440V - 0V - 440V, 200mA (black - white - black)
155V - 0V - 155V, 50mA (grey - red - grey)
0V - 9V, 2A (supplies DC heater voltage for EF86, 5687 on L channel) (orange - orange)
0V - 9V, 2A (supplies DC heater voltage for EF86, 5687 on R channel) (green - green)
0V - 8V, 3A (supplies DC filament voltage for 1 x 300B) (pink - pink)
0V - 8V, 3A (supplies DC filament voltage for 1 x 300B) (yellow - yellow)
0V - 5V, 3A (supplies AC filament voltage for 1 x 5U4G) (violet - violet)

Overall size: type D9154
115mm (width including bobbin) x 118mm (height) x 100mm (depth)

Fixing holes:
rectangular centres are 64mm x 81mm, same for side fitting or stand up fitting

Price 1 off:
£180.00+vat+p&p
