Audio Note AN-CABLE-750 AN-ISIS LX168 Reference Copper Litz Speaker Cable

Audio Note Isis LX 168 Reference Copper Litz Speaker Cable

The recently introduced ISIS Reference Copper interconnect cables have been an enormous success with Audio Note, redefining many listeners’ expectations of what was possible with a copper cable.

This is a true Reference Copper loudspeaker cable offering a high performance and superb sound.

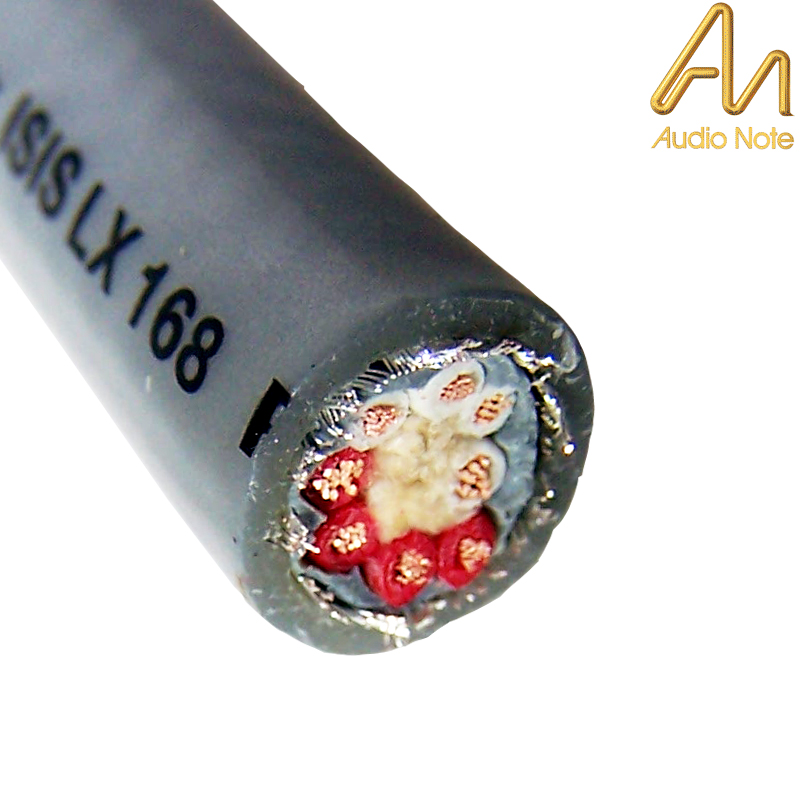

Each run of cable has an external diameter of 10mm, beneath the outer grey insulation you have a screen then more insulation and then 8 conductors, 4 are red insulated and 4 are white insulated arranged in a circular path with a centrally located fibre filler. For each conductor the external diameter is 1.9mm. If you look closely at the internal picture, link below, you will see that each set of 4 conductors is made up of differing sizes of internal wire strands. This configuration offers an outstanding performance. There are 168 strands of 6N copper Litz cable in total.

The ISIS Reference range includes the interconnect cable and mains cable.

It can be configured in many ways:

Single Cable / Single Wire
This configuration uses a single run of ISIS LX168 per side (between amplifier and loudspeaker) and is terminated as a single wire cable (a pair of connectors, ‘plus’ and ‘minus’ at each end of the cable)

Single Cable / Bi-Wire
This configuration uses a single run of ISIS LX168 per side (between amplifier and loudspeaker) and is terminated as a bi-wire cable (a pair of connectors, ‘plus’ and ‘minus’ at the amplifier end and two pairs of connectors at the loudspeaker end)

Twin Cable / Single Wire
This configuration uses a two runs of ISIS LX168 per side (between amplifier and loudspeaker) and is terminated as a single wire cable (a single connector at each end of the cable)

Twin Cable / Bi-Wire
This configuration uses two runs of ISIS LX168 per side (between amplifier and loudspeaker) and is terminated as a bi-wire cable (a single connector at the amplifier end and a pair of connectors at the loudspeaker end)

Quad Cable / Bi-Wire
This configuration uses a four runs of ISIS LX168 per side (between amplifier and loudspeaker) and is terminated as a full bi-wire cable (a single connector at each end of the cable) This offers the ultimate in Reference Copper loudspeaker cable performance.

Sold in multiples of 0.5 metre (mono, for one speaker), supplied in one continous length.

PRICE, 0.5m length

£169.40+vat+p&p
