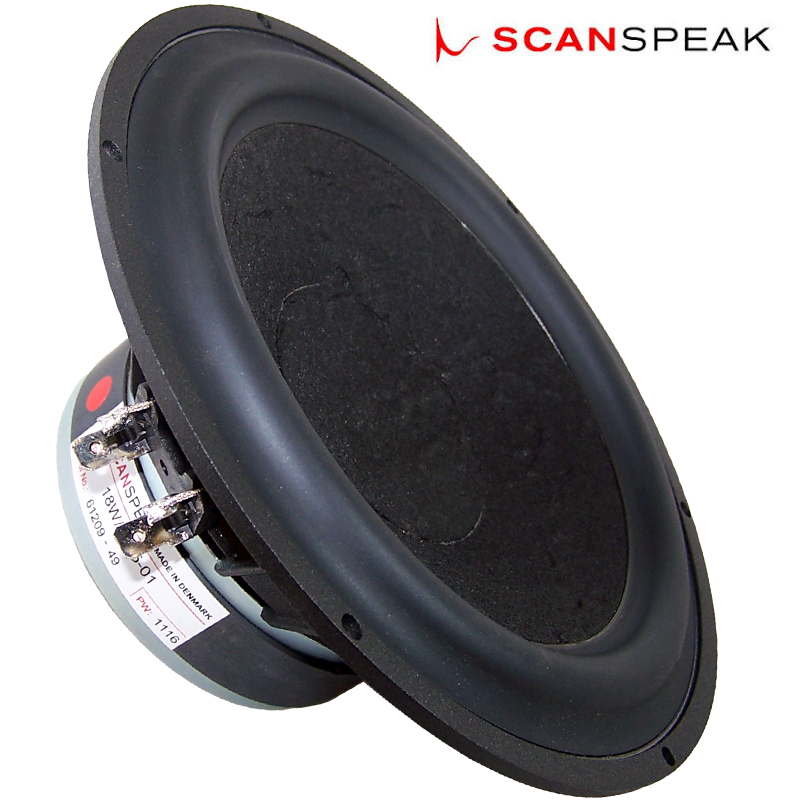

ScanSpeak 18W, 8535-01 MidWoofer - Classic Range

ScanSpeak 18W, 8535-01 MidWoofer - Classic Range

This unit is an improved version of the highly praised 18W/8535-00 midwoofer, where a new aluminum chassis and an updated cone as wells as a few other details are introduced, these updates improves mechanical stability and sound performance. Highquality magnet system design with patented Symmetric Drive(SD-1) continues to be key feature.

This is the replacement for the 18W, 8535-00 Driver.

Specification:

  • Resonance frequency [fs] 25 Hz
  • Mechanical Q factor [Qms] 2.10
  • Electrical Q factor [Qes] 0.46
  • Total Q factor [Qts] 0.38
  • Force factor [Bl] 5.9 Tm
  • Mechanical resistance [Rms] 1.35 kg/s
  • Moving mass [Mms] 17.2 g
  • Compliance [Cms] 2.30 mm/N
  • Effective diaph. diameter [D] 136 mm
  • Effective piston area [Sd] 145 cm²
  • Equivalent volume [Vas] 68.9 l
  • Sensitivity (2.83V/1m) 87.2 dB
  • Ratio Bl/√Re 2.44 N/√W
  • Ratio fs/Qts 67.4 Hz

Electrical Data:

  • Nominal impedance [Zn] 8 Ω
  • Minimum impedance [Zmin] 6.8 Ω
  • Maximum impedance [Zo] 32.0 Ω
  • DC resistance [Re] 5.85 Ω
  • Voice coil inductance [Le] 0.33 mH

Power Handling:

  • 100h RMS noise test (IEC 17.1) 70 W
  • Long-term max power (IEC 17.3) 190 W

Voice Coil & Magnet Data:

  • Voice coil diameter 38 mm
  • Voice coil height 15 mm
  • Voice coil layers 2
  • Height of gap 5 mm
  • Linear excursion ± 5 mm
  • Max mech. excursion ± 10 mm
  • Unit weight 1.1 kg

Price: (1off)
£122.89 +vat +p&p
