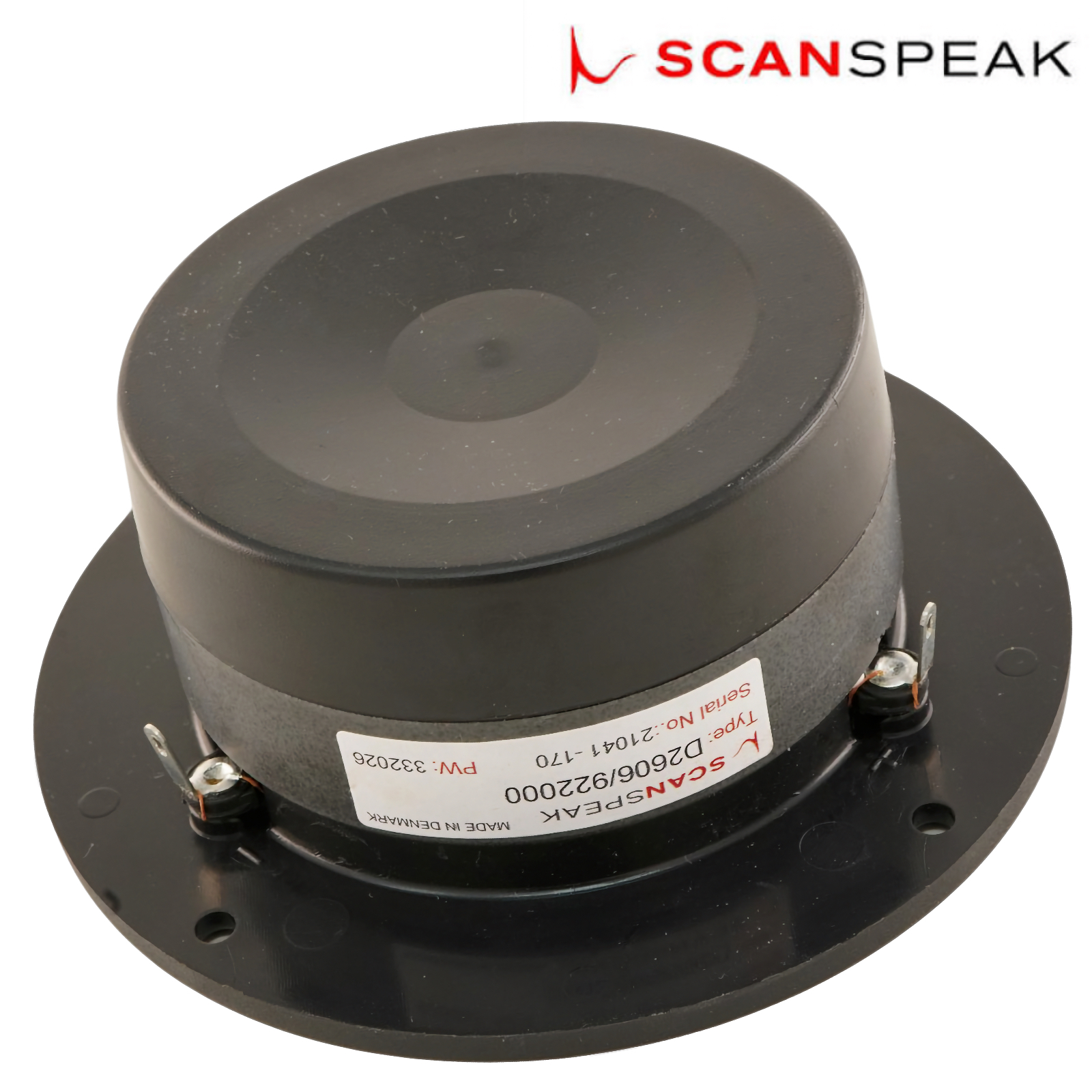

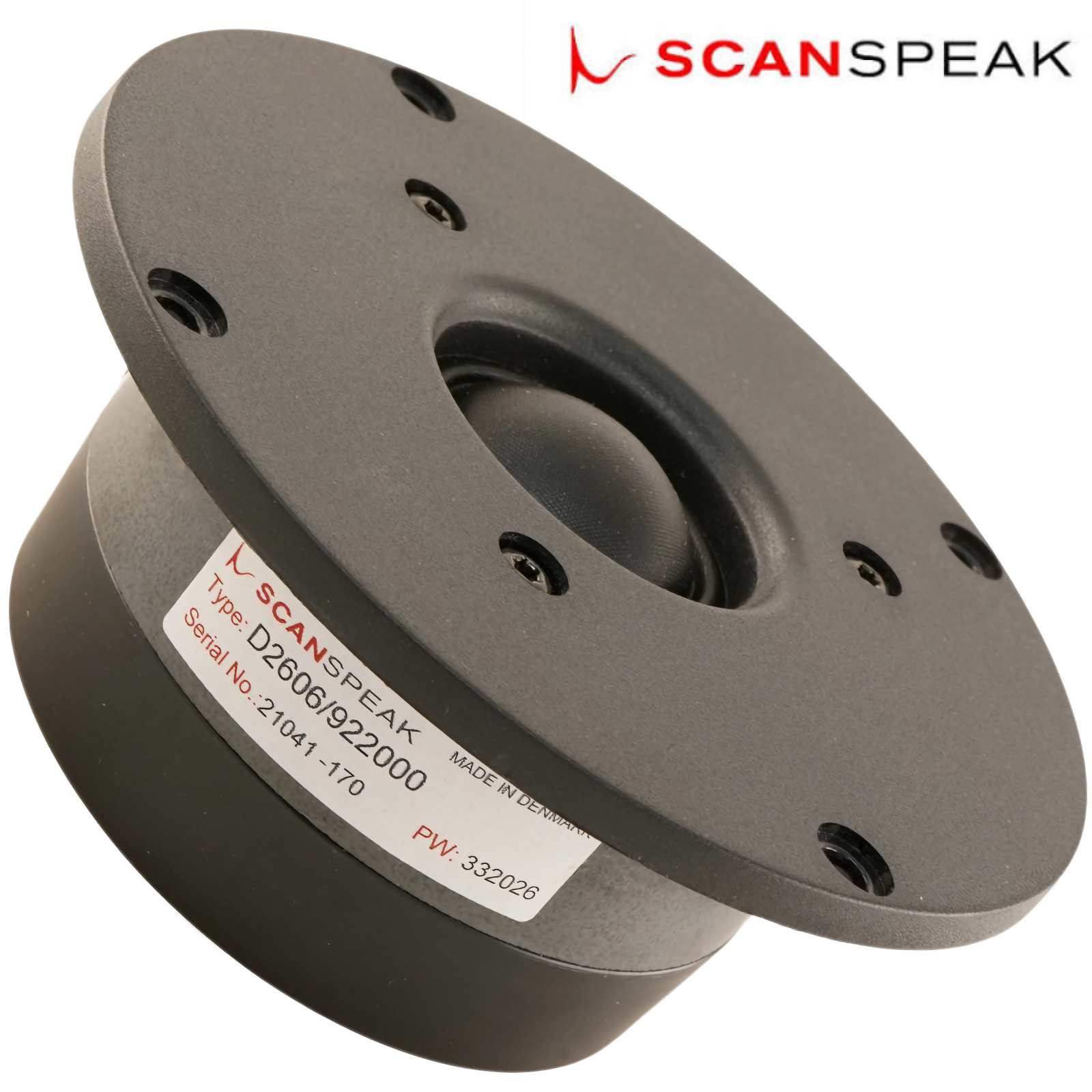

ScanSpeak D2606, 922000 Tweeter - Discovery Range

The D2606/922000 is a 1" coated textile dome tweeter from Scanspeak's Discovery range, a series that brings Scan-Speak's Danish engineering to an accessible price point. A damped double rear chamber lowers resonance to 850 Hz, allowing a crossover point as low as 2.5 kHz. Low-damping ferrofluid in the voice coil gap provides cooling and thermal stability without dulling transient response.

With 91.5 dB sensitivity, 100 W power handling and a neutral 104 mm faceplate, it suits new two-way builds and is a direct replacement for the Vifa D27TG-35-06, including in several PMC monitors.

Key Features

• High-performance 1" (26 mm) coated textile dome

• Double chamber design for low resonance

• Low-damping ferrofluid cooling for high stability

• Braided tinsel leads

• Neutral faceplate design

Specifications

• Nominal impedance: 6 Ω

• DC resistance (Re): 4.6 Ω

• Minimum impedance: 5.4 Ω

• Maximum impedance: 9.8 Ω

• Resonance frequency (Fs): 850 Hz

• Sensitivity (2.83 V/1 m): 91.5 dB

• Power handling (IEC 18.4, 100 h RMS): 100 W

• Long-term max power (IEC 18.2): 225 W

• Recommended operating range: 2,500 – 20,000 Hz

• Suggested crossover: 2nd-order high-pass Butterworth, 2.5 kHz

• Qms / Qes / Qts: 1.22 / 1.07 / 0.57

• Force factor (Bl): 2.8 Tm

• Moving mass (Mms): 0.33 g

• Compliance (Cms): 0.11 mm/N

• Equivalent volume (Vas): 0.01 l

• Effective diaphragm diameter: 30 mm

• Effective piston area (Sd): 7.1 cm²

• Voice coil diameter: 26 mm

• Voice coil inductance (Le): 0.04 mH

• Linear excursion: ±0.2 mm

• Max mechanical excursion: ±1.6 mm

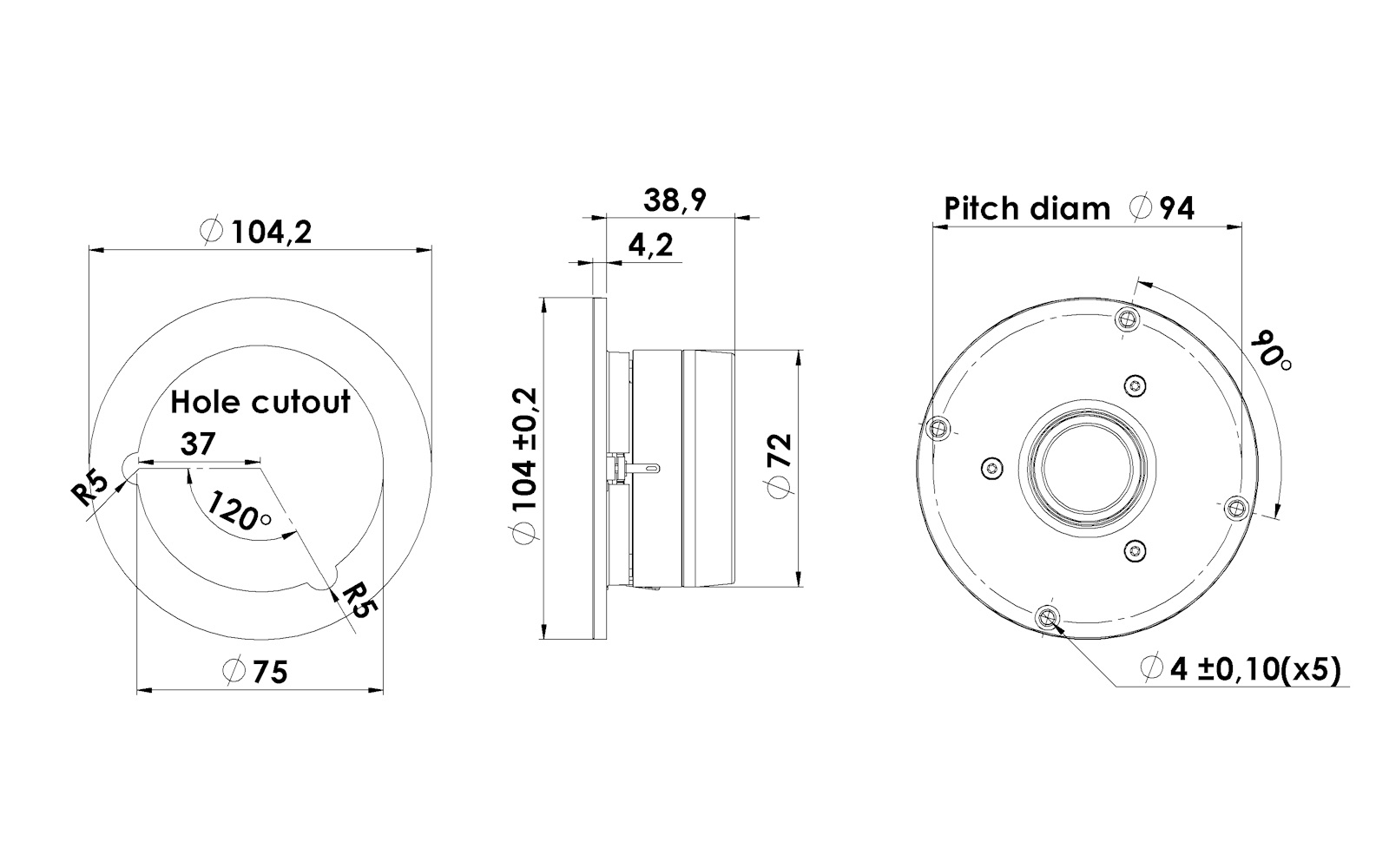

• Faceplate diameter: 104.2 mm

• Cutout diameter: 75 mm

• Mounting depth: 38.9 mm

• Fixing holes: 4 × Ø4 mm on 94 mm pitch circle

PRICE (1 off)
£42.38 +vat +p&p
