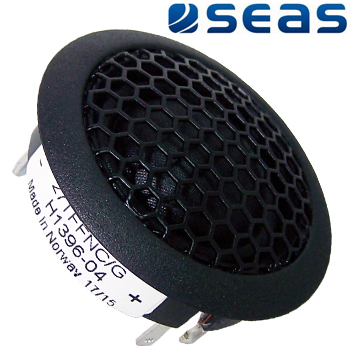

Seas 27TFFNC/G Tweeter, H1396-04

Seas 27TFFNC/G Tweeter, H1396-04

Compact design neodymium magnet tweeter for high-quality speaker designs in small cabinets or automobiles. Sonolex precoated lightweight fabric diaphragm and suspension allow for very tight production tolerances and high consistency. Wide roll surrounds together with a double chamber magnet system results in a low fundamental frequency. Very low magnetic stray fields make this unit suitable for A/V systems. The voice coil is immersed in magnetic fluid, allowing high power handling capacity and a simplified crossover design.

Specification:

  • Nominal Impedance: 4 Ohms
  • Recommended Frequency Range: 2500 - 30000 Hz
  • Short Term Power Handling: 200W
  • Long Term Power Handling: 80W
  • Characteristic Sensitivity 91 dB
  • Voice Coil Diameter: 26mm
  • Voice Coil Height: 1.1mm
  • Air Gap Height: 2.0mm
  • Linear Coil Travel (p-p): 0.9mm
  • Voice Coil Resistance: 2.7 Ohms
  • Voice Coil Inductance: 0.03 mH
  • Force Factor 1.9 N/A
  • Free Air Resonance: 1170 Hz
  • Moving Mass: 0.26g
  • Effective Piston Area: 7.5cm2
  • Magnetic Gap Flux Density: 1.2T
  • Magnet Weight: 0.01 kg
  • Total Weight: 0.1 kg

PRICE (1 off)
£31.90 +vat+p&p



PDF datasheet
