ScanSpeak D7608/920010 MidWoofer - Discovery Range

Click to Zoom

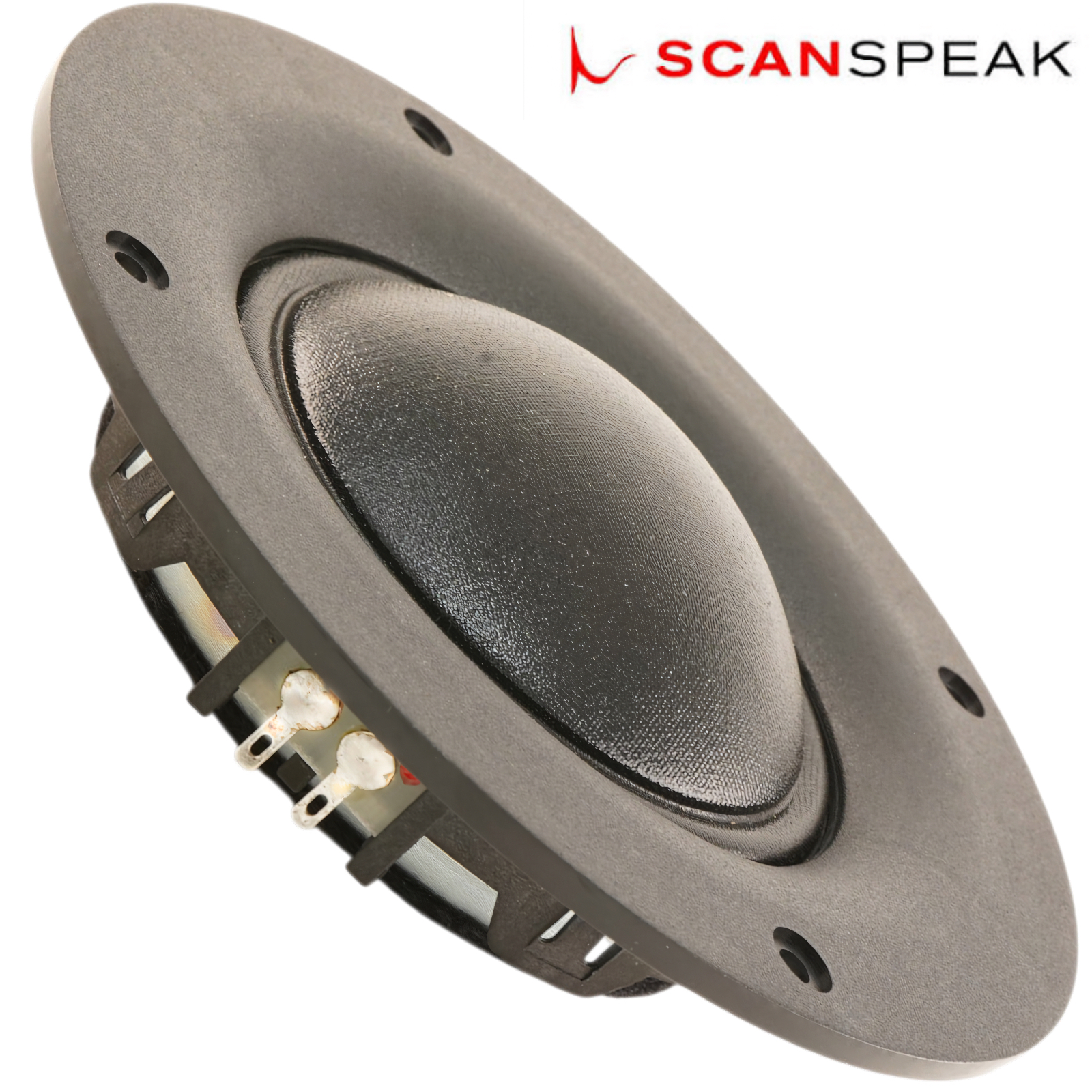

The Scan-Speak D7608/920010 is a high-output, 76mm soft-dome midrange driver from the Discovery Series. It is a direct replacement for the Vifa D75MX-41/08 and is designed for front mounting.

Its lightweight textile diaphragm provides fast transient response, low distortion and smooth, natural midrange reproduction. Wide dispersion, 92dB sensitivity and a protective internal grille make it well suited to premium three-way loudspeaker systems and restoration projects.

Highlights

  • Direct replacement for the Vifa D75MX-41/08

  • High 92dB sensitivity

  • Fast transient response from its low moving mass

  • Wide sound dispersion

  • Low-distortion textile dome

  • Internal ferrite magnet system

  • Protective internal dome grille

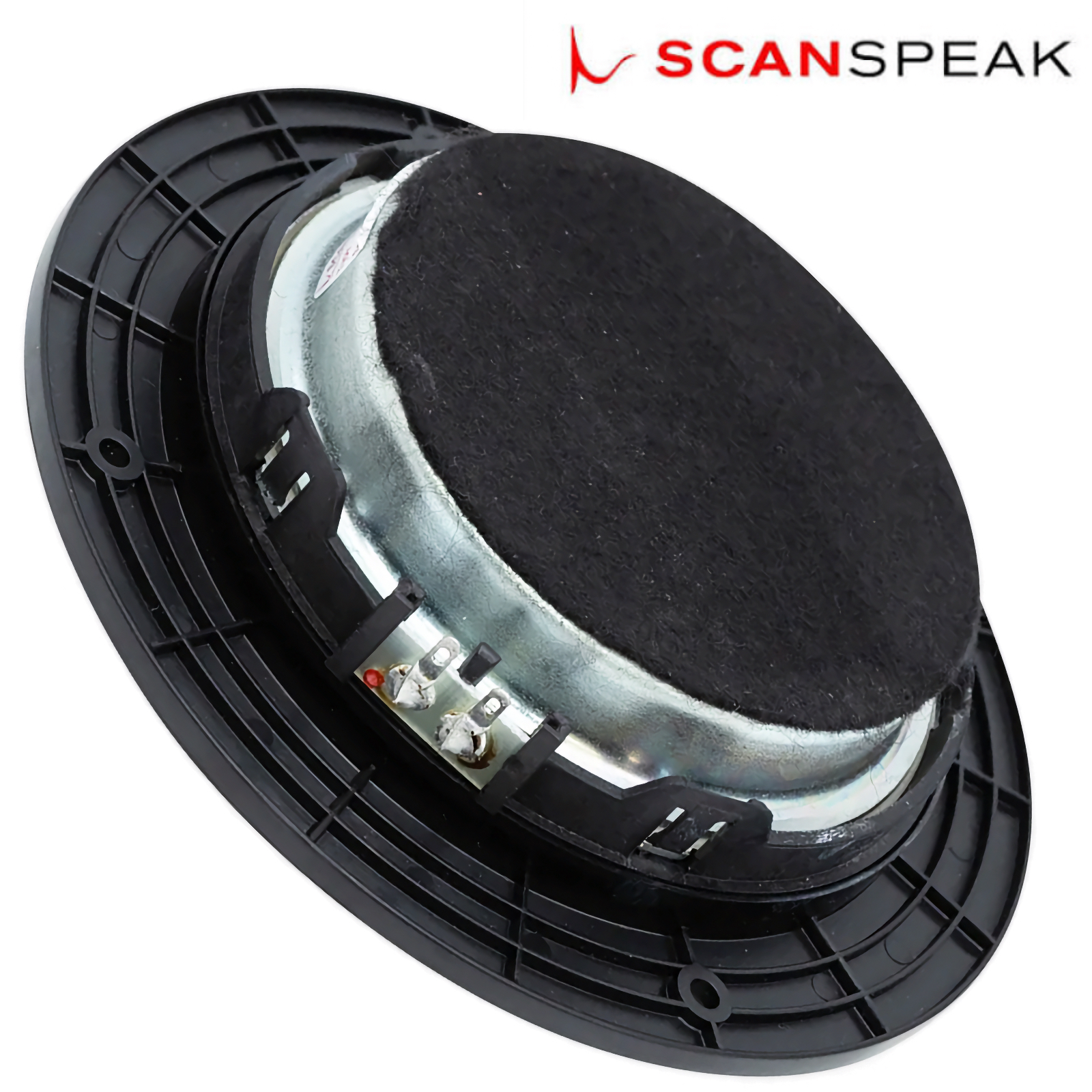

  • Vented, open-back construction

  • Designed for front mounting

Technical Specifications

  • Driver type: Soft-dome midrange

  • Dome diameter: 76mm

  • Nominal impedance: 8Ω

  • Minimum impedance: 6.2Ω

  • Maximum impedance: 25.6Ω

  • Sensitivity: 92dB (2.83V/1m)

  • Typical frequency range: 500Hz-7kHz

  • Free-air resonance (Fs): 300Hz

  • DC resistance (Re): 5.7Ω

  • Voice-coil inductance (Le): 0.13mH

  • Mechanical Q factor (Qms): 7.75

  • Electrical Q factor (Qes): 2.22

  • Total Q factor (Qts): 1.73

  • Force factor (BL): 4.7Tm

  • Mechanical resistance (Rms): 0.80kg/s

  • Moving mass (Mms): 3.3g

  • Suspension compliance (Cms): 0.09mm/N

  • Effective diaphragm diameter: 84mm

  • Effective piston area (Sd): 55cm²

  • Equivalent volume (Vas): 0.36L

Voice-Coil and Mechanical Specifications

  • Voice-coil diameter: 76mm

  • Voice-coil height: 2.9mm

  • Voice-coil layers: 2

  • Magnetic gap height: 2mm

  • Linear excursion: ±0.4mm

  • Maximum mechanical excursion: ±1.5mm

  • Unit weight: 0.6kg

Physical Dimensions

  • Faceplate diameter: 152mm

  • Mounting depth: 39.3mm

  • Nominal baffle cut-out: Approximately 115mm

Power Handling

  • RMS power handling: 80W

  • Power-test filter: Second-order high-pass Butterworth at 500Hz

Installation

  • Mounting: Front mounting

  • Rear configuration: Vented/open back

  • Enclosure: A dedicated rear chamber is recommended

  • Suggested chamber volume: Approximately 2L

PRICE (1 off)
£84.00 +vat +p&p

Big Picture

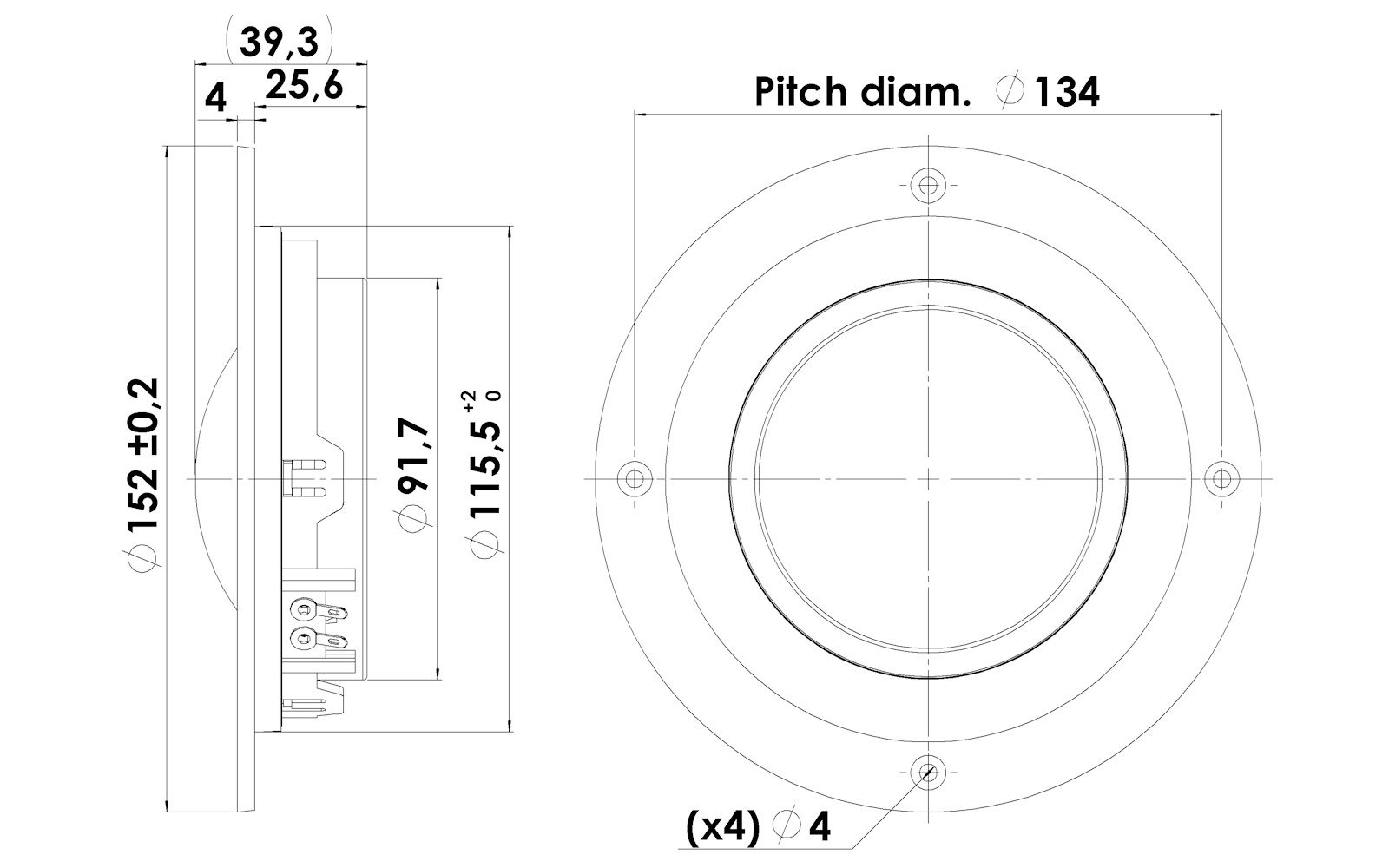

ScanSpeak D7608 Drawing142.13 KB
PDF datasheet
ScanSpeak D7608 Datasheet234.92 KB
