Neotech NEI-3001G Graphene G-UPOCC Copper Interconnect Cable

Neotech NEI-3001G is a balanced interconnect cable incorporating 4 G-UPOCC copper conductors, 99.99998% pure. It benefits from a top-of-the-range design with two single-core and two multi-strand conductors. In addition, graphene is used to greatly improve the conductivity of this cable's G-UPOCC copper conductors.

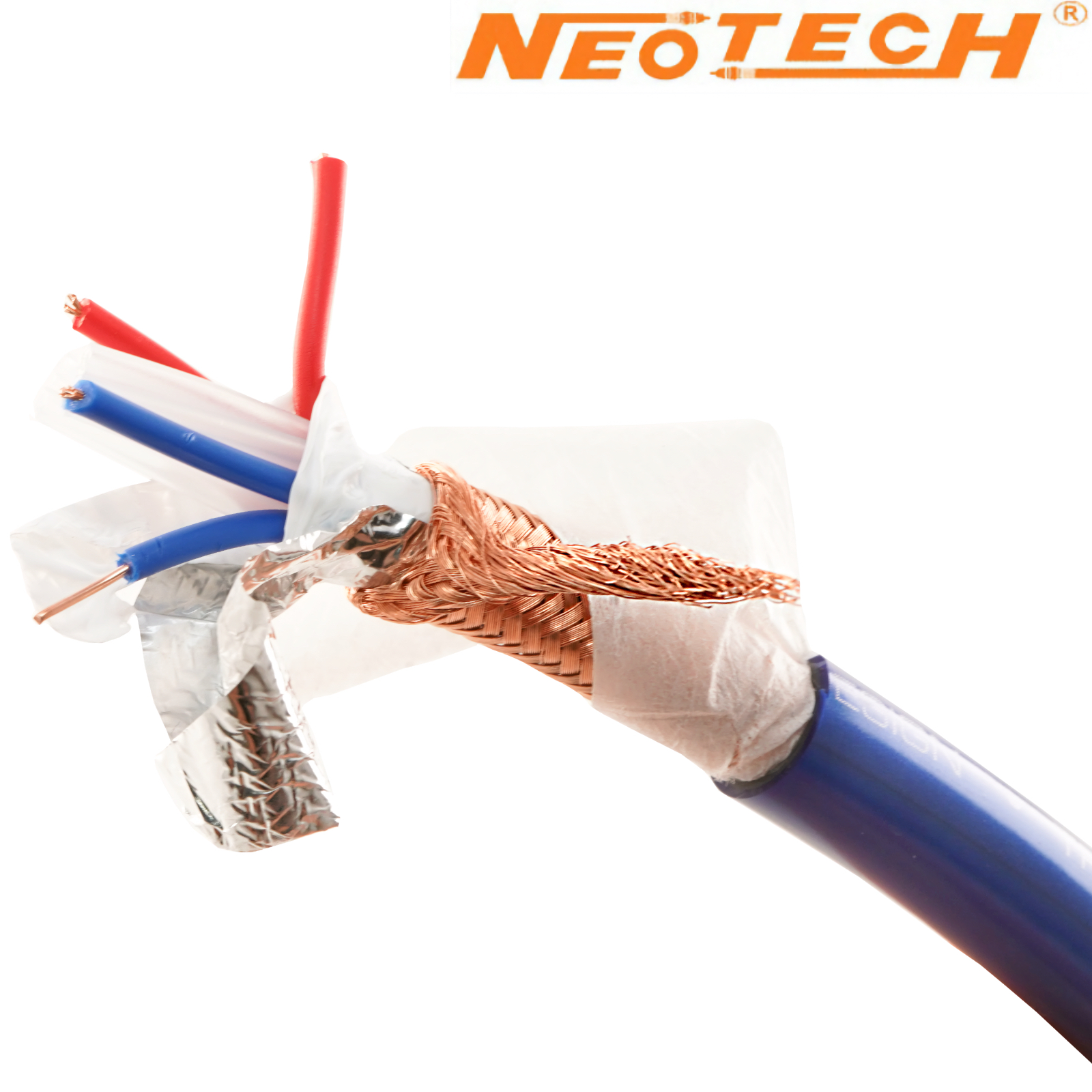

Dielectric insulators are a clever mix of alternating polyethylene (PE) air tubes within a symmetrical design. This design minimises capacitance effects. The PE conductors and tubes are held in place by PTFE insulating tape, preventing the transmission of electrical and static discharges created by the double Mylar/aluminium shielding and OCC copper foil. The whole assembly is encased in a sheet of paper with cotton fibres for mechanical strength, then covered with a robust, flexible PVC sheath.

Specifications:

  • External diameter: 10.5mm
  • Conductor material: UP-OCC copper with graphene (G-UPOCC)
  • Conductors: 2 x single-core conductors & 2 x multi-strand conductors
    • Conductor Gauge: Each pole has 1 x 22 AWG (0.76mm) 1 x 22 AWG (0.76mm) multi-gauge stranded conductors
  • Insulation: 5 polyethylene tubes, PTFE tape & PVC outer sheath
  • Shielding: Mylar aluminium foil, OCC braided copper foil & Textile paper

RCA wiring:
RCA Plug at the pre-amplifier end: screen + blue conductors to RCA earth. Red conductors to RCA signal.
RCA Plug at the amplifier end: blue conductors - RCA earth (screen cut short, not connected). Red conductors to RCA signal.

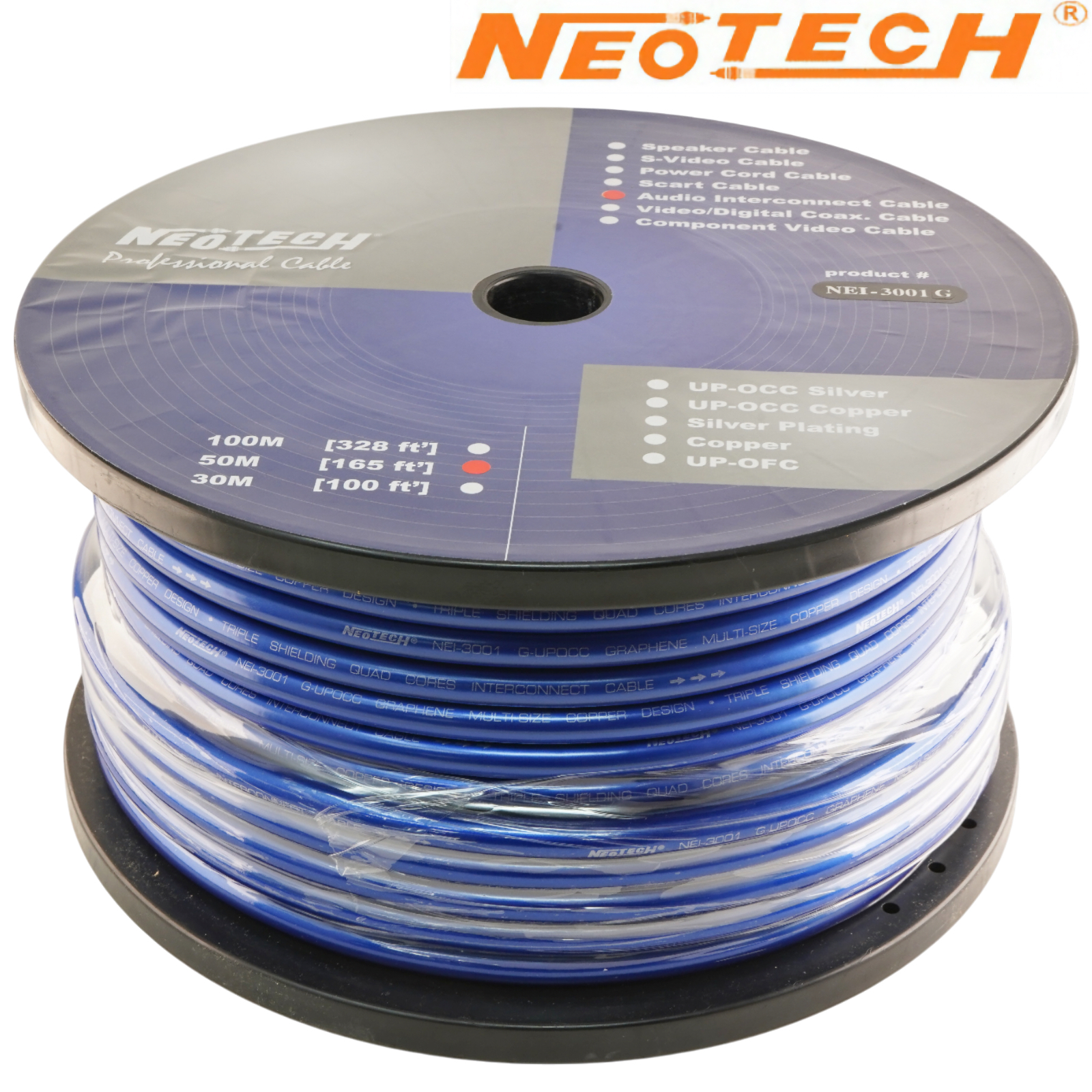

Sold by the mono metre, supplied in continuous lengths. So for a 1m stereo interconnect cable you will need 2 metres.

PRICE (1 metre)
£33.60 +vat +p&p
