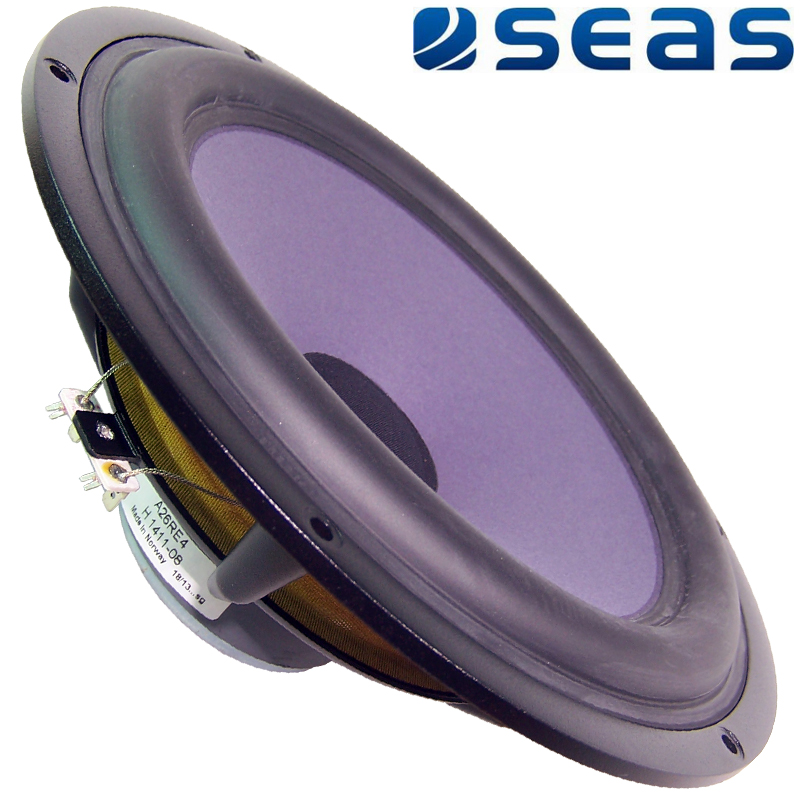

Seas A26RE4 Woofer, H1411-08 - Prestige Series

Seas A26RE4 Woofer, H1411-08 - Prestige Series

Classical paper cones and matching natural rubber surround produce a well-behaved roll-off characteristic and reduce potential resonance problems. 1.5” diameter high-temperature voice coil with black anodized aluminium coil former gives high power handling and reduced power compression. Four layer voice coil provides a well-behaved roll-off characteristic. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise, and cavity resonance to a minimum.

Specification:

  • Nominal Impedance: 8 Ohms
  • Recommended Frequency Range: 20 - 1500 Hz
  • Short Term Power Handling: 300W
  • Long Term Power Handling: 80W
  • Characteristic Sensitivity (2,83V, 1m): 89dB
  • Voice Coil Diameter: 39mm
  • Voice Coil Height: 14mm
  • Air Gap Height: 6mm
  • Linear Coil Travel (p-p): 8mm
  • Maximum Coil Travel (p-p): 35mm
  • Magnetic Gap Flux Density: 0.72 T
  • Magnet Weight: 1.10kg
  • Total Weight: 2.10kg
  • Voice Coil Resistance: 6.3Ohms
  • Voice Coil Inductance: 3.8mH
  • Force Factor 9.7 N/A
  • Free Air Resonance: 25 Hz
  • Moving Mass: 37.4g
  • Air Load Mass In IEC Baffle: 3.80g
  • Suspension Compliance: 1.1mm/N
  • Suspension Mechanical Resistance: 1.69Ns/m
  • Effective Piston Area: 350cm2
  • VAS: 169 Litres
  • QMS: 3.84
  • QES: 0.43
  • QTS: 0.39
  • 25F-EW replacement

PRICE (1 off)
£131.60 +vat+p&p



Big Picture
A26RE4 Woofer362.67 KB
