Seas L18RCY/P Woofer, H1085-08 - Prestige Series

Seas L18RCY/P Woofer, H1085-08 - Prestige Series

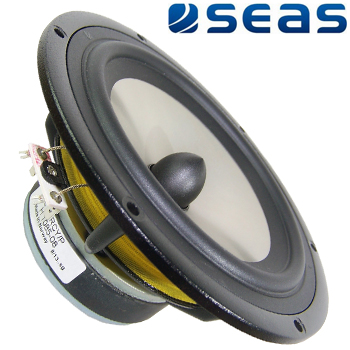

L18RCY/P is a 6.5” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs.

Stiff, yet light aluminium cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones.

High-temperature voice coil wound on an aluminium voice coil former gives a high power handling capacity.

Phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity.

Large magnet system provides high efficiency and low Q.

Specification:

  • Nominal Impedance: 8 Ohms
  • Recommended Frequency Range: 35 - 2500 Hz
  • Short Term Power Handling: 250 W
  • Long Term Power Handling: 80 W
  • Characteristic Sensitivity (2.83V, 1m): 88 dB
  • Voice Coil Diameter: 26 mm
  • Voice Coil Height: 14 mm
  • Air Gap Height: 6 mm
  • Linear Coil Travel (p-p): 8 mm
  • Maximum Coil Travel (p-p): 16 mm
  • Magnetic Gap Flux Density: 1.25 T
  • Magnet Weight: 0.42 kg
  • Total Weight: 1.42 kg
  • Voice Coil Resistance: 5.6 Ohms
  • Voice Coil Inductance: 0.92 mH
  • Force Factor: 6.5 N/A
  • Free Air Resonance: 33 Hz
  • Moving Mass: 12.7 g
  • Air Load Mass In IEC Baffle: 0.81 g
  • Suspension Compliance: 1.8 mm/N
  • Suspension Mechanical Resistance: 1.39 Ns/m
  • Effective Piston Area: 125 cm2
  • VAS: 38 Litres
  • QMS: 2.01
  • QES: 0.37
  • QTS: 0.31



PRICE (1 off)
£75.30 +vat+p&p



Big Picture
PDF datasheet
