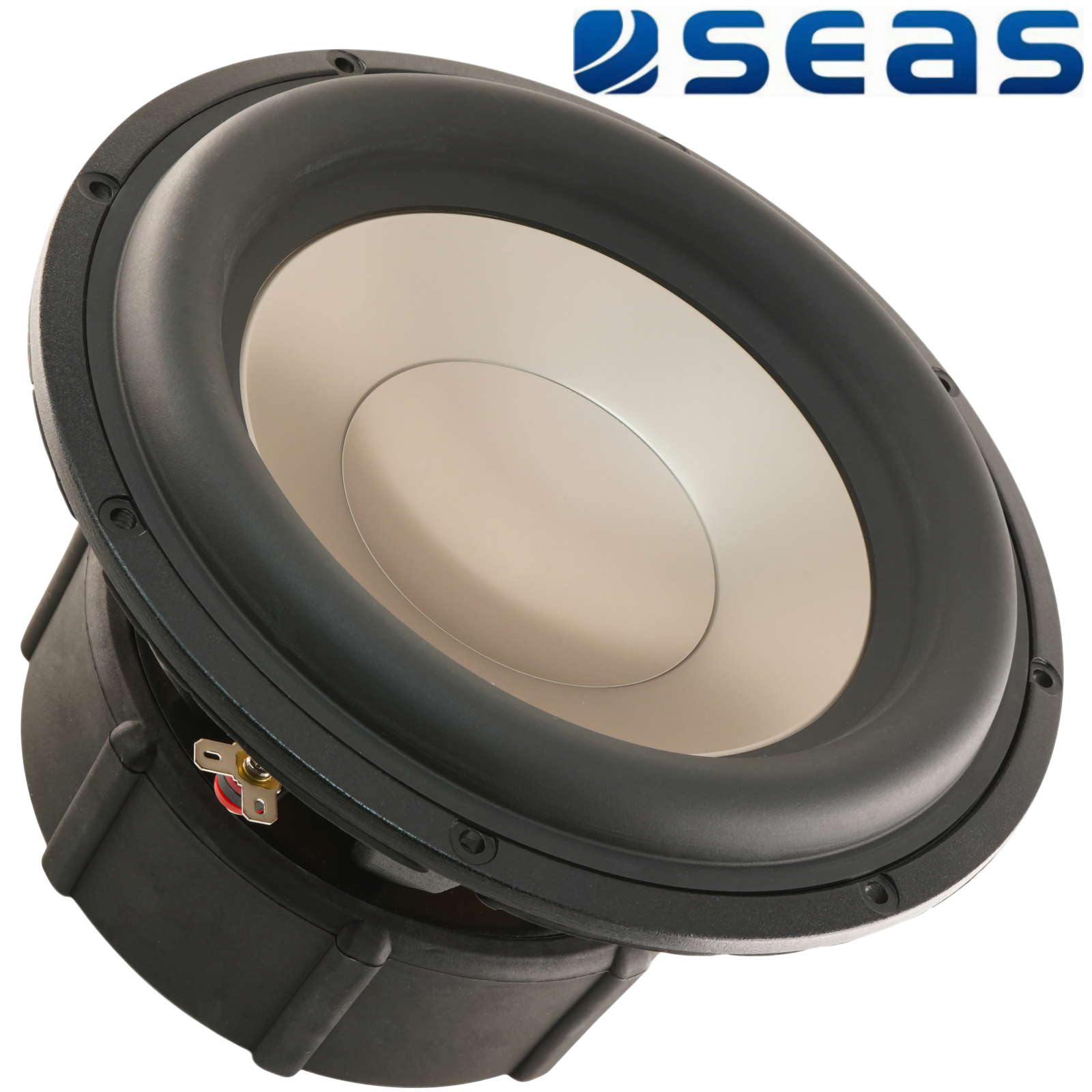

Seas L26ROY Woofer, D1001 - Design By Series

Seas L26ROY Woofer, D1001 - Design By Series

Extremely stiff and rigid aluminium cone gives tremendous bass precision.

The cone and the long throw low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones.

Lead-out wires are symmetrically stitched to the spider to avoid resonances.

Total suspension is designed to assure stability for extreme excursions. 2-layer, extremely long, high-temperature voice coil wound on a glass fibre voice coil former gives a high power handling capacity.

Cu-cap around the pole pieces reduce non-linear and modulation distortion and increase overload margin.

Extra-large magnet system provides high efficiency and low Q.

Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment.

Large windows in the basket both above and below the spider reduce sound reflection, air flow noise, and cavity resonance to a minimum.

Specification:

  • Nominal Impedance: 4 Ohms
  • Recommended Frequency Range: 20-1000 Hz
  • Short Term Power Handling: 500 W
  • Long Term Power Handling: 230 W
  • Characteristic Sensitivity (2,83V, 1m): 88.0 dB
  • Voice Coil Diameter: 56 mm
  • Voice Coil Height: 38 mm
  • Air Gap Height: 10 mm
  • Linear Coil Travel (p-p): 28 mm
  • Maximum Coil Travel (p-p): 56 mm
  • Magnetic Gap Flux Density: 1.2 T
  • Magnet Weight: 2.34 kg
  • Total Weight: 10 kg
  • Voice Coil Resistance: 3.1 Ohms
  • Voice Coil Inductance: 0.53 mH
  •  Force Factor: 12 N/A
  • Free Air Resonance: 22 Hz
  • Moving Mass: 107 g
  • Air Load Mass In IEC Baffle: 4.0 g
  • Suspension Compliance: 0.5 mm/N
  • Suspension Mechanical Resistance: 3.7 Ns/m
  • Effective Piston Area: 363 cm2
  • VAS: 87 Litres
  • QMS: 4.14
  • QES: 0.33
  • QTS: 0.31

PRICE (1 off)
£281.70+vat+p&p



PDF datasheet
